“Dad's Truck”2002 Ford Excursion

72 photos documented since 2005 5 years documented ♡ Follow this build

The story

SOLD! at 110K See 2005 2002 X PSD Limited Ult. "V" Code Front Springs, Rancho RSXs on Front,9000s @ 2/9 on rear. Revised (Timbren) Bump stops,AirLift Rear Bags with 5 Gal. surge tank ,Ford 30mm Rear Bar,ART Rotors and Pads, Ford AIS Intake,Tank and Pre-Pump Mods,3 SPA Dual Gauges W/home grown Turbo saver, SCMT,60HP installed, Ultra-Start 2250 Alarm/Remote Start, BridgeStone 285/75-16AT(D range) Revos, Tekonsha Prodigy Controller,Catch All Linners, 400W Inverter — Bruce1954

Day one vs. today

Drag to compare 2005 against 2010.

2005 2010

Photo history

72 photos across 4 years — drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2005

46 photos added — showing 8

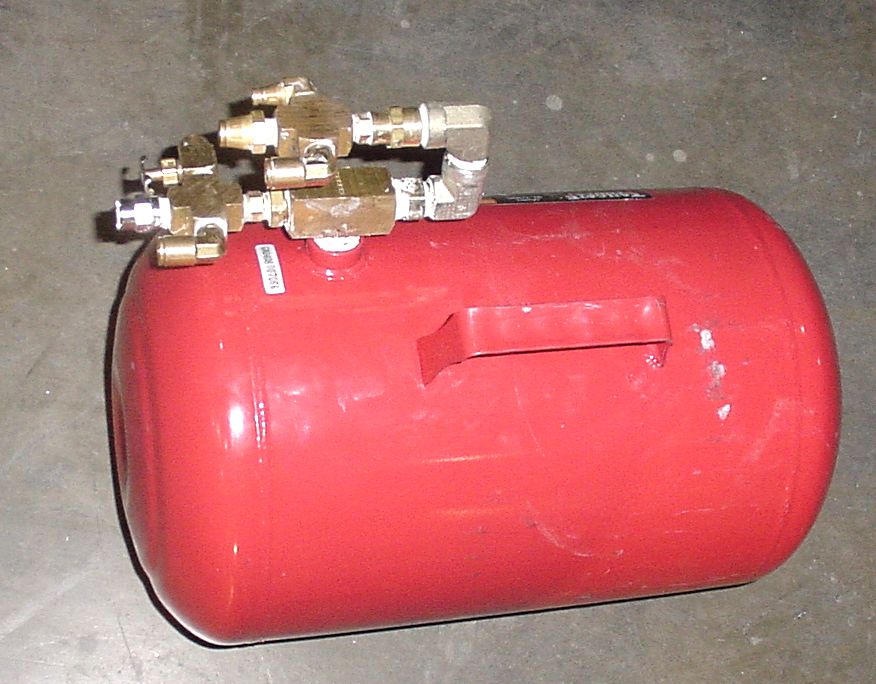

2002 Ford Excursion - Finnished tank assy ready for install

2002 Ford Excursion - Side View of Dual ported bag OE 1/8" port on bottom Added 1/4" port on top

2002 Ford Excursion - Close up of tank fittings

2002 Ford Excursion - Air spring bag installed on the rear axle of a vehicle.

2002 Ford Excursion - Close-up of an air tank and associated plumbing mounted beneath a vehicle.

2002 Ford Excursion - The studs were added so that a keeper bar could be used in place of the tab on the AIRLIFT lower bracket that was remove to provide room fo…

2002 Ford Excursion - Close up of Fittings

2006

4 photos added

2002 Ford Excursion - 2002 Ford Excursion shows damage to the front passenger side after an accident.

2002 Ford Excursion - A Ford Super Duty truck with front-end damage sits on the road next to another vehicle.

2002 Ford Excursion - This 2002 Ford Excursion sustained damage to its front passenger side, including a missing headlight.

2007

13 photos added — showing 8

2002 Ford Excursion - A gray 2002 Ford Excursion is parked outside a building with another vehicle in the background.

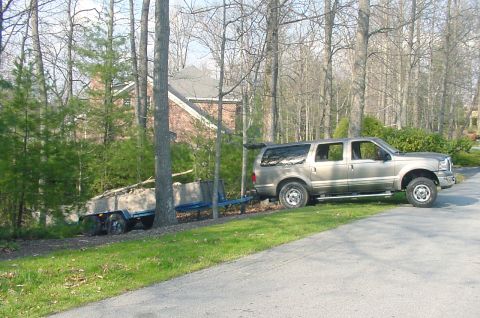

2002 Ford Excursion - Should have took a pict when it was about 100' down the hill! The only hard part was getting the truck over the hump and onto the grass lik…

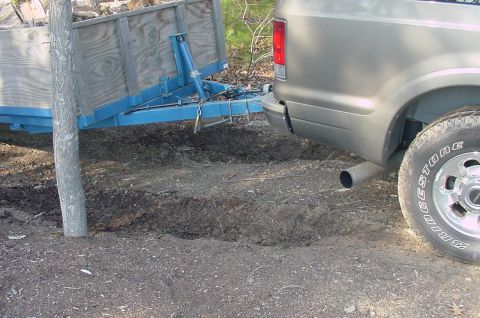

2002 Ford Excursion - Took a third try to get this rig up out of here but the X did fine. Third gear low range gave me a little speed for a bit of momentum

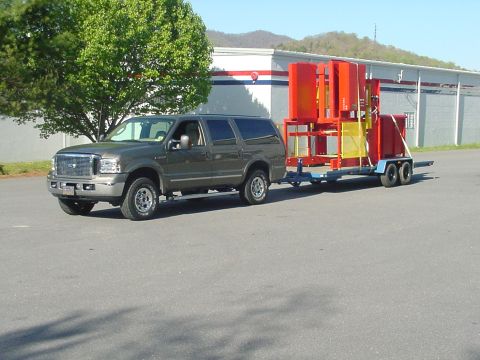

2002 Ford Excursion - Part of a sytem we sold to a local customer. It was to tall to put in a 53 footer

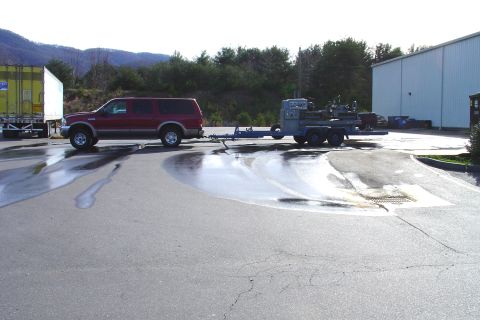

2002 Ford Excursion - Trailer is about 2400, the Lathe about 12,500 Also brought back a couple of 25HP motors with me on that trip just to make it worth wile. BT…

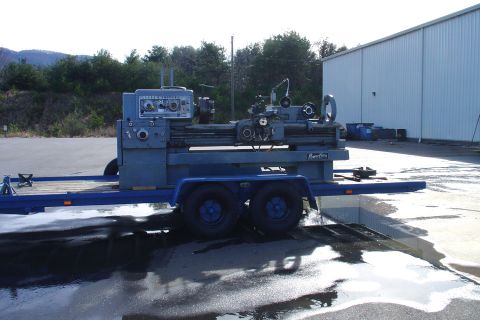

2002 Ford Excursion - A 60s model Lodge and Shipley with almost no hours on it. Runs like new.

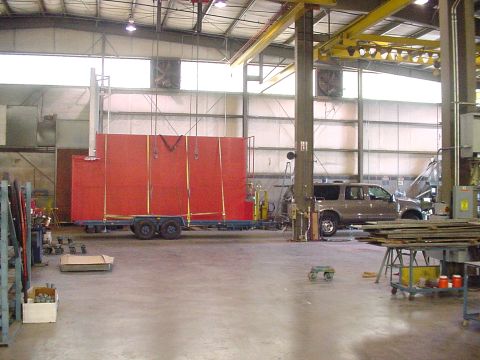

2002 Ford Excursion - A 10 by 20' part of the platform that went with the above, the rest of the system filled two 53 footers

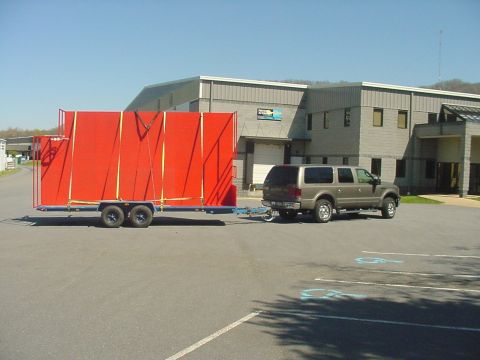

2002 Ford Excursion - A 2002 Ford Excursion is parked outside a building, attached to a large red trailer.

2010

7 photos added

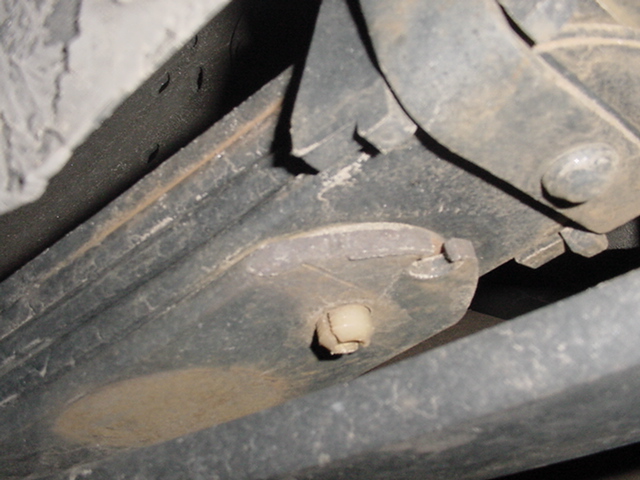

2002 Ford Excursion - Modified F Code Rear with ONE added X G code Leaf. Leaf Added is the third leaf up from the bottom. See other pictures on cutting off the t…

2002 Ford Excursion - Close up of sring pack behind tire right side

2002 Ford Excursion - Bottom of right side front of spring

2002 Ford Excursion - Left Side spring side shot

2002 Ford Excursion - Left side shot over all

2002 Ford Excursion - Another shot of the left spring

2002 Ford Excursion - OK this is the picture you need Note how the third leaf up from the bottom from the old G code pack was cut off right through the hole wher…
