1995 Ford Bronco “Red 95”
Home/ Registry/ Ford/ Bronco/ 1992–1996/ “Red 95” supermotors.net/registry/29158

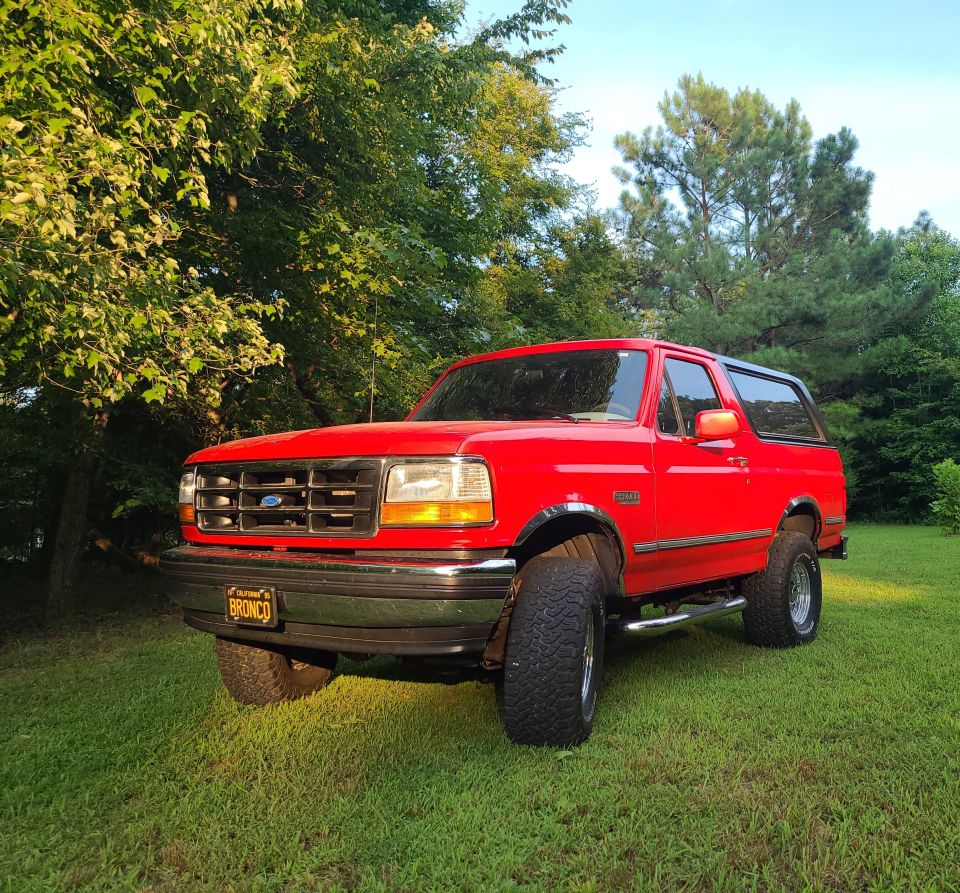

“Red 95”1995 Ford Bronco

140 photos documented since 2021 ♡ Follow this build

The story

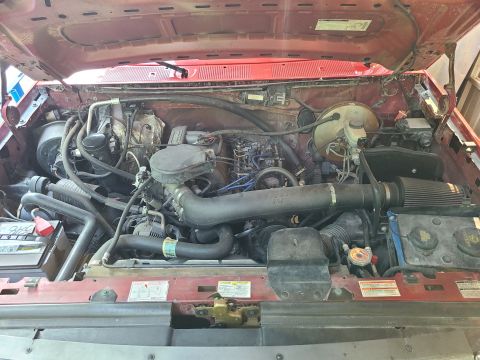

Opal aftermarket leather, gray aftermarket carpet. Bought from Vegas repainted, 3" body lift, 33" BFG ATTAKO2s (PSOM 8.64), hot air FIPK. Now with chrome wheels, Opal cloth front bench — RichScar

Photos

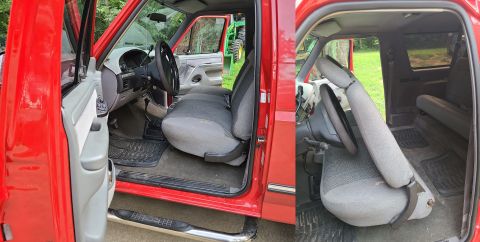

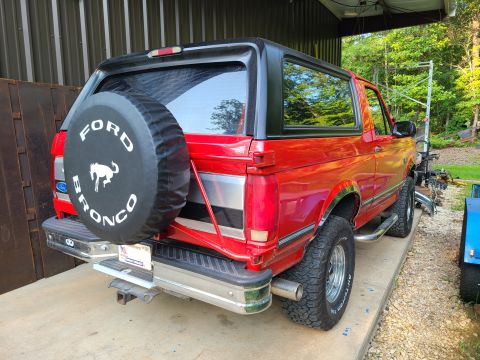

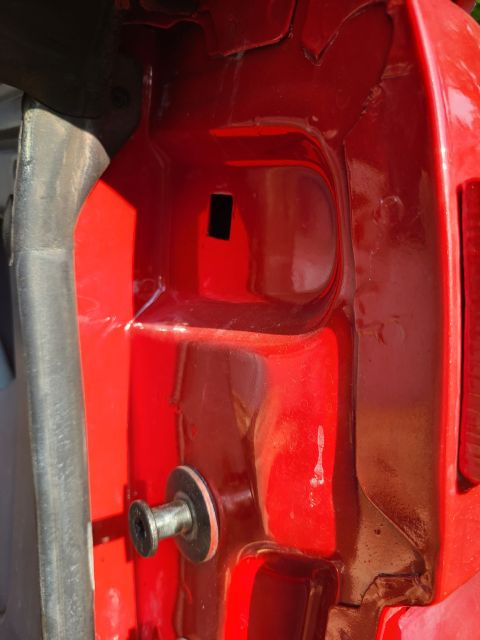

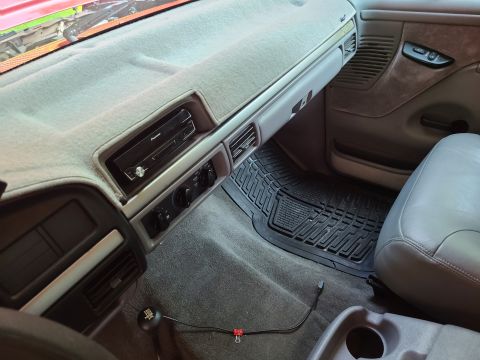

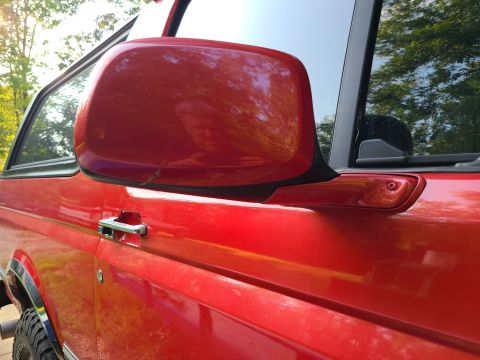

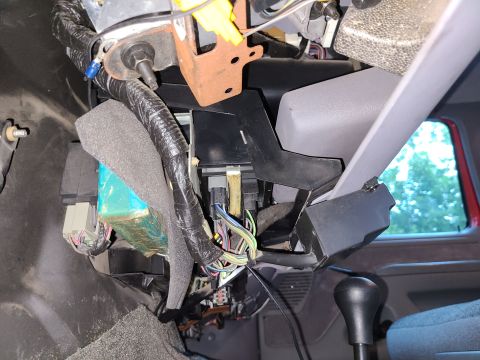

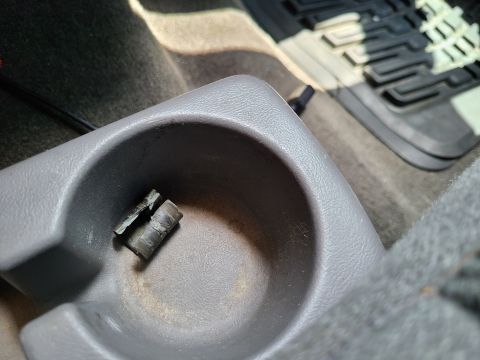

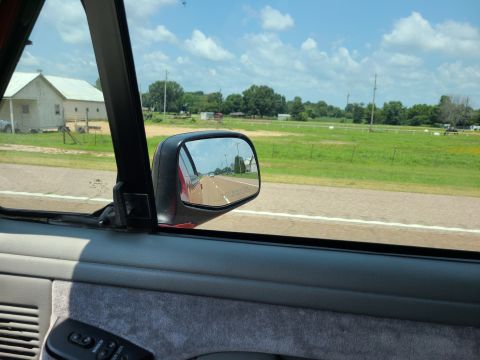

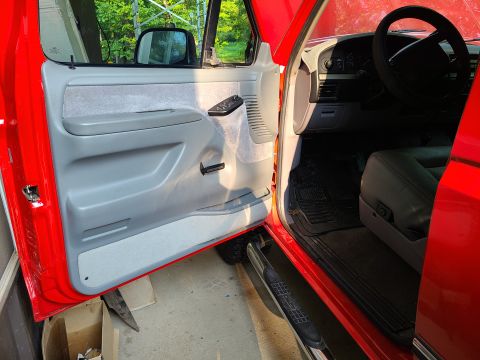

1995 Ford Bronco - Repainted Vermillion with fine pearl glitter M6517D Detailed inspection $300 (done) Read maintenance history paperwork $20 (done) ---------… 1995 Ford Bronco - Since the truck will be stored, the instructions in this TSB should be followed: [url=https://www.supermotors.net/registry/media/747761] ht… 1995 Ford Bronco - CoverLay door panels are the only new replacements available. The dash carpet is installed with adhesive velcro pads. An aftermarket steeri… 1995 Ford Bronco - The dash & (re-upholstered) pad appear perfect, other than the adhesive velcro for the carpet cover. Oddly, this truck has the old push-pul… 1995 Ford Bronco - The light blue is the airbag diagnostic module (ADM); the black one to its left (front) is the chime; to its right (rear) is the remote key… 1995 Ford Bronco - Both front doors' & the right t/g strike sleeve are missing. So are at least 4 of the rubber body plugs. Supply & install 4 used OE rubber… 1995 Ford Bronco - Right door mirror did not respond to the remote switch. After diagnosis, an unplugged connector was found pushed into the lower B-pillar in… 1995 Ford Bronco - The Opal cloth front bench seat from a '95 F150 has been installed, with its belt buckles, and 4 good headrest catches. The holes for the c… 1995 Ford Bronco - Transfer case shifter & boot have been butchered. Ford F2TZ-7277-A $37.20 plus tax *********** R&R boot (labor only) $30 *********** [url=h… 1995 Ford Bronco - The driver's vanity lamps are intermittent. As I removed & installed the lenses to check the bulbs, they'd go off & on. Both seem to be wor… 1995 Ford Bronco - Since it lacks the overhead console, this truck has the base (manual-dimming) rear view mirror. It does have the dual visor option, which u… 1995 Ford Bronco - The w/s trim was painted with the rest of the truck, but it has chipped, and been touched up. [url=https://www.supermotors.net/registry/med… 1995 Ford Bronco - Although the camper shell was repainted gloss black, some red body paint got on its rubber gaskets. And the original red shows in a few pla… 1995 Ford Bronco - The factory fuel cap tether is broken. Supply & install used OE tether $10 (not recommended) Supply & install new shorter Ford tether $15 S… 1995 Ford Bronco - The swingaway was also painted body color. There is no noticeable t/g rust outside or in. The bumper was raised badly to match the body lif… 1995 Ford Bronco - The aftermarket wheel arch mouldings, wheels, & body mouldings appear to have been installed properly. The tailpipe tip & bumpers have been… 1995 Ford Bronco - The right t/g strike sleeve & both front doors' sleeves are missing. So are at least 4 rubber body plugs, and the right door conduit isn't… 1995 Ford Bronco - The door mirror fronts & bases were painted with the body. This mirror's power connector was found unplugged inside the B-pillar. Supply &… 1995 Ford Bronco - Like the w/s trim, the antenna base isolator has been painted. [url=https://www.supermotors.net/registry/media/859762] https://www.supermot… 1995 Ford Bronco - This K&N 57-2542 FIPK is supplying hot air to the engine, which is less-efficient than the factory filter box & tubes. A K&N filter also re… 1995 Ford Bronco - The cowl-to-hood seal (which prevents engine fumes from entering the HVAC fresh air intake) is degraded and most of its screws are missing… 1995 Ford Bronco - The degraded recirculate line has already been replaced with white silicone. With the other recent HVAC repairs, the AC seems to be working… 1995 Ford Bronco - The body lift necessitated lowering the fan shroud, bending the ATF cooler lines, and raising the bumper (poorly). IF THE IMAGE IS TOO SMAL… 1995 Ford Bronco - The engine is surprisingly dry, but may be leaking around the oil pan gasket, or it could be blowing back from the ATF cooler hose. IF THE… 1995 Ford Bronco - The aftermarket plugs & wires look fairly new & clean. The cap & rotor are also new aftermarket, but they don't have the dielectric grease… 1995 Ford Bronco - There are no substantial leaks, but the transmission pan & mount are grimy, and the rear diff appears to be seeping some oil around the lef… 1995 Ford Bronco - The MLPS appears original & OK. [url=https://www.supermotors.net/registry/media/81709] https://www.supermotors.net/getfile/81709/thumbnail/… 1995 Ford Bronco - The original muffler & driveshafts are OK, but the rearmost u-joint may be wearing abnormally. The paint marks on the rear diff cover could… 1995 Ford Bronco - The steering seems twitchy, and has poor return-to-center. It's impossible to know if that's because of the 2 steering dampers, or if they… 1995 Ford Bronco - Due to the body lift, the transfer case shift lever has been cut, extended, & welded. IF THE IMAGE IS TOO SMALL, click it. [url=https://www… 1995 Ford Bronco - The 3" body lift necessitated changing to longer body mount bolts, adding lift lips, raising the bumpers & tailpipe, lengthening the f… 1995 Ford Bronco - The e-brake cables work freely, and the brake pedal appears to function normally. It's not critical, but Ford recommends rerouting the Left… 1995 Ford Bronco - The fuel tank & fuel lines look OK, with no significant rust anywhere on the truck. If access is ever needed inside the fuel tank, it's muc… 1995 Ford Bronco - Due to the body lift, lift lips have been screwed on, but this one was not cut to fit around the filler neck. R&I lift lip to fit filler ne… 1995 Ford Bronco - The factory 7 degree shim is missing on both sides, causing the rearmost u-joint to operate at nearly 8 degrees, instead of the recommended… 1995 Ford Bronco - Due to the body lift, the rear bumper was raised. But it is not attached solidly enough to be used for towing or bumping. The hitch receive… 1995 Ford Bronco - The line of fire adapter is hung on the wiring where it may be damaged by mud, gravel, or debris thrown by the tire. The hitch receiver app… 1995 Ford Bronco - 4WABS module label [url=https://www.supermotors.net/registry/media/908056] https://www.supermotors.net/getfile/908056/thumbnail/4wabs93.jpg… 1995 Ford Bronco - Front axle label (Dana 44IFS Twin Traction Beam) [url=https://www.supermotors.net/registry/media/544471] https://www.supermotors.net/getfil… 1995 Ford Bronco - Rear axle (Ford 8.8") has paint marks as found on many junkyard parts, but possibly indicating a date of service. [url=https://www.sup…
Browse all 140 photos
