1974 Ford Bronco “BlueSky GONE”
Home/ Registry/ Ford/ Bronco/ 1966–1977/ “BlueSky GONE” supermotors.net/registry/28823

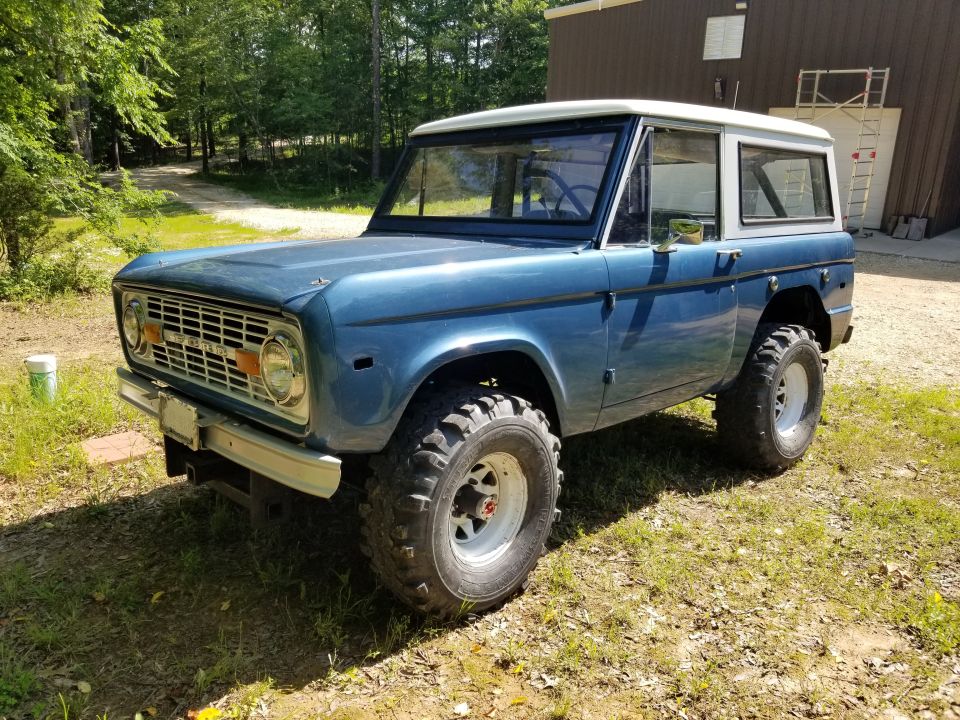

“BlueSky GONE”1974 Ford Bronco

138 photos documented since 2019 6 years documented ♡ Follow this build

The story

Acquired in TX by a neighbor who travels. He got it with bald TSL Super Swampers, fresh blue paint & bedliner everywhere else to hide some of the sheet metal problems, and REALLY-nicely upholstered original seats. No front suspension bushings to speak of; no door panels; no PS fluid; body seals in a box; slanted (but parallel) track bar & drag link; a floppy headlight; a floppier battery; droopy headliner; stuck hub lock knobs; spoiled gas in the front tank venting into the cab; RatNest brand wiring (thoroughly bedlined); and the heaviest but worst-built front & rear receivers conceivable. The engine ran OK when it ran, but it was hard to start cold, and it stalled briefly under hard acceleration. That has mostly been fixed by cleaning & tuning the carb, and replacing the fuel pump. One of the mufflers was exploded & rubbing the driveshaft, but the exhaust has been replaced closer to original. There were several slow fluid leaks, but not very active while parked. Rain hits the driver's Left foot through the vent, and there were at least a dozen open holes in the firewall & floor allowing engine air in (now plugged). But it blows out through all the body gaps just as quickly. It would be a helluva trail truck if the paint wasn't so nice. — Steve83

Day one vs. today

Drag to compare 2019 against 2025.

1974 Ford Bronco in 2025

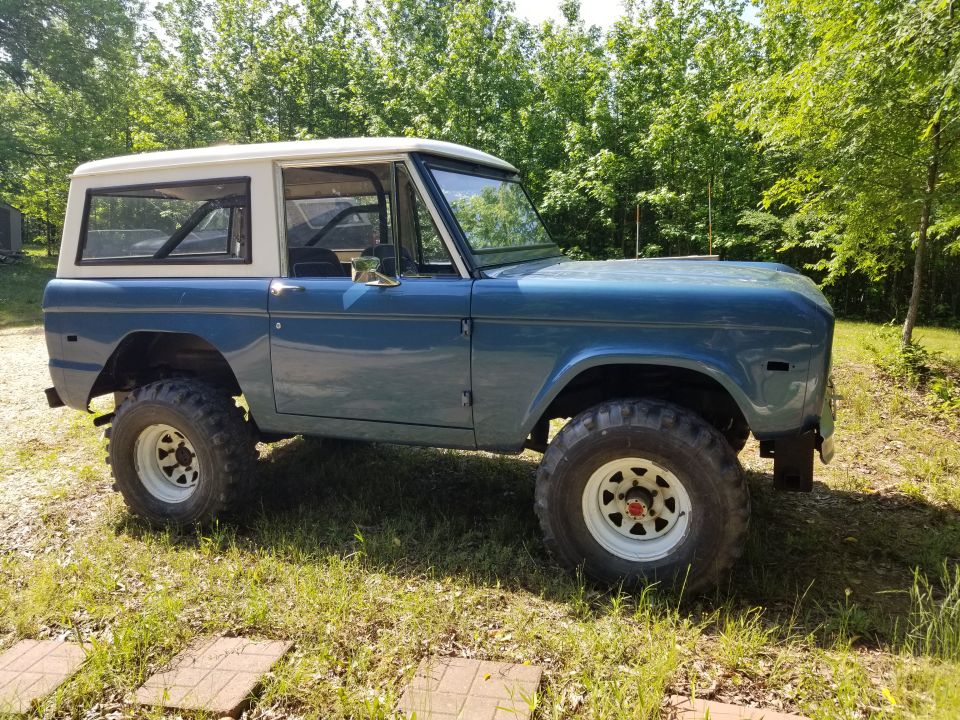

1974 Ford Bronco in 2019
2019 2025

Photo history

138 photos across 4 years — drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2019

2019

135 photos added — showing 8

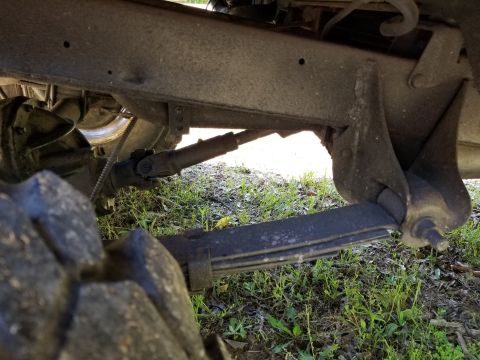

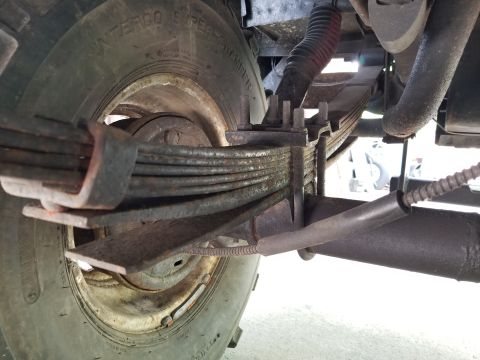

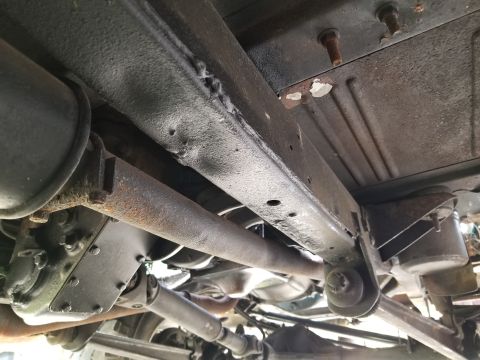

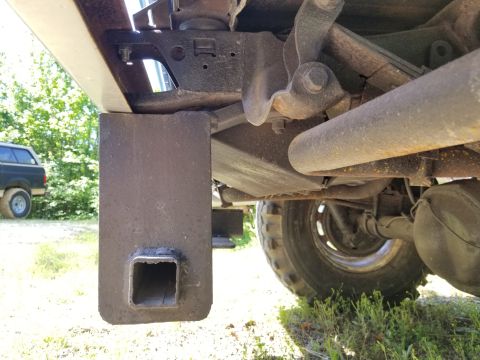

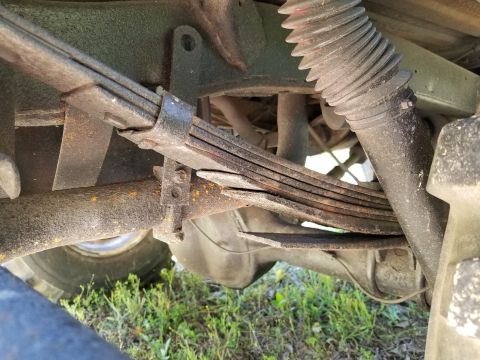

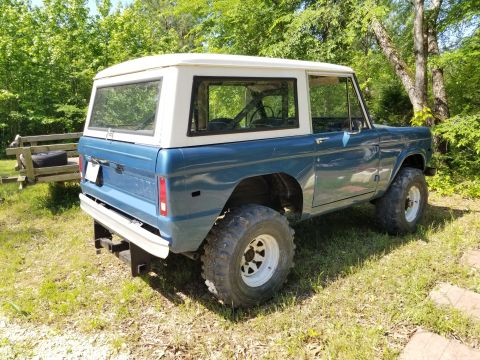

1974 Ford Bronco - It has a 20-foot paint job, and it runs & drives (sort of), but it needs a lot of work. 1974 Ford Bronco - It has a 20-foot paint job, and it runs & drives (sort of), but it needs a lot of work. 1974 Ford Bronco - It has a 20-foot paint job, and it runs & drives (sort of), but it needs a lot of work. 1974 Ford Bronco - One rusty bolt in each frame rail is all that's holding the rear receiver on. There's a hole close to the lower bumper bolt hole, but no bo… 1974 Ford Bronco - Yes: the frame, underbody, axle, and tailpipes are bedlined. So are the wiring, shocks, fuel lines, springs, interior... I don't want to kn… 1974 Ford Bronco - Yes: the frame, underbody, axle, and tailpipes are bedlined. So are the wiring, shocks, fuel lines, springs, interior... The add-a-leafs ar… 1974 Ford Bronco - We still haven't figured out how the frame got dented here, under the RHF seat. Apparently, many of the holes in the floor were taped befor… 1974 Ford Bronco - The 9" & its driveshaft seem to be OK (despite the exploded muffler rubbing on the shaft). I haven't attempted to use the e-brake.

2020

9 photos added — showing 8

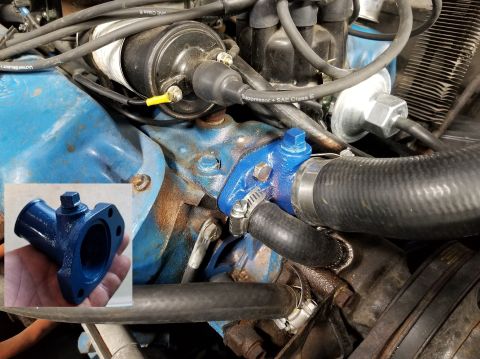

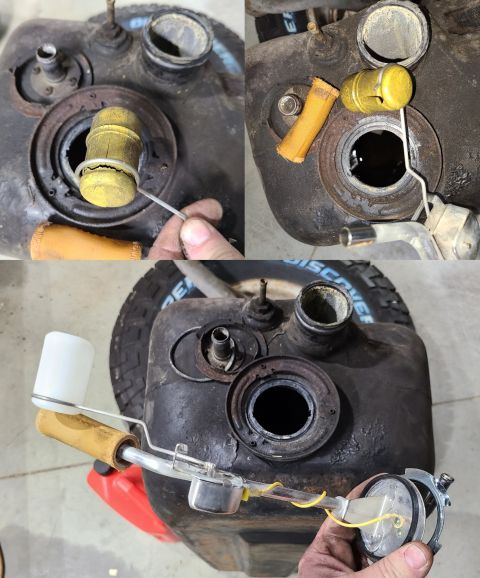

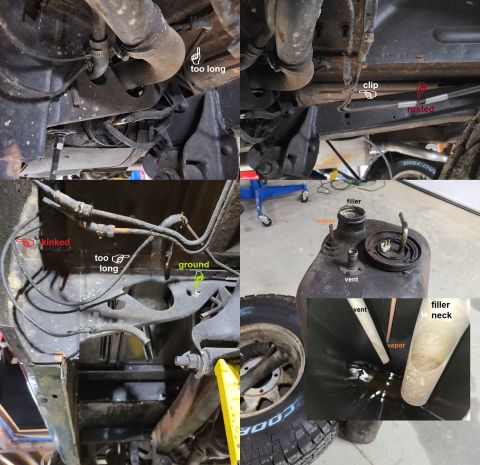

1974 Ford Bronco - This crappy imported t-stat cover required a LOT of grinding & filing of the nipples so the hoses would seal. Then it was painted DupliColo… 1974 Ford Bronco - There have been persistent fuel leaks around the LHR tire, apparently from the rusted vapor tubes, but also recently from the sender O-ring… 1974 Ford Bronco - The O-ring was degrading, and the float is shattered, so they're being replaced. But after drying & vacuuming, the inside of the tank is su… 1974 Ford Bronco - The underbody appears to have POR15, but the frame is bare. The tank is back in, but needs to be filled to check for leaks. IF THE IMAGE IS… 1974 Ford Bronco - This door strike was about to break off its mounting plate, and its collar is still cracked. But it's solid now, and if the door is slammed… 1974 Ford Bronco - The tailpipe hanger interfered with the hitch receiver, so it was cut off & welded back on. Then the receiver was positioned, drilled, & bo… 1974 Ford Bronco - The trailer wiring adapter is simply plugged in between the taillight connectors (C320) and grounded to the body. Another ground wire was a… 1974 Ford Bronco - After fabricating a floor bracket, the console is mounted solidly enough to climb over. Only 2 small holes were added to the floor. IF THE…

2022

2 photos added

1974 Ford Bronco - A small structure was fabricated to hold the e-brake cable securely to the floor patch. [url=https://www.supermotors.net/registry/media/115… 1974 Ford Bronco - Rather than continue to fight the antique headlights, these modern projectors were swapped in. They're mildly goofy with the color-changing…

2025

1 photo added

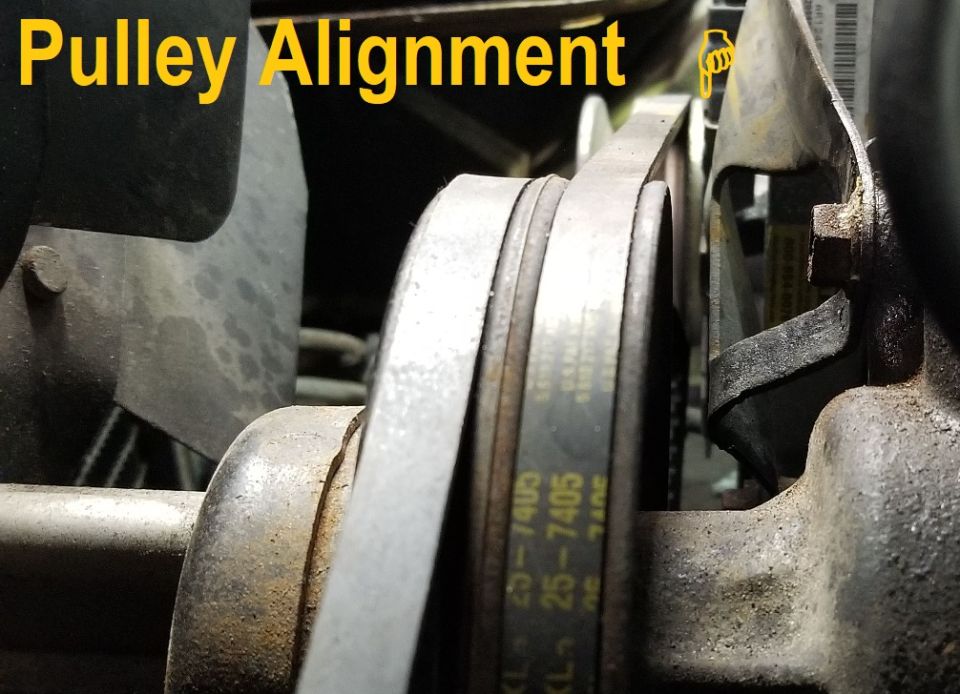

1974 Ford Bronco - The cobbled-together engine & brackets resulted in the alternator pulley being about a half inch behind the water pump pulley, making the b…
