1988 Ford Bronco
Home/ Registry/ Ford/ Bronco/ 1987–1991/ 1988 Bronco supermotors.net/registry/26113

1988 Ford Bronco

70 photos documented since 2013 1 years documented ♡ Follow this build

Photos

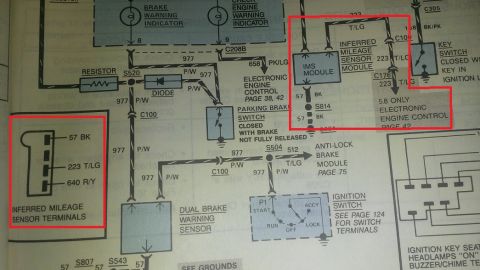

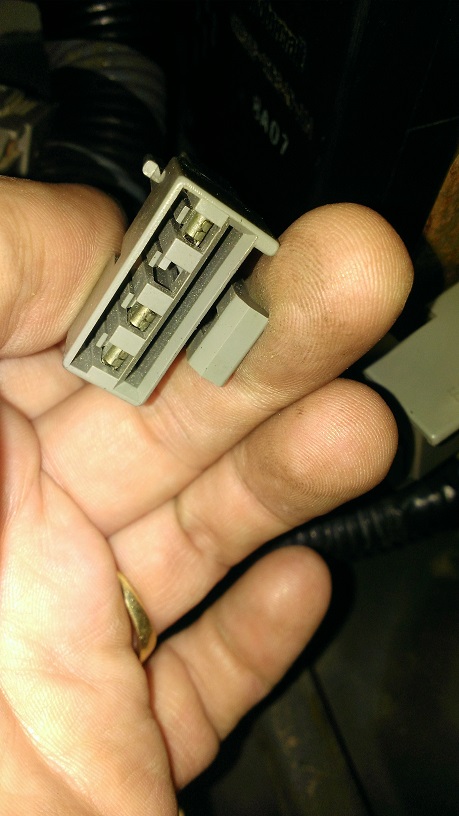

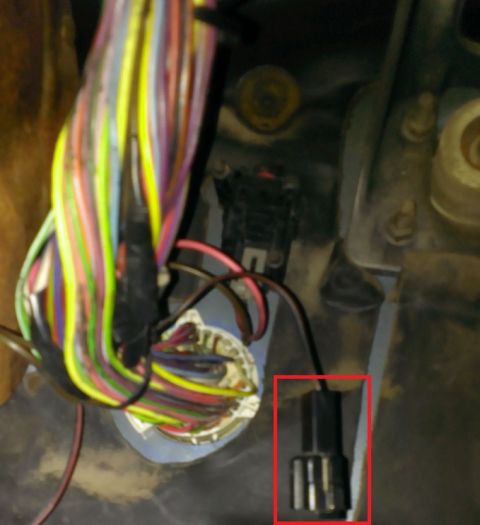

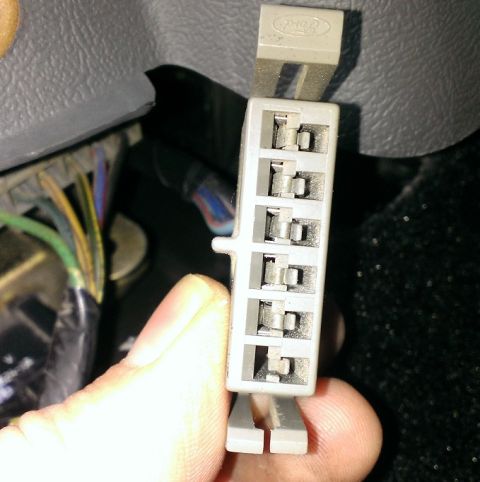

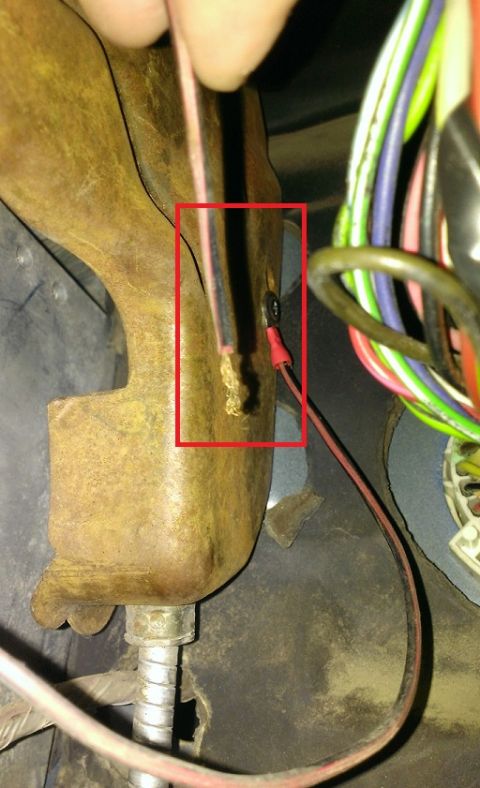

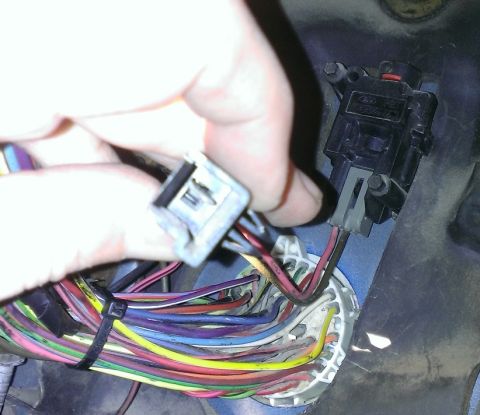

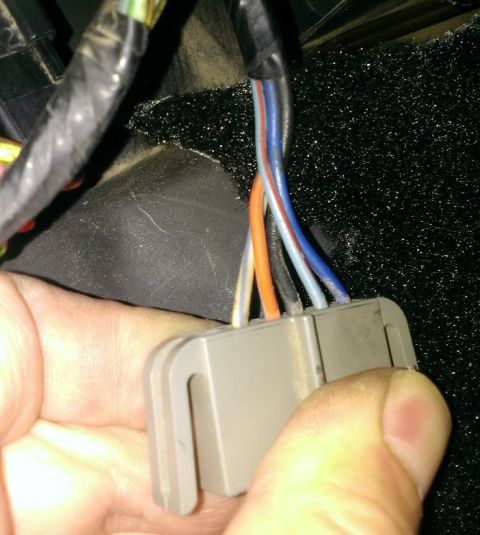

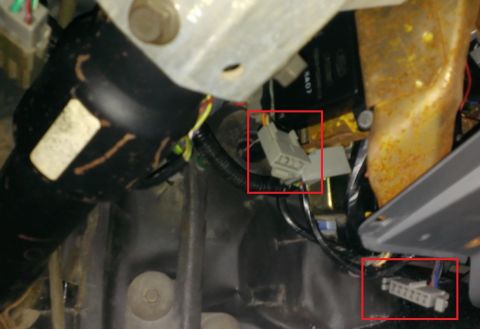

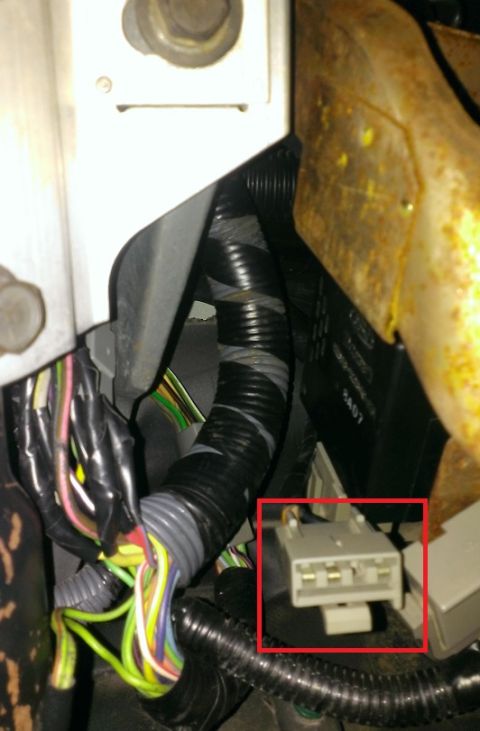

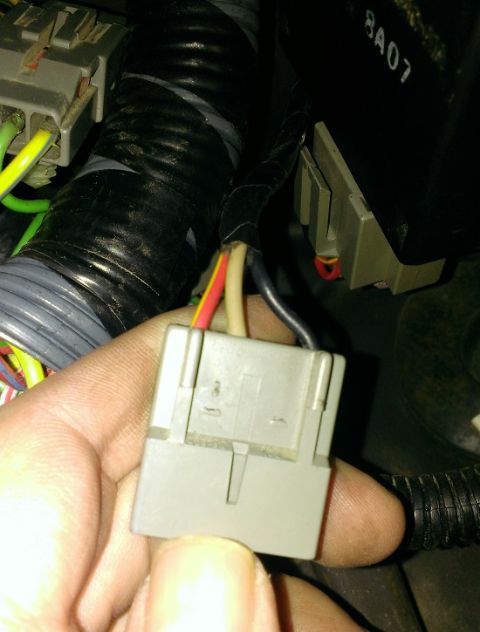

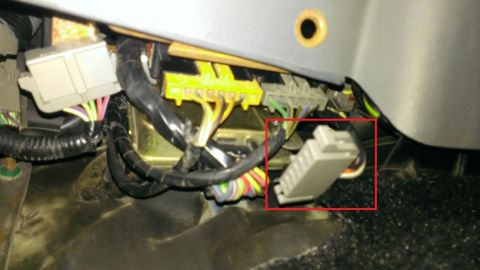

1988 Ford Bronco - '88 XLT 5.0L EFI - AOD Stage 2 Tranny - MSD Ignition and Distributor - Yukon 4:88 grs (locker in rear, LSD in front) - 33" tires on Pr… 1988 Ford Bronco - This connector behind emergency brake, near fuel inertia switch, turned out to be for ABS diagnostics. 1988 Ford Bronco - This connector behind emergency brake, near fuel inertia switch, turned out to be for ABS diagnostics. 1988 Ford Bronco - Connector behind radio/ashtray turned out to be for a clutch pedal sensor/switch that doesn't exist in my rig because it's AOD. 1988 Ford Bronco - Connector behind radio/ashtray turned out to be for a clutch pedal sensor/switch that doesn't exist in my rig because it's AOD. 1988 Ford Bronco - Connector for clutch position sensor/switch behind radio/ashtray 1988 Ford Bronco - Disconnected wire (black/red) grounded at driver-side kick panel 1988 Ford Bronco - The lower, 6-socket connector is for the clutch position switch/sensor, and the 4-socket connector above it is for the IMS. 1988 Ford Bronco - Connector on right side of steering column, near ign switch for the Inferred Mileage Sensor (IMS), which is non-existent for '88 5.0L Bronc… 1988 Ford Bronco - Connector on right side of steering column, near ign switch for the Inferred Mileage Sensor (IMS), which is non-existent for '88 5.0L Bronc… 1988 Ford Bronco - Connector on right side of steering column, near ign switch for the Inferred Mileage Sensor (IMS), which is non-existent for '88 5.0L Bronc… 1988 Ford Bronco - With 3" body lift 1988 Ford Bronco - Close-up of custom headlight 1988 Ford Bronco - Diagram showing the inferred mileage sensor, and as it states, it's only part of the 5.8L models. 1988 Ford Bronco - Repaired ignition switch wires where aftermarket alarm was spliced in. 1988 Ford Bronco - Lookin' good dressed in white. 1988 Ford Bronco - With 3" body lift 1988 Ford Bronco - The interior of a Ford Bronco, the dashboard and front seats, with an XLT Bronco badge visible. 1988 Ford Bronco - The interior of a 1988 Ford Bronco shows two racing seats and a center console. 1988 Ford Bronco - The interior of a vehicle is shown, black leather seats and a steering wheel. The registry claims it is a 1988 Ford Bronco, but this cannot… 1988 Ford Bronco - Playing in the snow 1988 Ford Bronco - Playing in the snow 1988 Ford Bronco - Playing in the snow 1988 Ford Bronco - Playing in the snow 1988 Ford Bronco - 02/13/14 - Biggest snow storm in 4yrs. 1988 Ford Bronco - Front view of a 1987 Ford Bronco covered in snow. 1988 Ford Bronco - Playing in the snow 1988 Ford Bronco - Locking pin sheared off of the distributor's gear. 1988 Ford Bronco - Undetermined wire connection under the hood 1988 Ford Bronco - Undetermined wire connection under the hood 1988 Ford Bronco - Undetermined connector under hood may be for tachometer resistor 1988 Ford Bronco - Removed the throttle body to replace the TPS, and learned that the upper intake is full of crud. The build-up is terrible (about 1/16"… 1988 Ford Bronco - Upper intake manifold full of carbon build-up and grease. 1988 Ford Bronco - Passenger side valve cover before sanding and paint 1988 Ford Bronco - Driver side valve cover before sanding and paint 1988 Ford Bronco - Valve covers sanded and repainted. 1988 Ford Bronco - Engine component detail with wires and hoses visible, a red circle marks a specific area. 1988 Ford Bronco - This diagram shows the electrical components related to the A/C-Heater system, with a focus on the gasoline-powered engine's fuel system. 1988 Ford Bronco - Engine with recently replaced vac lines. Old and brittle plastic lines were replaced with quality silicone hoses 1988 Ford Bronco - Engine with recently replaced vac lines. Old and brittle plastic lines were replaced with quality silicone hoses
Browse all 70 photos
