1991 Ford Bronco

53 photos documented since 2013 ♡ Follow this build

The story

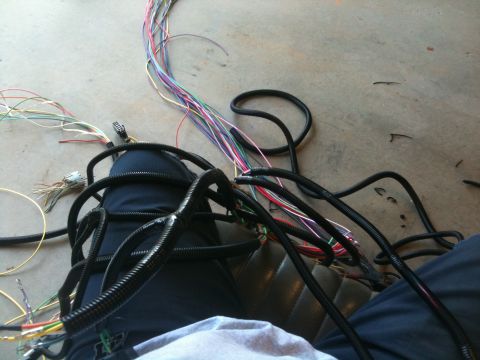

Frame up build with nothing untouched. Recovered seats in black and changing interior color to black. EZ wiring harness. Custom rear bumper with 9k winch. 92 front clip. Custom shock mounts with RS9000's .......... etc — backyardsigns

Photos

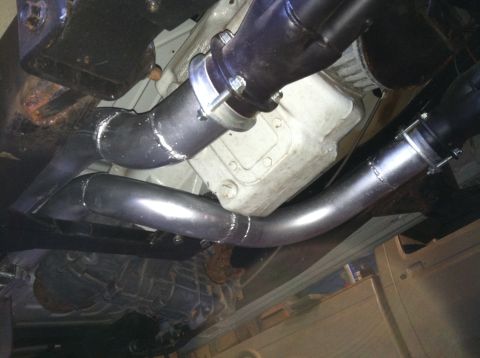

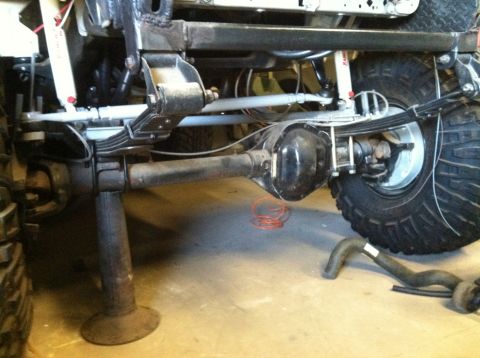

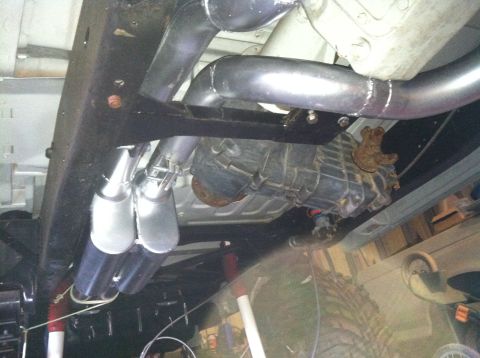

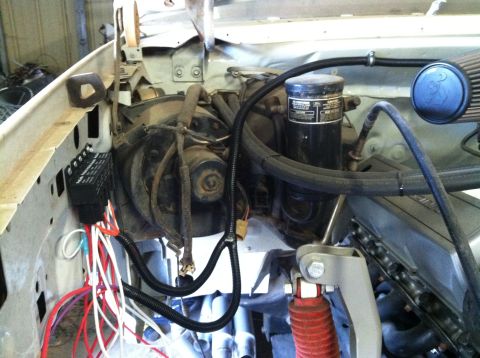

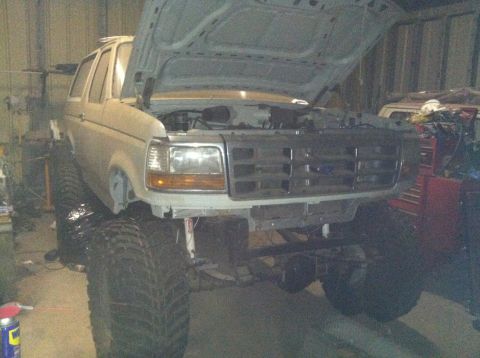

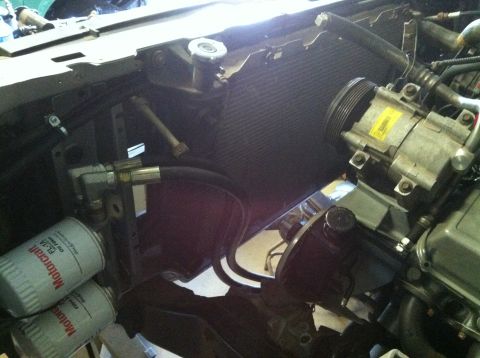

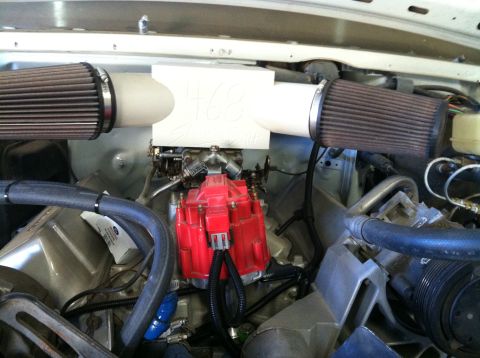

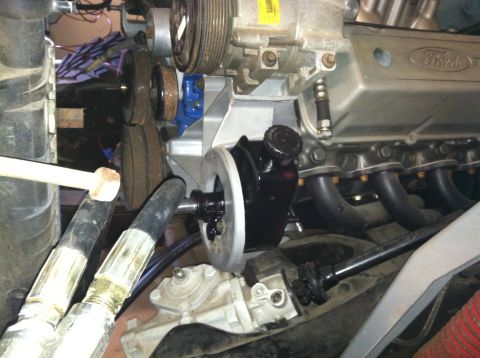

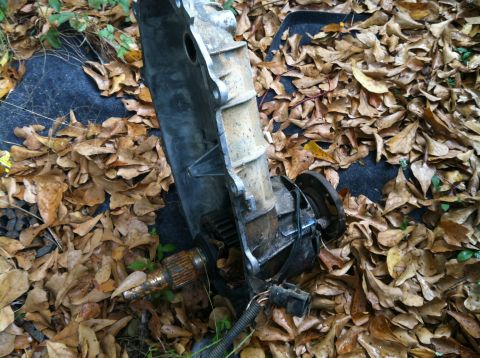

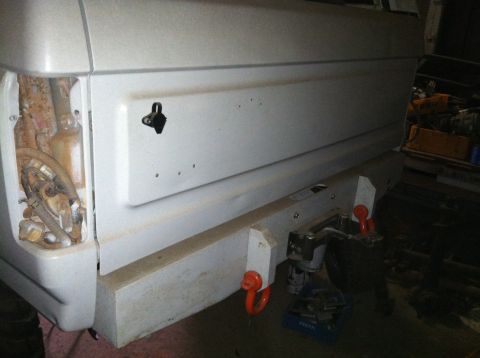

1991 Ford Bronco - As it sits on Nov 22, 2013....still needing to finish: new wiring is at 80%, building the driveshafts, run fuel line, make/modify a cranksh… 1991 Ford Bronco - The exhaust is full 3" with mandrel bends from header back. You can see the NP435 trans here too and the custom transmission mount I b… 1991 Ford Bronco - Here you can see the custom air cleaner I made with nylon and 3" PVC. It is on a 650 double pumper and that is a billet distributor ho… 1991 Ford Bronco - My custom bumper I made using 3"x4"x 3/8" angle (8" tall after welding together) with a 9000 lb winch mounted. Used app… 1991 Ford Bronco - Dana 60 king pin 4.10 gears. WFO high steer arms with Chevy one ton tie rod ends and drag link ends with 1.5" x .25" wall DOM tub… 1991 Ford Bronco 1991 Ford Bronco - Another view of the 3" exhaust 1991 Ford Bronco - Junkyard find..... Using the rear output flange on the front output of my manual shift BW1356 transfer case. 1991 Ford Bronco 1991 Ford Bronco 1991 Ford Bronco - My remote oil filter setup and that big ass radiator out of a forestry dept F-350. 1991 Ford Bronco - Saginaw power steering pump rebuilt and ready for service. 1991 Ford Bronco 1991 Ford Bronco 1991 Ford Bronco - The start of my gauge panel 1991 Ford Bronco - Gauge panel built and almost ready for install. 1991 Ford Bronco - Backside of gauge panel. 1991 Ford Bronco 1991 Ford Bronco 1991 Ford Bronco - Ready for the monster power plant. 1991 Ford Bronco 1991 Ford Bronco - Here is a finished "porting" job In a exhaust port using the instructions from Re in"car"nation. 1991 Ford Bronco - You can see the smog bump in a exhaust port in this picture. 1991 Ford Bronco 1991 Ford Bronco - Here I am starting to seperate and group the wires for the Bronco using a new harness from EZ-Wiring 1991 Ford Bronco 1991 Ford Bronco - I used the mini fuse box for a little flexibility in mounting options. 1991 Ford Bronco - Another view of the vane that Re in"car"nation recommends leaving. 1991 Ford Bronco - The dual valve spring setup that is required for my camshaft. 1991 Ford Bronco - This is after gasket match and blend on intake side. 1991 Ford Bronco 1991 Ford Bronco - There ain't no dished pistons in this 460 !!!!! And yes that is a .040 bored cylinder. 1991 Ford Bronco - Here she is assembled and basically ready for install (the blocks are there mainly for a little security as in this state it is VERY heavy… 1991 Ford Bronco 1991 Ford Bronco 1991 Ford Bronco - Taped up and ready for paint 1991 Ford Bronco - Interior view of a 1991 Ford Bronco undergoing restoration, with exposed wiring and dashboard components. 1991 Ford Bronco - I am having trouble finding a thermostat housing that will work so I will build one. I am starting with a piece of 3"x4"x 3/8&quo… 1991 Ford Bronco - I turned the last 2" down to 1.75' O.D. and left a 1.8" O.D. piece on the end like the factory pieces have. I lost the picture of… 1991 Ford Bronco - Here is the angle I have to cut for clearance..... at first I thought that was all I would need but I had to change that.
