1996 Ford Bronco “Buckin Bronco”
Home/ Registry/ Ford/ Bronco/ 1992–1996/ “Buckin Bronco” supermotors.net/registry/24917

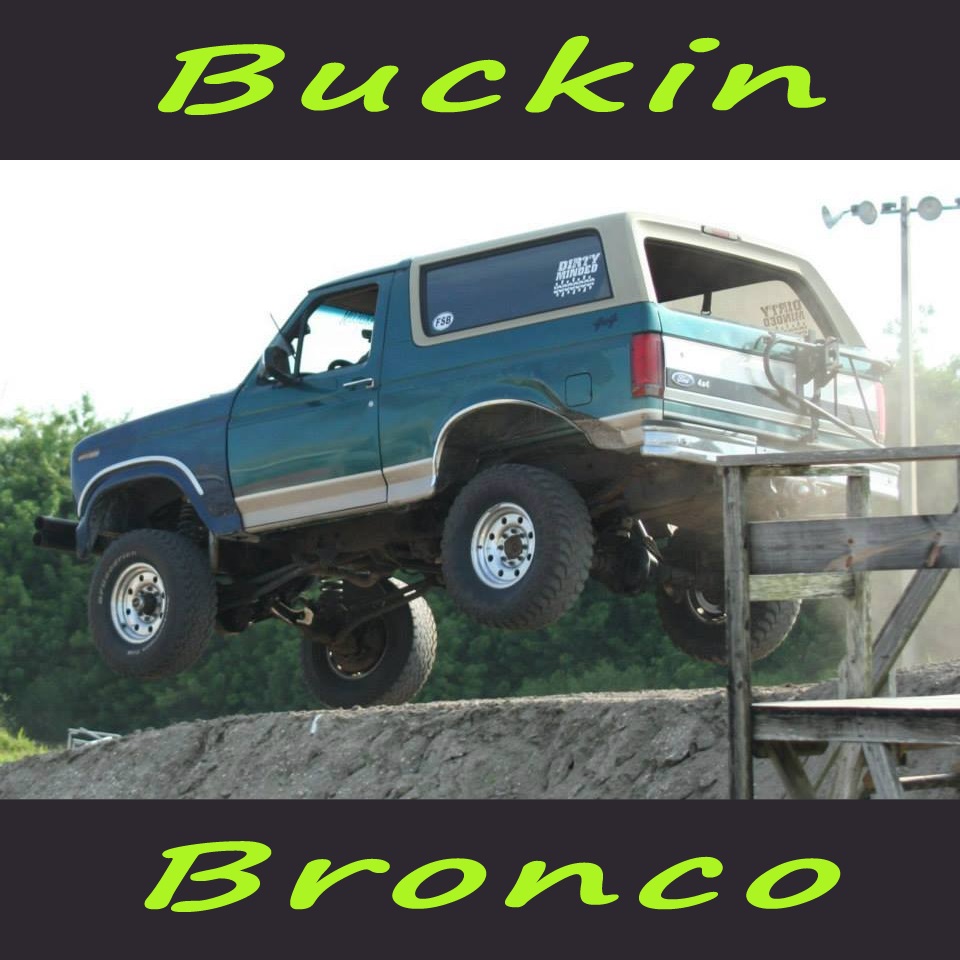

“Buckin Bronco”1996 Ford Bronco

403 photos documented since 2012 7 years documented ♡ Follow this build

The story

THIS TRUCK IS KIA


Bought it from an asian girl in good condition and great price. Few years of DD till it founds its call as the Bucking Bronco. Still was a DD but i will do light mudding, alot of rally/baja trail riding, and will jump it like crazy numerous times and still drive it home. Truck has taken alot of damage but i still poured my money into it. It finally came to the point that the frame damage was too severe even by my standards and it was impossible to keep street-able. Ended up buying a new Bronco AKA B3 to replace it.

After buying the new truck I took this for 1 last ride at the Trucks on the Track events and beet the piss out of it. I was planning on making a grand finally jump to kill the truck off but unfortunately it didn't happen. When driving on the track, the front wheel bottomed out and ripped my wiring harness and computer to hell making it dead.

It is being disassembled in Operation Organ Donor and is going to transfer pretty much everything into my 88 Bronco. Engine, tranny, axles, suspension, and everything important. — Kingfish999

Day one vs. today

Drag to compare 2012 against 2019.

1996 Ford Bronco in 2019

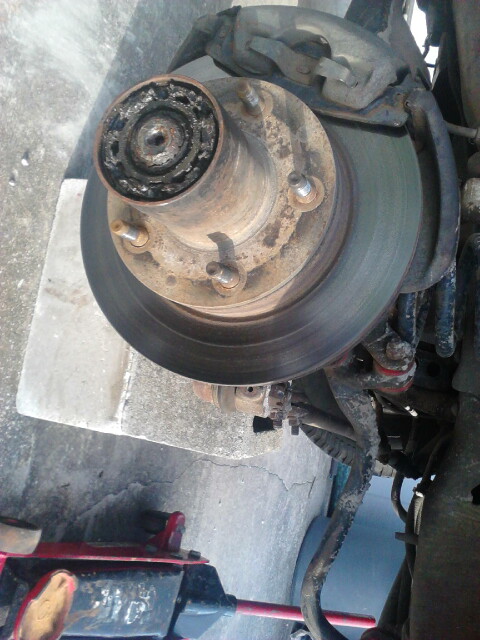

1996 Ford Bronco in 2012
2012 2019

Photo history

403 photos across 7 years — drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2012

2012

87 photos added — showing 8

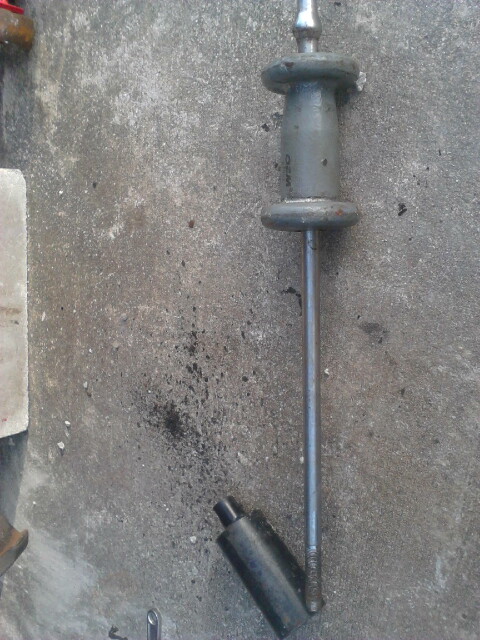

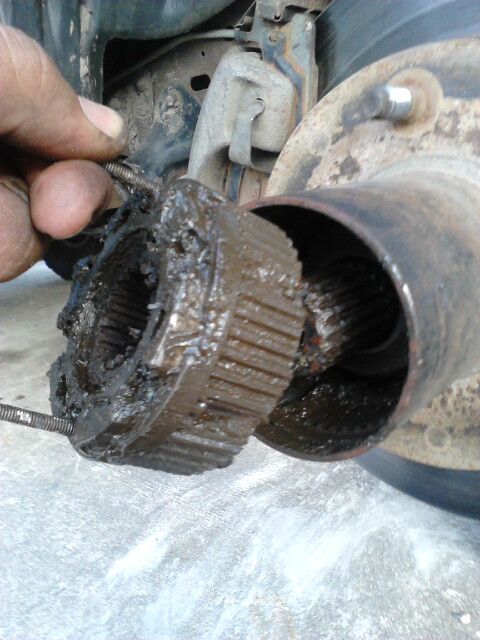

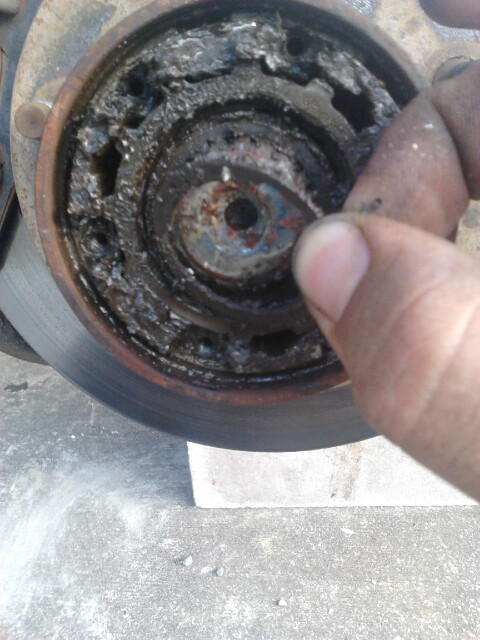

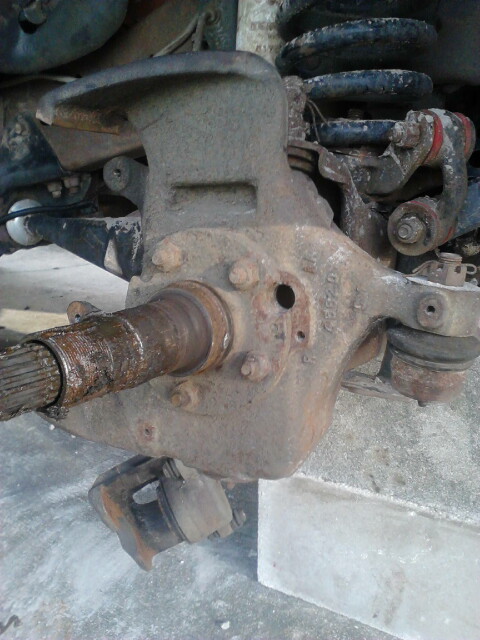

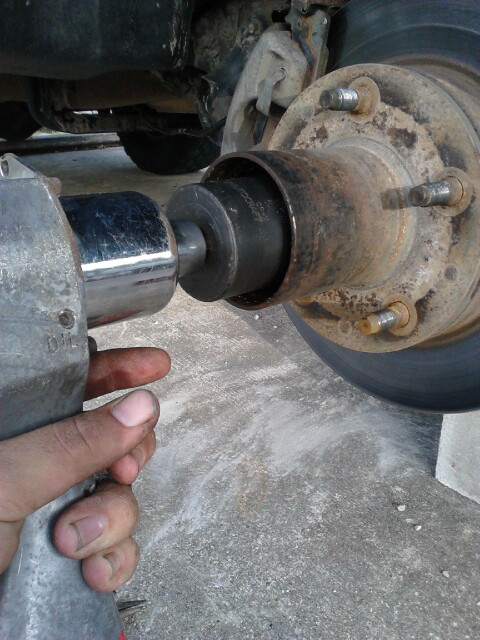

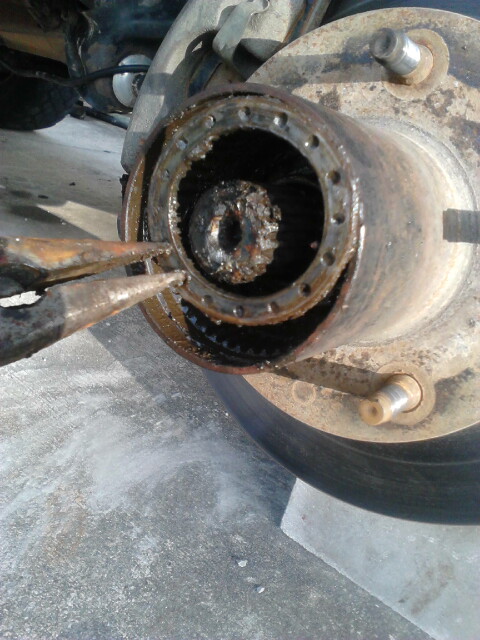

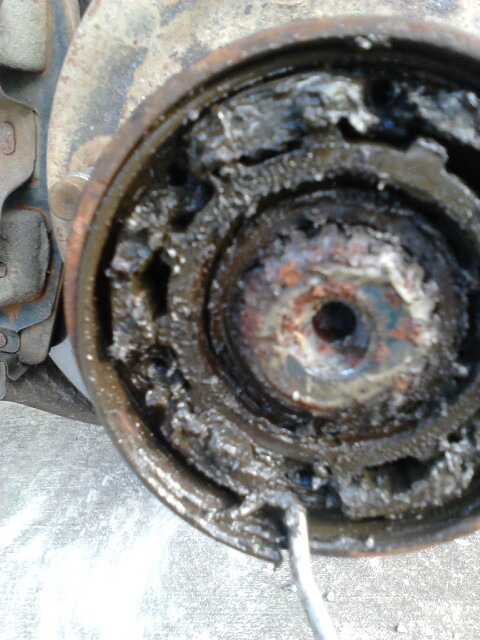

1996 Ford Bronco - Jack up the side of the truck. put support under it, take the tire off. take the lockout cap bolts out and tap the cap off. I have Warn Sta… 1996 Ford Bronco - Take off the small C-clip that is around the axleshaft 1996 Ford Bronco - Use a pick or 2 to remove the big clip around the inside of the hub. its usually hidden by grease and can be a pain to get out without pick… 1996 Ford Bronco - Place 2 of the cap bolts back in a good number of threads. use them to help pull it out. my lockout being slightly damaged made it very tri… 1996 Ford Bronco - Use a 4 prong spindle nut socket to get the first spindle nut off. my threads on my spindle are damaged so i used an impact wrench to zip i… 1996 Ford Bronco - with the first spindle nut out, use a pick or needlenose to take out the lock washer. once out, use the spindle nut socket to take out the… 1996 Ford Bronco - Take the caliper off. support it so it doesnt hang by the hose. since the hose is getting replaced i didnt really worry about it too much s… 1996 Ford Bronco - This is a slide hammer and 4WD Spindle Puller Adapter i use to quickly take the spindle off. Ive gotten some badly rusted spindles off no p…

2013

107 photos added — showing 8

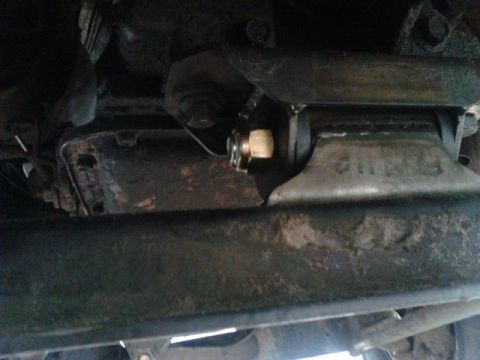

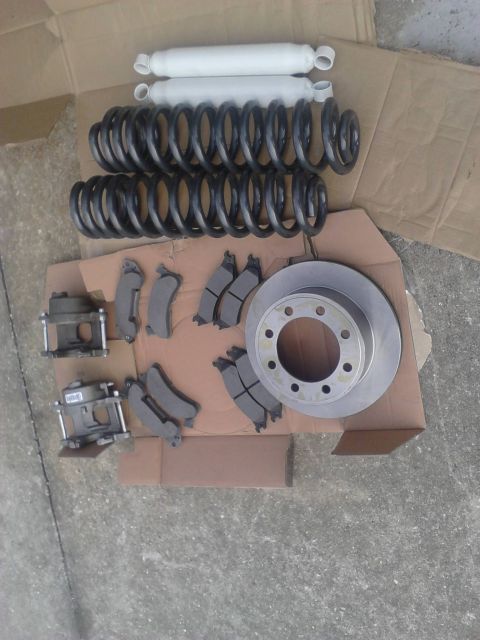

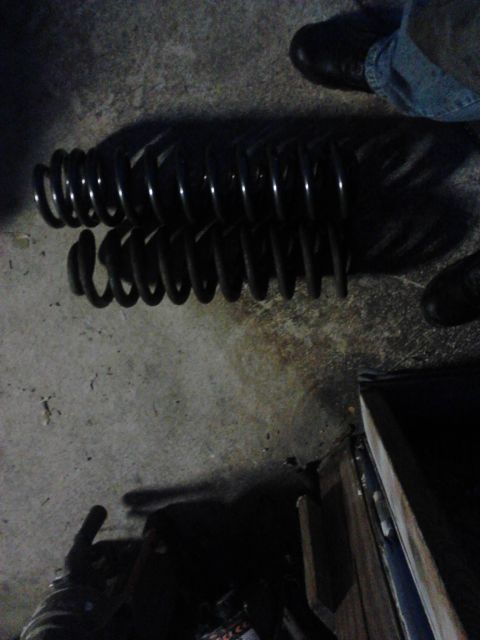

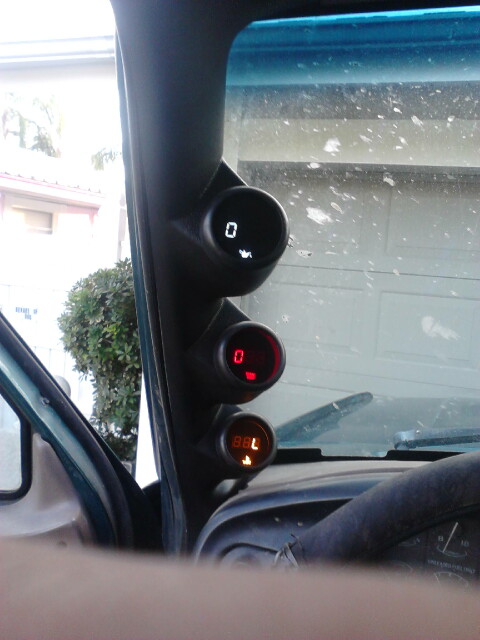

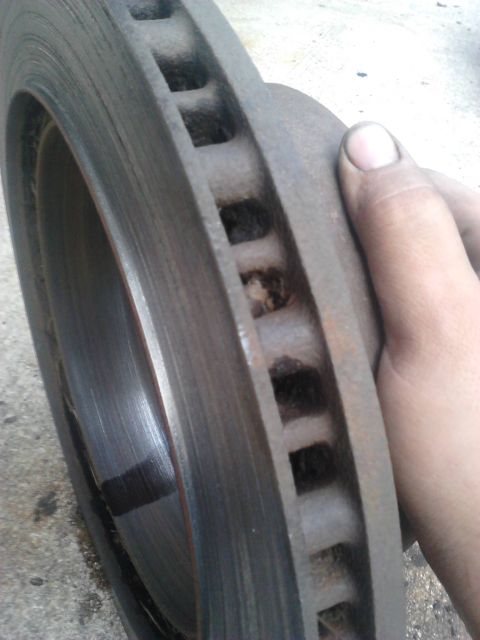

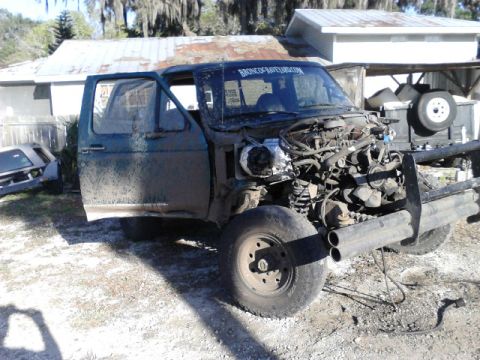

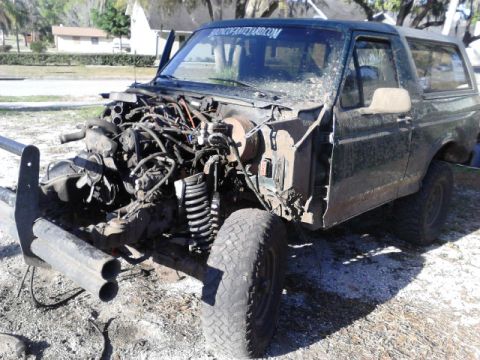

1996 Ford Bronco - Deaver 5.5" Superflex Coils. Shocks. Bigger calipers and pads for the front. New rotors pads and upgraded dual piston calipers for the… 1996 Ford Bronco - rear disk was destroyed from a stuck caliper. chewed almost 1/4" through the rotor within 3 weeks 1996 Ford Bronco - old Procomp 6" coil vs new Deaver 5.5" Superflex coil 1996 Ford Bronco - Pillar guages durring the day 1996 Ford Bronco - Autofab poly transmission mount. abit costy but definatly worth it and work great with JBG poly motor mounts 1996 Ford Bronco - got stuck on the motocross track. front axleshaft popped out and limited my steering a lot. that's my friend there not me 1996 Ford Bronco - starting front clip swap. also doing alot of other work 1996 Ford Bronco - starting front clip swap

2014

32 photos added — showing 8

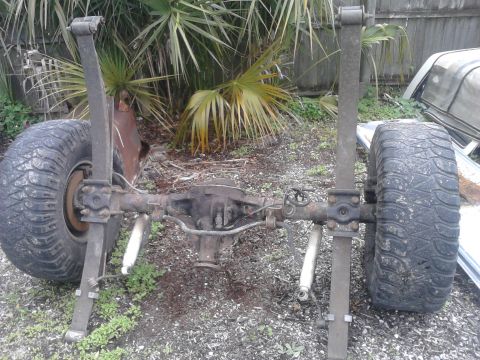

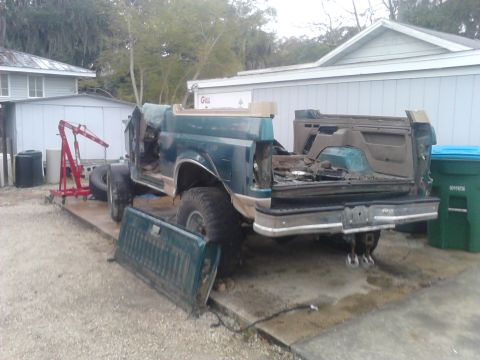

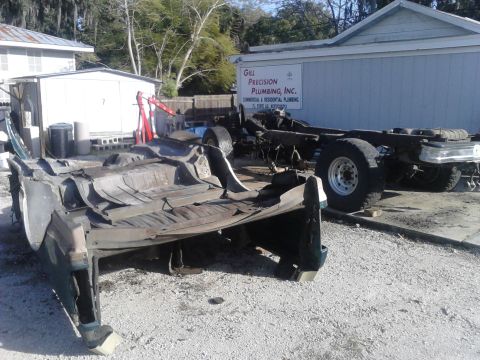

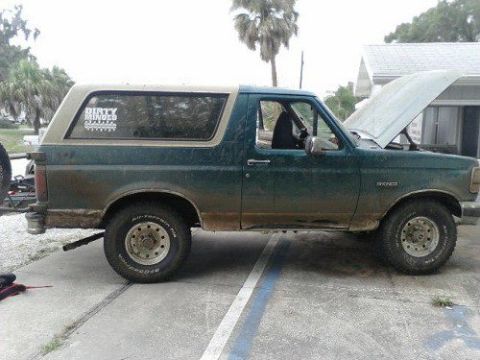

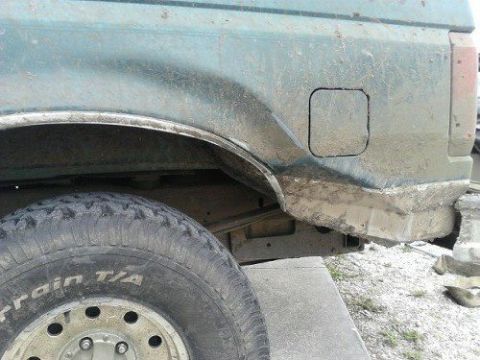

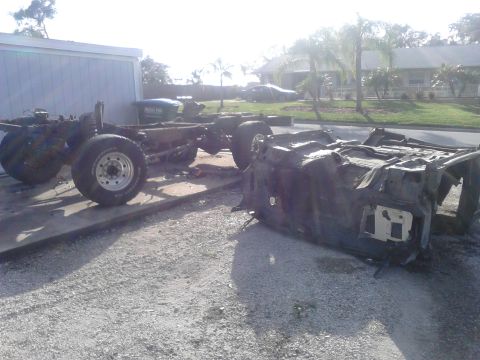

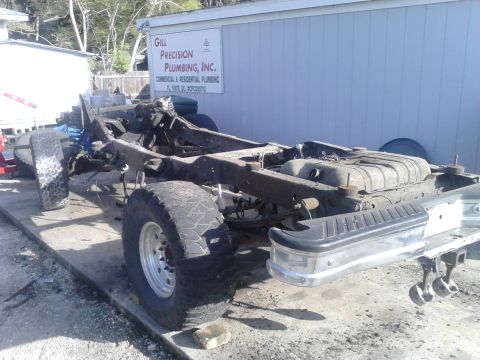

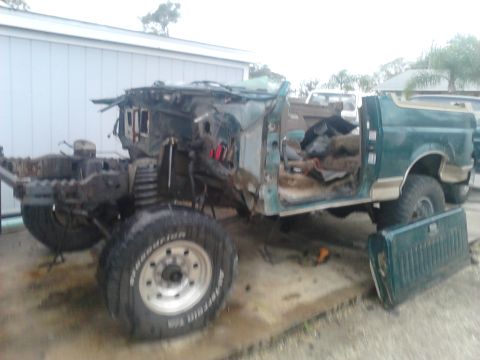

1996 Ford Bronco - Redneck Yatch Club May 28th. on the way home the dam wheel came off cause the wheel studs broke off. Not fun. shouldn't have let my hungove… 1996 Ford Bronco - Redneck Yatch Club May 28th. From creepin in the mud as slow as i can, as deep as i can, as long as i can. never got stuck but stalling was… 1996 Ford Bronco - Day 3: Started the process of cutting up the body. got the top cut off and unbolted all the body mounts. took the tailgate and doors off to… 1996 Ford Bronco - Day 3: Started the process of cutting up the body. got the top cut off and unbolted all the body mounts. took the tailgate and doors off to… 1996 Ford Bronco - Day 4: Got the body ripped off from the frame 1996 Ford Bronco - Day 4: Got the body ripped off from the frame 1996 Ford Bronco - Day 4: Got the body ripped off from the frame 1996 Ford Bronco - Day 5: Got front and rear axle, steering, suspension and wiring harnesses pulled. Fuel tank, hitch and rear bumper removed. Most of the fra…

2016

3 photos added

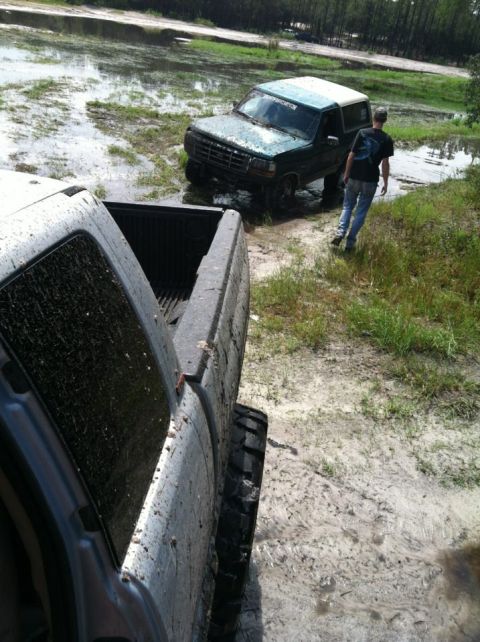

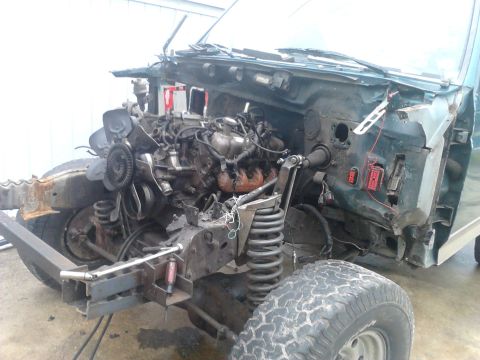

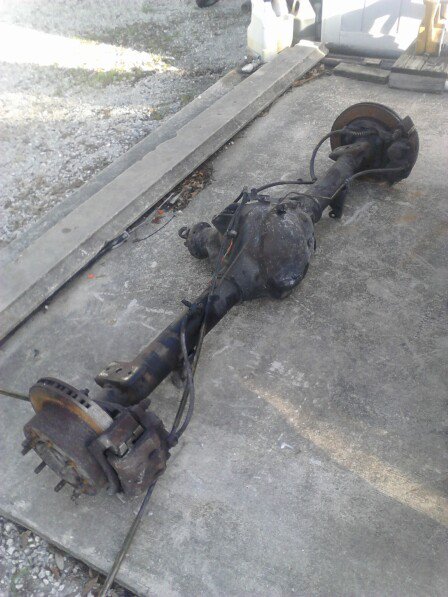

1996 Ford Bronco - Dana 60 semi floating axle i swapped in. came from an E-250 van somewhere around ~2000 year. reason i chose it is because it has factory di… 1996 Ford Bronco - only pic i have that shows the coil and shock tower 1996 Ford Bronco - the night that ruined this truck. stuck for 10 hours and nobody couldget me out expeet my friend with a Dodge cummins on 46" tires. it…

2017

85 photos added — showing 8

1996 Ford Bronco 1996 Ford Bronco 1996 Ford Bronco 1996 Ford Bronco 1996 Ford Bronco 1996 Ford Bronco 1996 Ford Bronco 1996 Ford Bronco

2018

58 photos added — showing 8

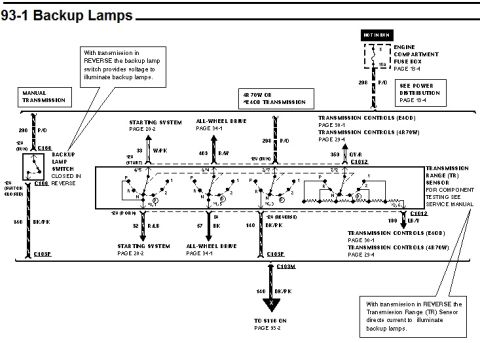

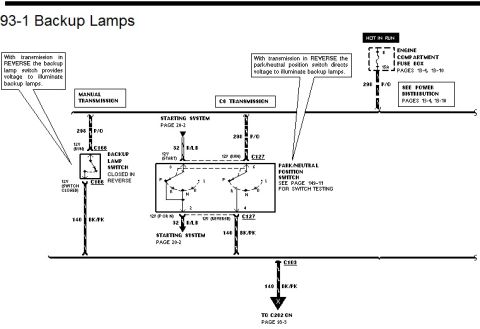

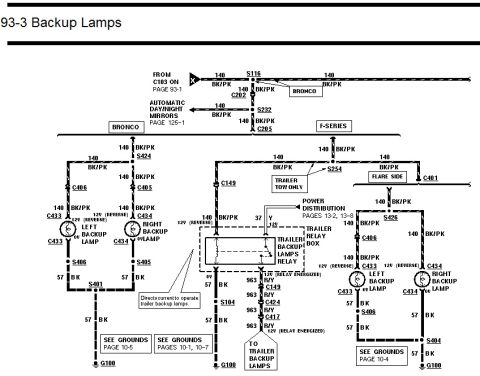

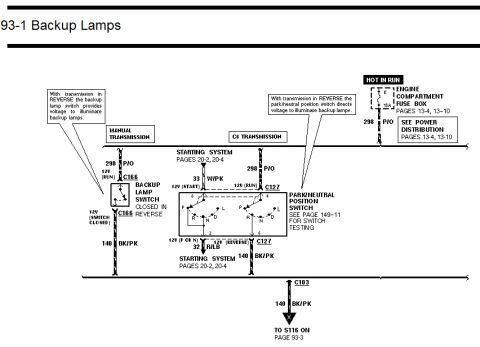

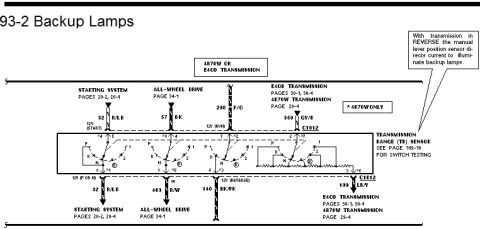

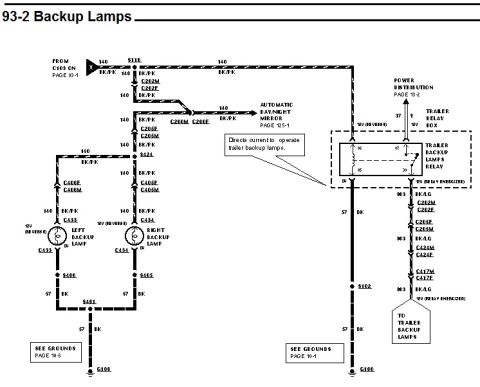

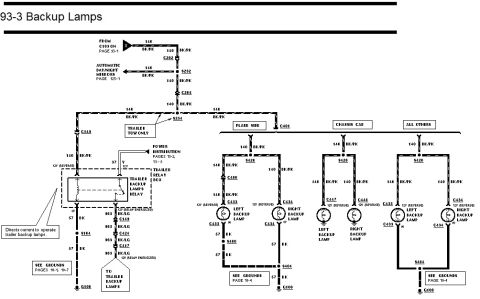

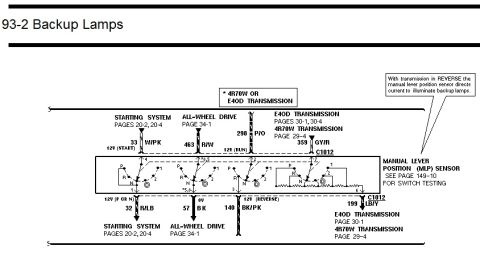

1996 Ford Bronco - This diagram illustrates the electrical connections for backup lamps, detailing components like the backup lamp switch and park/neutral pos… 1996 Ford Bronco - This diagram illustrates the electrical connections for backup lamps, detailing components like the transmission and starting system. 1996 Ford Bronco - This diagram details the backup lamp wiring, including the trailer tow relay and power distribution for various vehicle configurations. 1996 Ford Bronco - This diagram illustrates the backup lamp circuit and its relation to the transmission and starting systems. 1996 Ford Bronco - This diagram details the electrical schematic for vehicle backup lamps and their associated relays and power distribution. 1996 Ford Bronco - This diagram details the electrical connections for backup lamps, including switches and power distribution. 1996 Ford Bronco - This diagram illustrates the wiring for backup lamps, detailing connections for the transmission and starting system. 1996 Ford Bronco - This diagram details the backup lamp wiring for Ford Bronco and F-Series vehicles.

2019

6 photos added

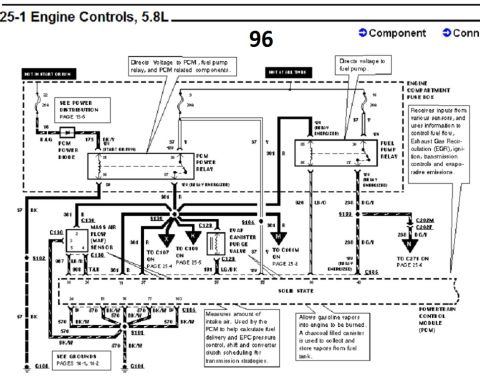

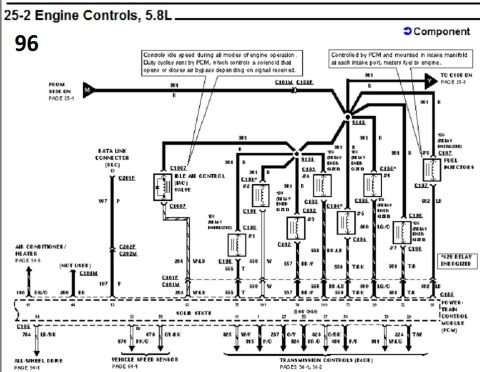

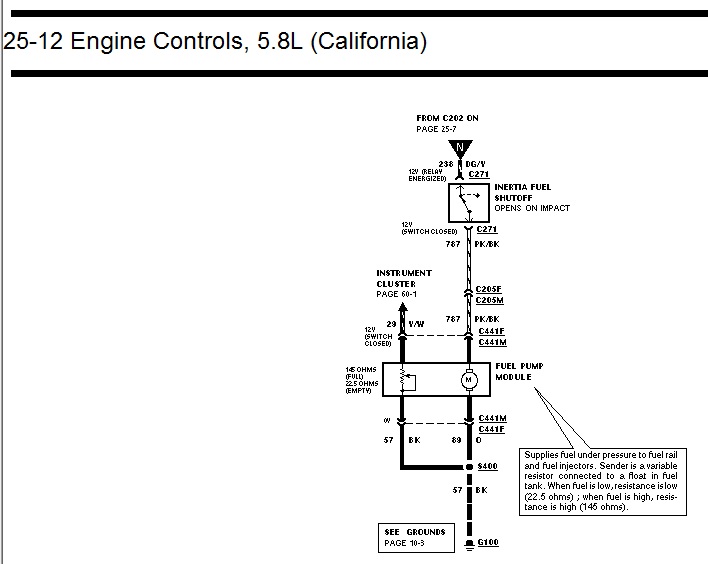

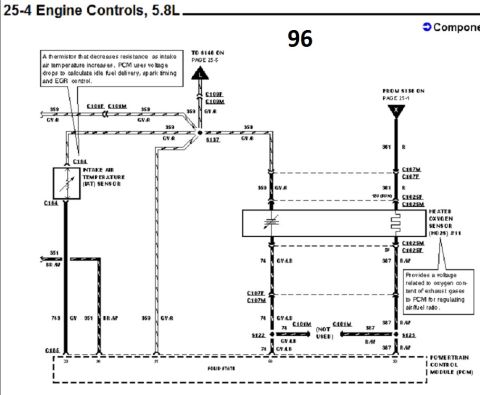

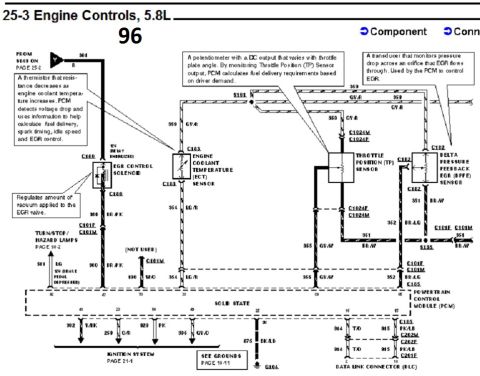

1996 Ford Bronco - Diagram illustrates engine controls for 5.8L California models, detailing components like the PCM, relays, and sensors. 1996 Ford Bronco - Diagram details engine controls and related electrical components for a 5.8L engine. 1996 Ford Bronco - This diagram details the engine controls for a 5.8L engine, including the EGR control solenoid and throttle position sensor. 1996 Ford Bronco - This diagram details engine control wiring for a 5.8L engine in California, illustrating sensor connections and fuse box information. 1996 Ford Bronco - This diagram illustrates engine controls for 5.8L engines in California, detailing components like the PCM, fuse box, and oxygen sensor. 1996 Ford Bronco - Diagram details engine controls and fuel system components for a 5.8L engine.
