1993 Ford F-150 “xlt”
Home/ Registry/ Ford/ F-150/ 1992–1996/ “xlt” supermotors.net/registry/24817

“xlt”1993 Ford F-150

64 photos documented since 2012 1 years documented ♡ Follow this build

The story

This truck is my first project. Its pretty much done, though Ill probably never be done done with it, always something to change or fix. Mostly just going to wheel it but still going to do all the body work on it, along with keeping it in good shape mechanically — rclark12

Photos

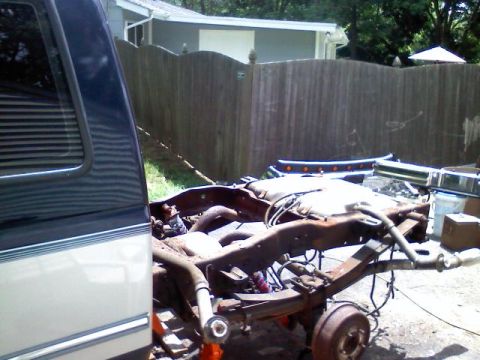

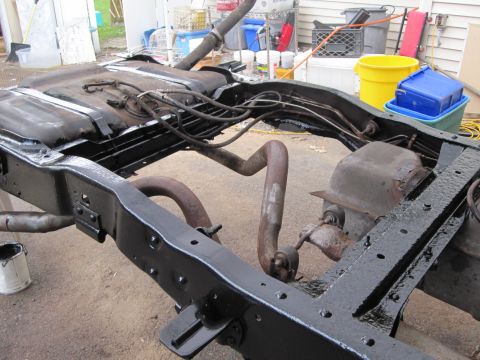

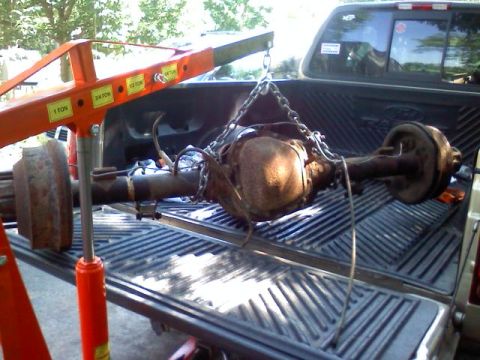

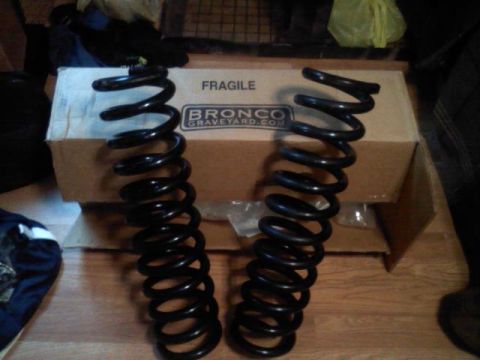

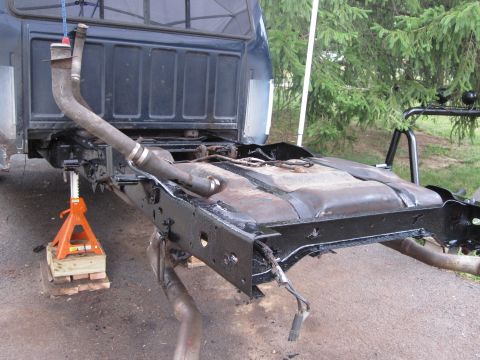

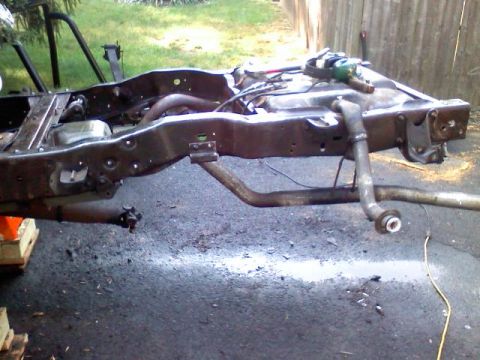

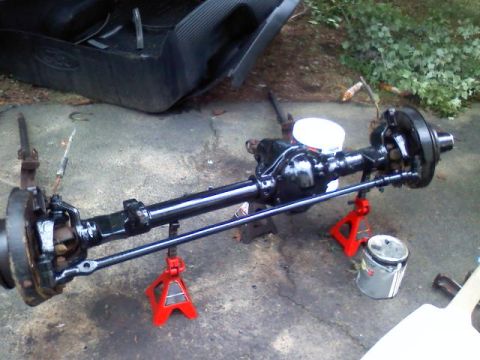

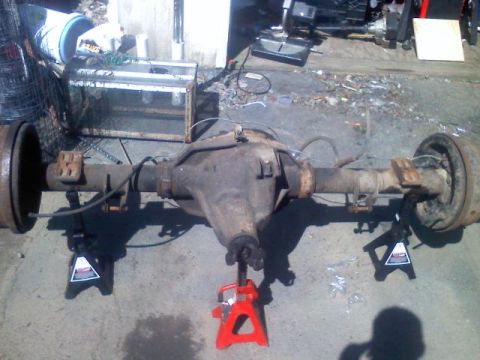

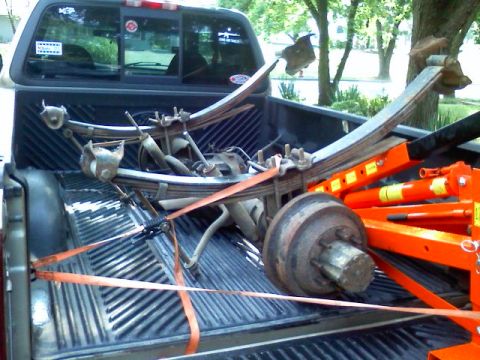

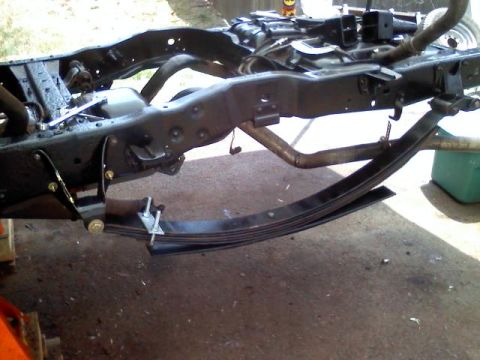

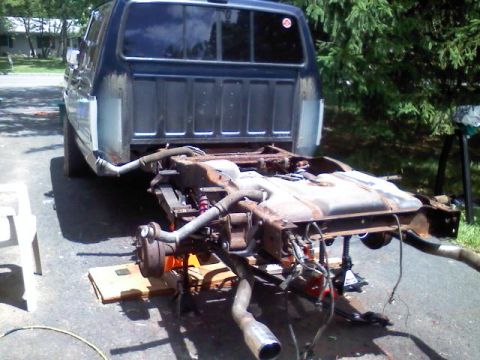

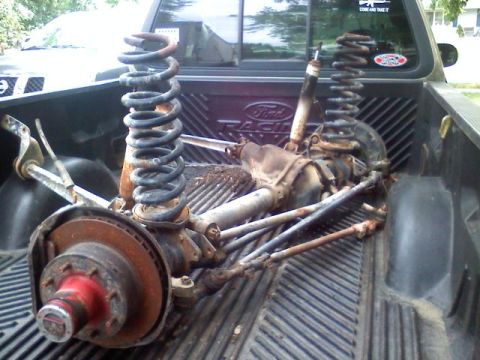

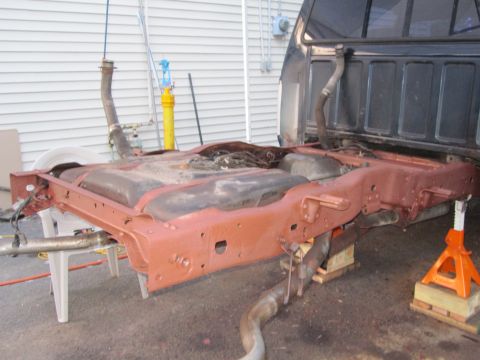

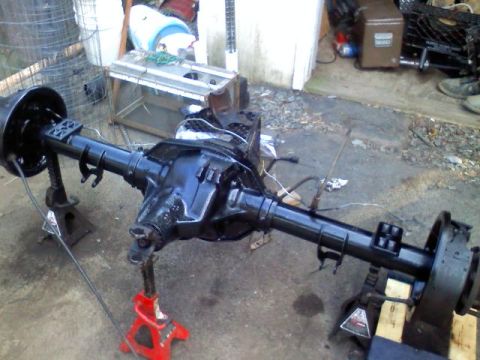

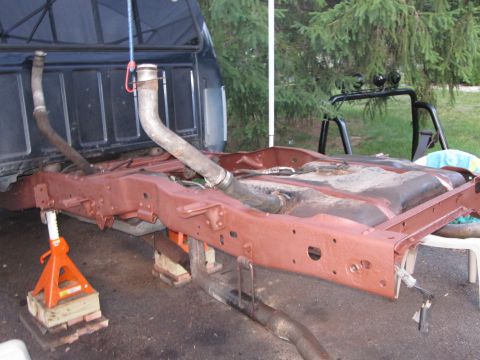

1993 Ford F-150 - Here is what Im starting with, wound up popping 3 of those tires on the way home. Definatley going to look alot different in a month or two… 1993 Ford F-150 - Bed is finally off, grinding rust away, remove the rear axle and everything in the next few days, need to paint and swap the 10.25 in shack… 1993 Ford F-150 - Grindin all the rust just getting prepped for everything 1993 Ford F-150 - Have the 8.8 off and out from under the truck finally 1993 Ford F-150 - The mighty 10.25 (and a harbor freight engine hoist) boy this thing is heavy need to take the leafs, sway bar and shocks off before I attem… 1993 Ford F-150 - ready for some wire wheels then paint 1993 Ford F-150 - Got it hoisted and all the crap off 1993 Ford F-150 - Cleaned up and almost done being painted 1993 Ford F-150 - D44 swapped to 8 lug, currently has 4" springs on it but Ill be swapping them for 6-6.5's from jeffs bronco grave yard 1993 Ford F-150 - primed with rustoleum rusty metal primer 1993 Ford F-150 - another shot of the primed frame 1993 Ford F-150 - Top coated with rustoleum high performance protective enamal 1993 Ford F-150 - another shot of the frame all coated 1993 Ford F-150 - leaf springs hanging 1993 Ford F-150 - all weight on the axle, needs a few more inches but will correct that after front is done 1993 Ford F-150 - Got to love the ups man! superlift 6-6.5" coils 1993 Ford F-150 - most of the way cleaned up and painted 1993 Ford F-150 - Front end on jacks, allowing the wet noodle suspension to flop all over the place, cant wait to junk this ttb! 1993 Ford F-150 - The classic ttb good bye shot 1993 Ford F-150 - The front grille and headlight design suggest a 1992 model year Ford F-150. 1993 Ford F-150 - A close-up view of a welded metal bracket, likely a vehicle part, resting on a red surface with visible text. 1993 Ford F-150 - Vehicle suspension components are visible, supported by jack stands and a floor jack during maintenance. 1993 Ford F-150 - Close-up of the front suspension of a 1993 Ford F-150, showing the coil spring and brake assembly. 1993 Ford F-150 - Finally got the arms bolted in place, had to do alot of trimming on body mount 1993 Ford F-150 - Another shot of the axle bolted on, full drop 1993 Ford F-150 - Finally sitting on its own weight 1993 Ford F-150 - another angle, need to do something about the coil bow on both sides 1993 Ford F-150 - Needs shocks, track bar and pan hard bar put in, then Ill do brakes, adjust rear(need to add an extra leaf) and it will be good to go 1993 Ford F-150 - Finally on some mud tires 1993 Ford F-150 - Stock track bar/pan hard bar is about an inch too long, need to get it shortened unfortunately 1993 Ford F-150 - 80-96 jeffs bronco grave yard extended lines, need to grind them down to fit the solid axle 1993 Ford F-150 - Both lines after the bench grinder 1993 Ford F-150 - This two-tone pickup truck features a lifted suspension and oversized tires, suggesting off-road modifications. 1993 Ford F-150 - Track bar in, shocks in, need to bleed brakes and get shims to cure coil bow 1993 Ford F-150 - Finally got everything together, ready for alignment, tweaking of solid axle and continue with restoration after that 1993 Ford F-150 - Front shot 1993 Ford F-150 - After some test driving, need to tweak somethings getting some death wobble, might need a crossmember for the radius arm brackets 1993 Ford F-150 - First time offroad since the sas, actually first time this truck was ever off road it was clear that none of the previous owners wheeled it 1993 Ford F-150 - Couldn't go as crazy as I wanted to the track bar and engine cross member are still hitting when I hit a hole to hard but truck was doing r… 1993 Ford F-150 - action shot
Browse all 64 photos
