1979 Ford Bronco

Home/ Registry/ Ford/ Bronco/ 1978–1979/ 1979 Bronco supermotors.net/registry/24302

1979 Ford Bronco

48 photos documented since 2014 ♡ Follow this build

Photos

1979 Ford Bronco - Cover of the 1979 Bronco Electrical & Vacuum Troubleshooting Manual, a mechanic with tools.

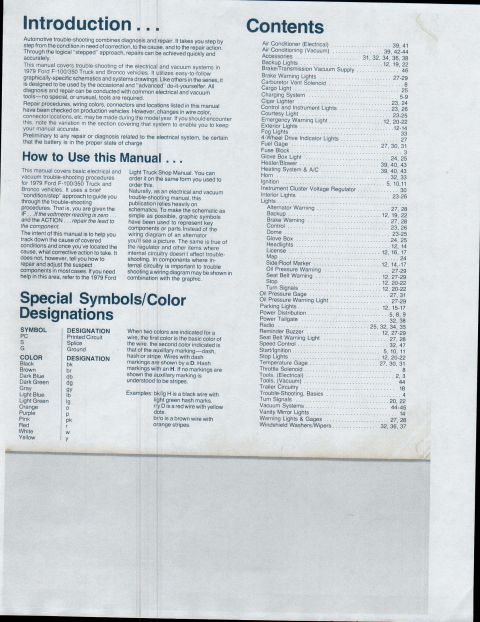

1979 Ford Bronco - Table of contents lists sections like Introduction, How to Use This Manual, and Special Symbols/Color Designations.

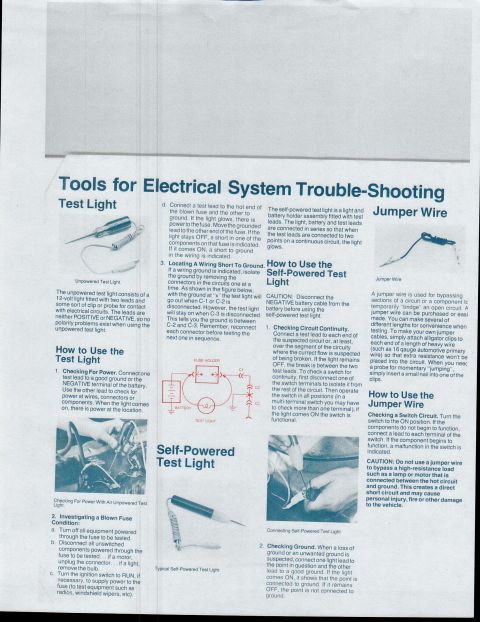

1979 Ford Bronco - This document details how to use test lights and jumper wires for electrical system troubleshooting.

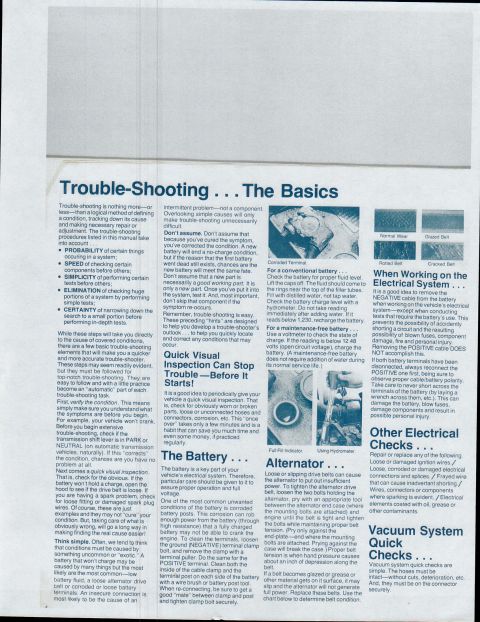

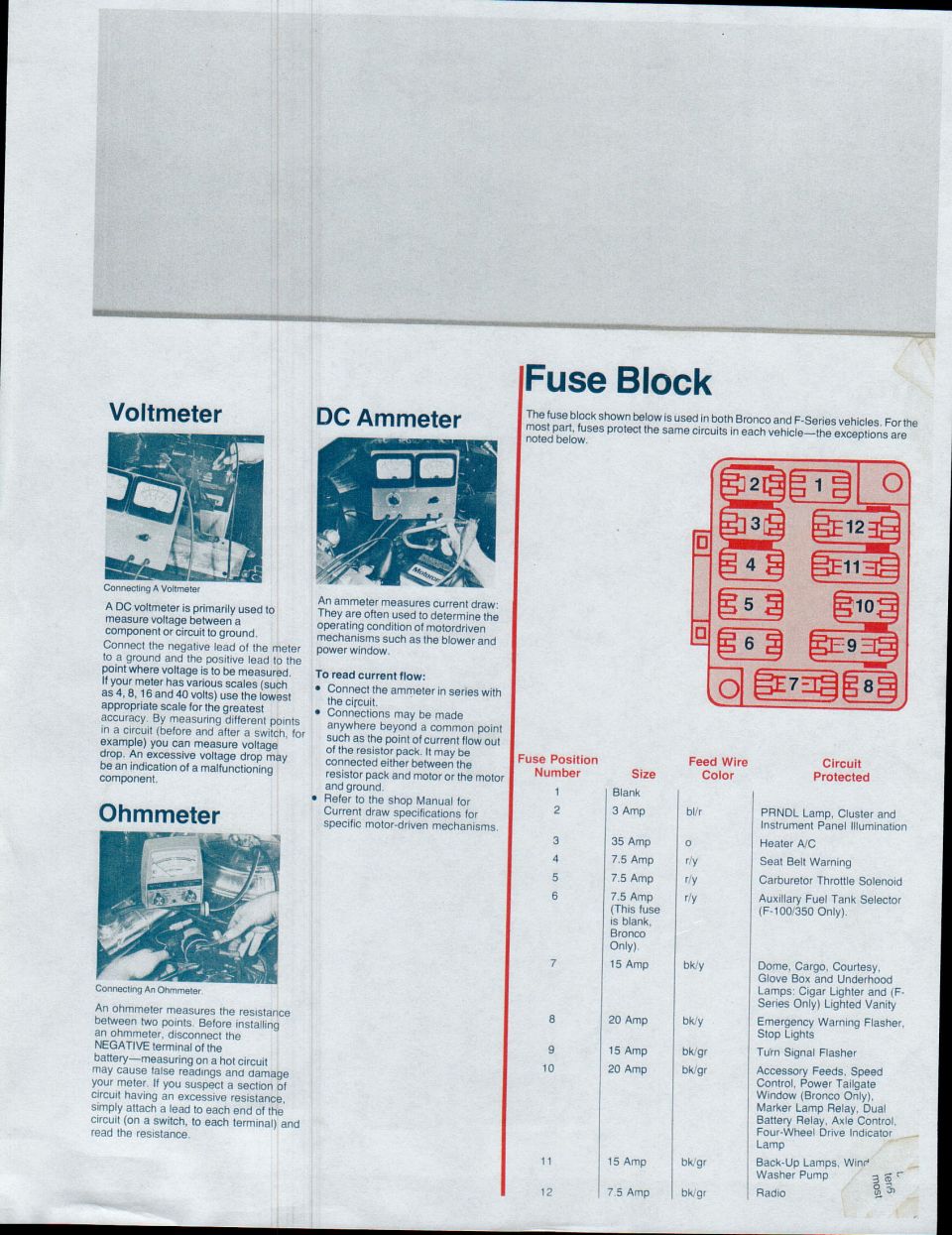

1979 Ford Bronco - This document provides basic troubleshooting advice for vehicle electrical systems.

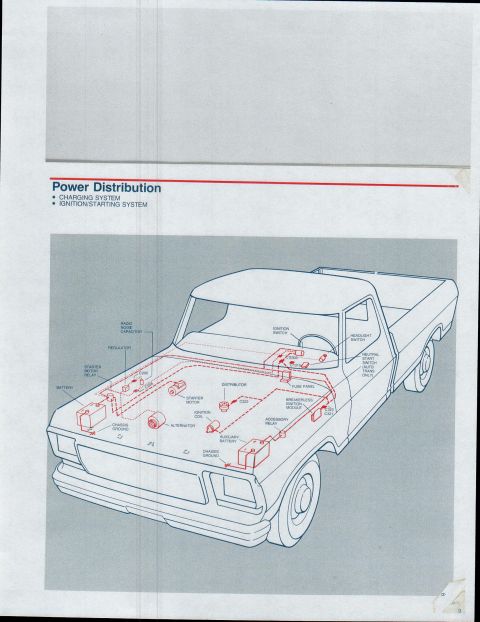

1979 Ford Bronco - This diagram illustrates the power distribution for the charging and ignition/starting systems of a 1970s pickup truck.

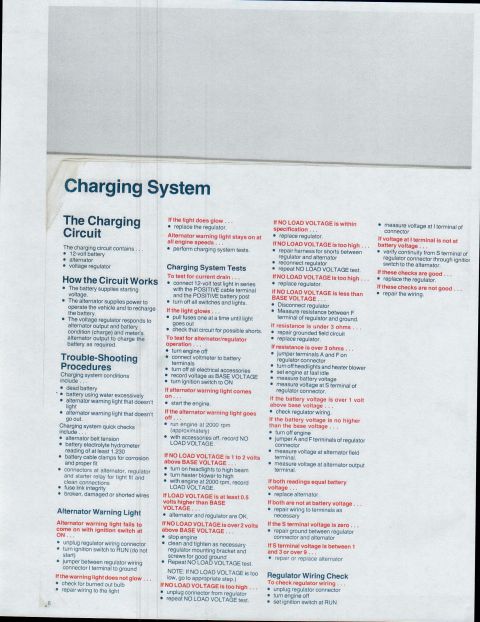

1979 Ford Bronco - Charging system diagram details troubleshooting and wiring for automotive electrical systems.

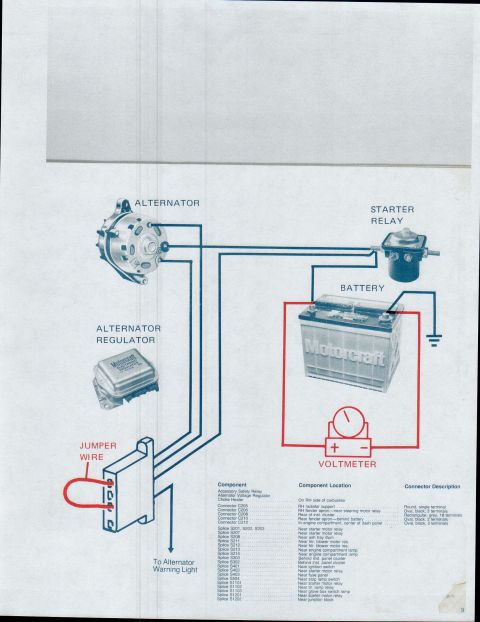

1979 Ford Bronco - This diagram illustrates the electrical system connections for a vehicle's charging and starting components.

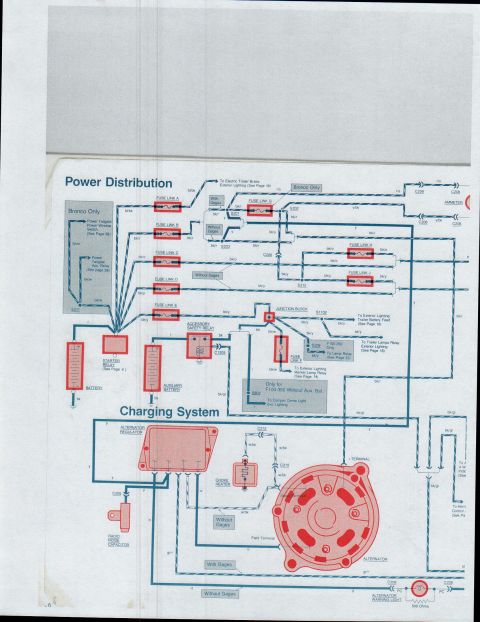

1979 Ford Bronco - This diagram details the power distribution and charging system components for a vehicle.

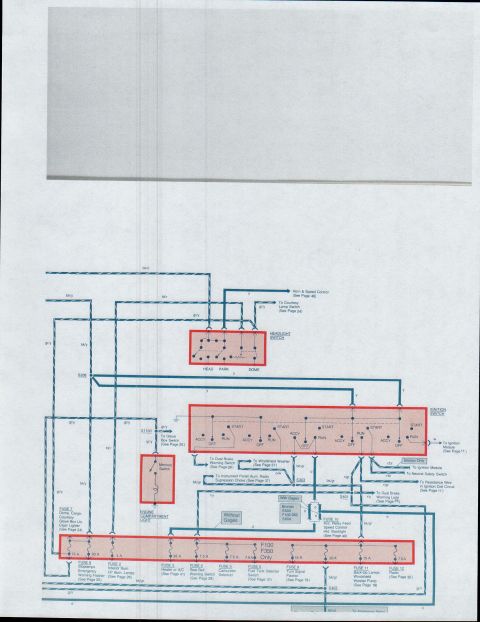

1979 Ford Bronco - This diagram details electrical components and circuits, likely for a vehicle's wiring system.

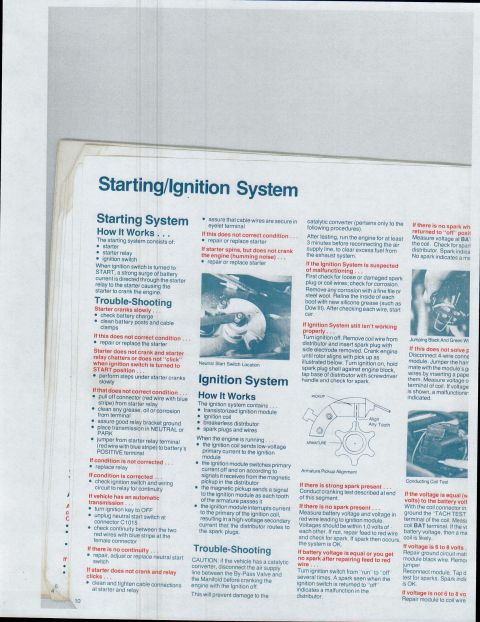

1979 Ford Bronco - Page from a manual detailing the starting and ignition system, including diagrams and troubleshooting tips.

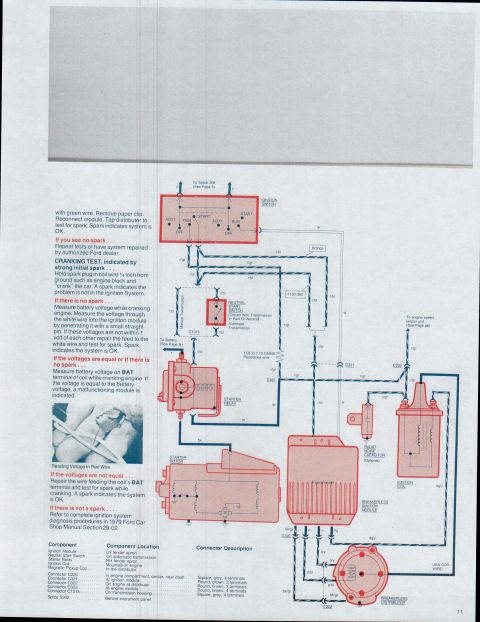

1979 Ford Bronco - This diagram illustrates the electrical connections for a vehicle's ignition system components.

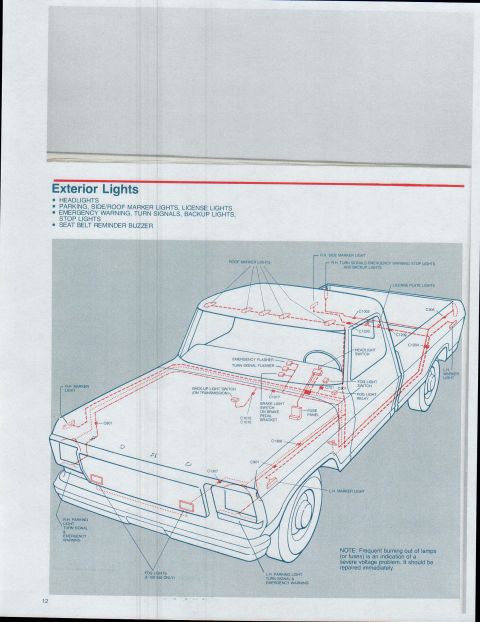

1979 Ford Bronco - Diagram illustrates the exterior lights and wiring for a pickup truck.

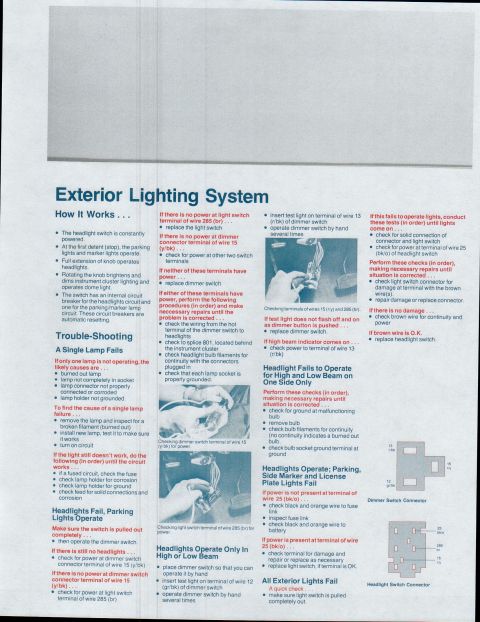

1979 Ford Bronco - This document details the exterior lighting system, including troubleshooting for various lighting failures.

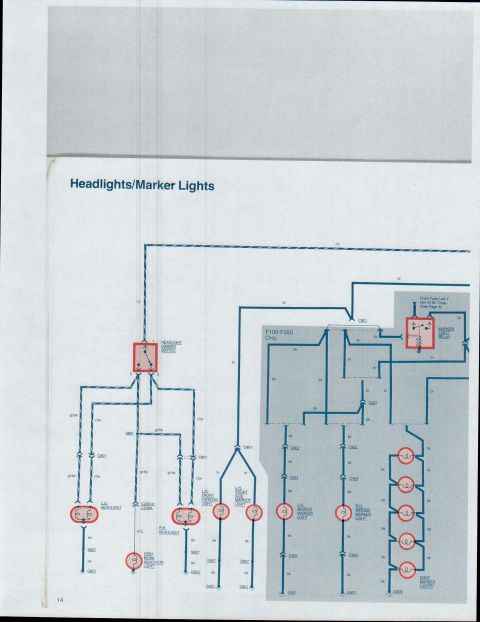

1979 Ford Bronco - Diagram shows headlight and marker light wiring for Ford F100-F350 models.

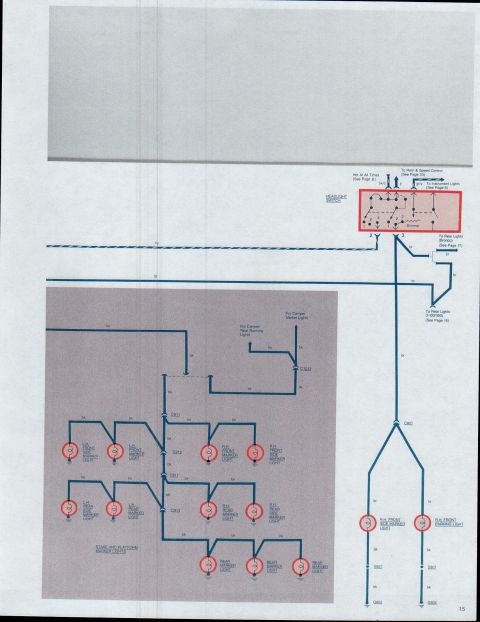

1979 Ford Bronco - This is a wiring diagram illustrating the electrical connections for various lights on a vehicle.

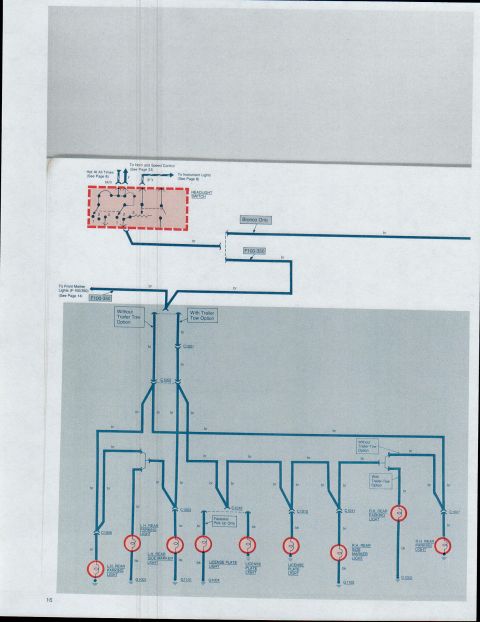

1979 Ford Bronco - This diagram details electrical connections for various vehicle lights and options, referencing specific components and configurations.

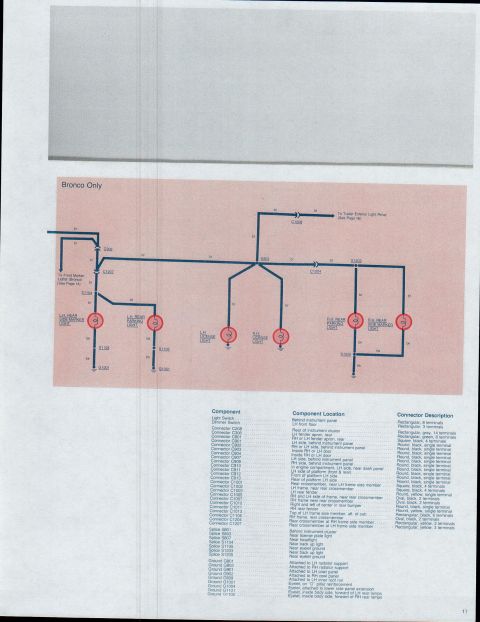

1979 Ford Bronco - This diagram details the wiring specific to the Bronco model, including a comprehensive list of components and their locations.

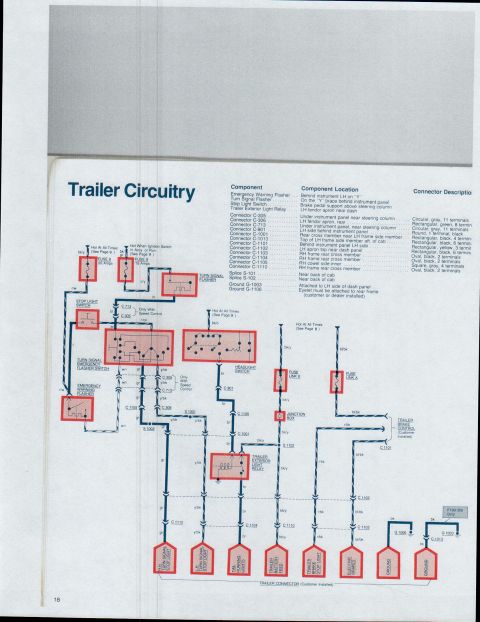

1979 Ford Bronco - This diagram details the trailer circuitry, including component locations and connector descriptions.

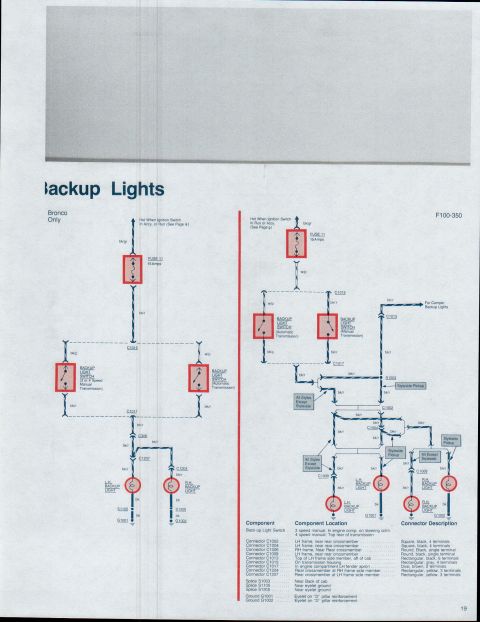

1979 Ford Bronco - This is a wiring diagram for backup lights, detailing component locations and connector descriptions.

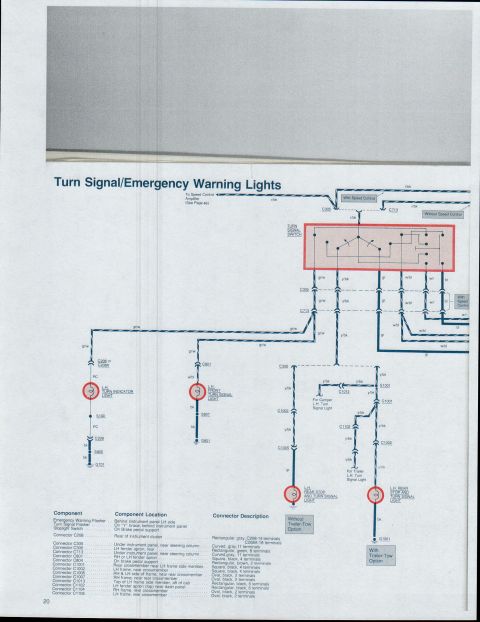

1979 Ford Bronco - This diagram details the electrical routing for turn signal and emergency warning lights, including component locations and connector descr…

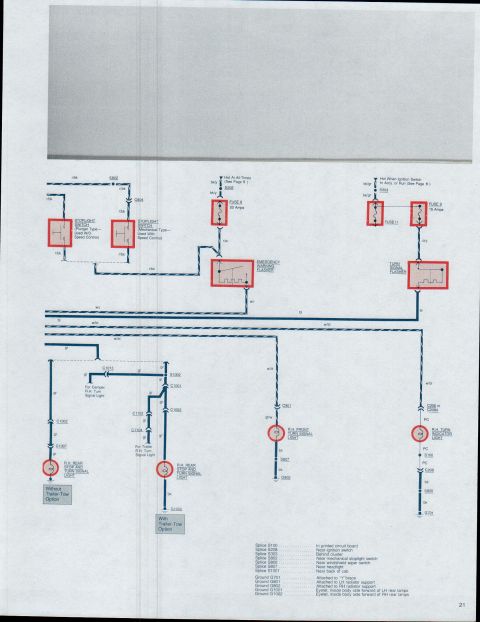

1979 Ford Bronco - This diagram illustrates the electrical system, detailing fuses, relays, and connections for various vehicle functions.

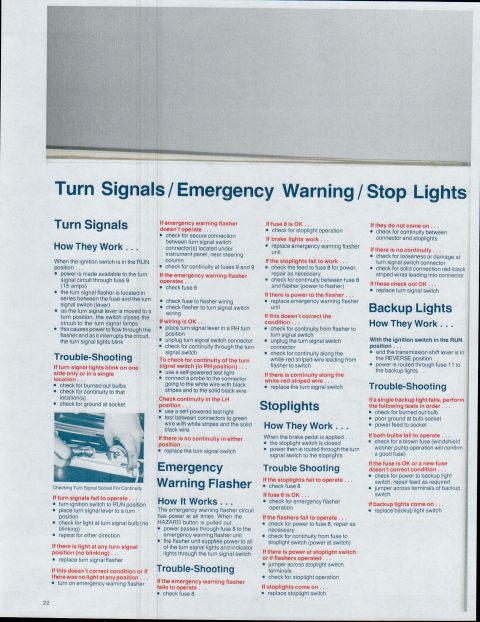

1979 Ford Bronco - Wiring manual page with diagrams and troubleshooting for vehicle lighting systems.

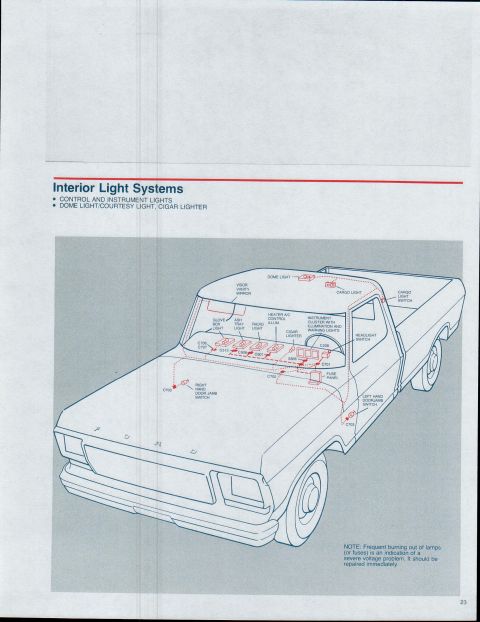

1979 Ford Bronco - This diagram illustrates the interior light systems of a truck, detailing various light components and their locations.

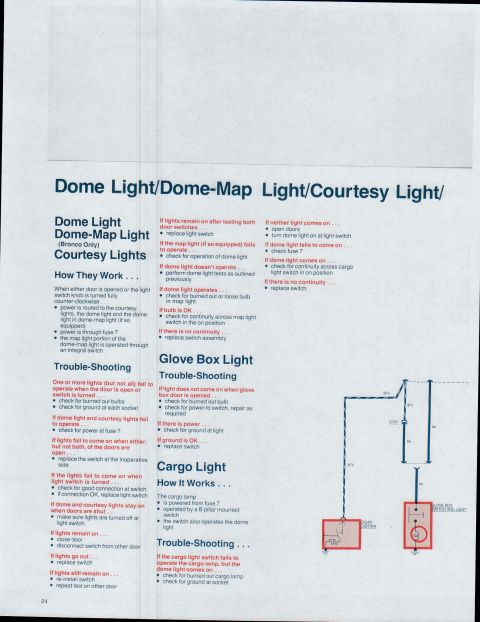

1979 Ford Bronco - This document details troubleshooting steps and wiring diagrams for various interior lights in a vehicle.

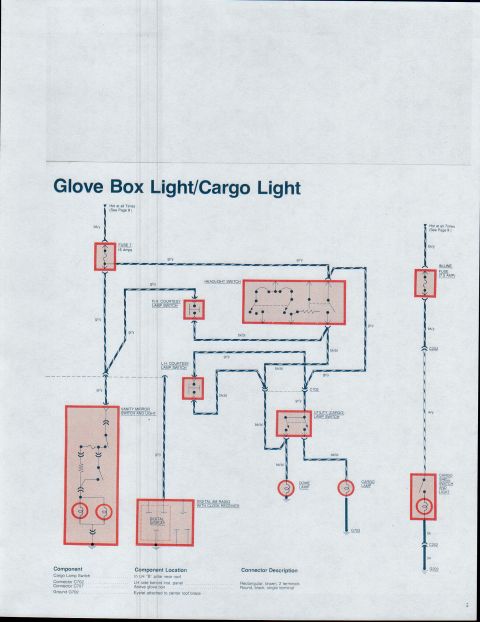

1979 Ford Bronco - This diagram illustrates the wiring for the glove box light and cargo light, detailing components and their connections.

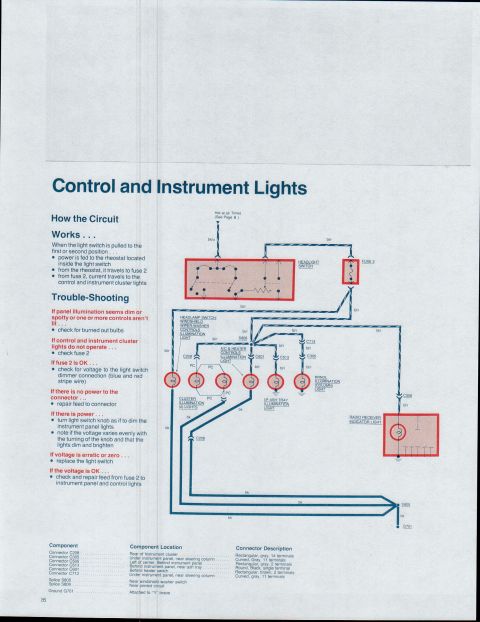

1979 Ford Bronco - Control and Instrument Lights wiring diagram with troubleshooting guide and component information.

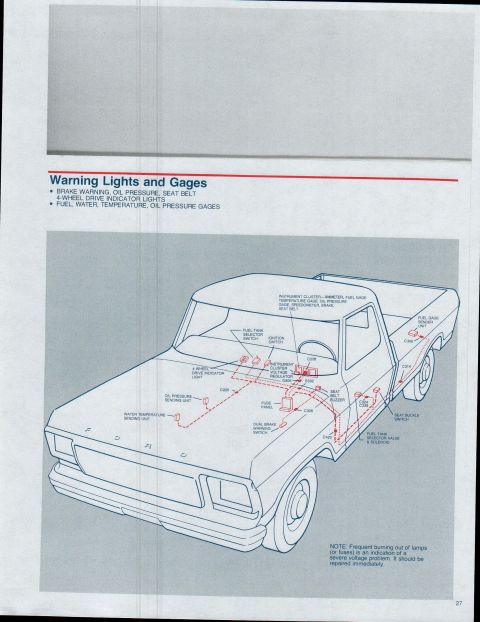

1979 Ford Bronco - This diagram illustrates the electrical system for warning lights and gauges in a pickup truck.

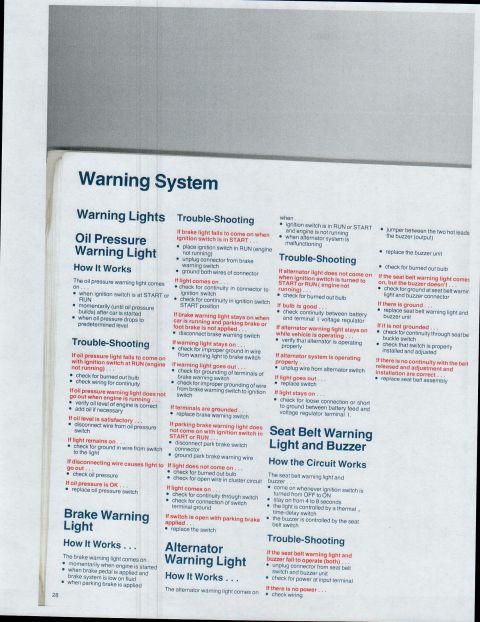

1979 Ford Bronco - This document page details troubleshooting for various warning lights and systems in a vehicle.

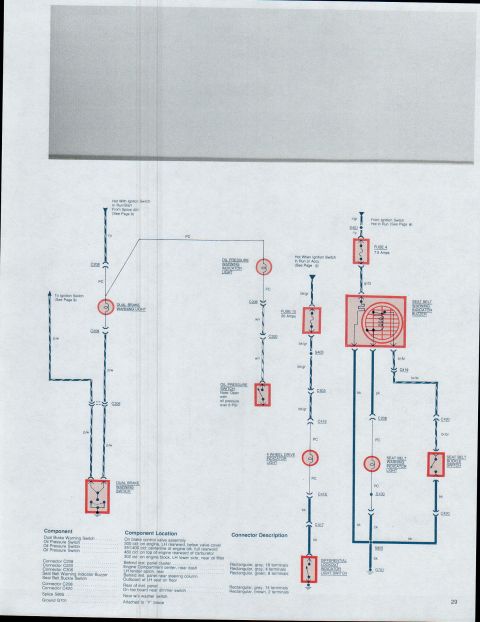

1979 Ford Bronco - This diagram details wiring components and their locations, likely for a vehicle's electrical system.

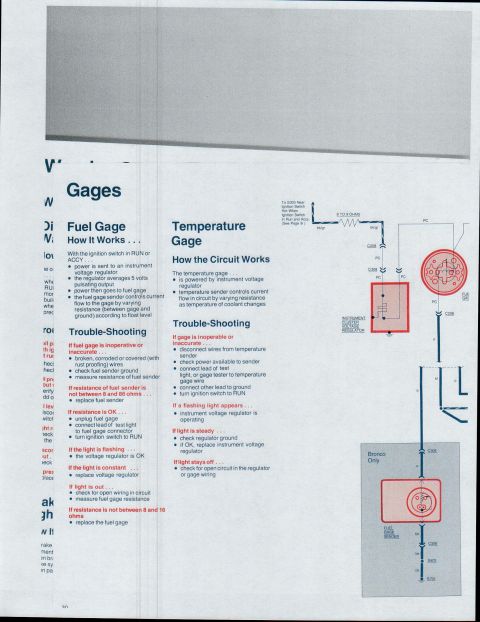

1979 Ford Bronco - Diagram details fuel and temperature gauge circuits and troubleshooting for a Bronco.

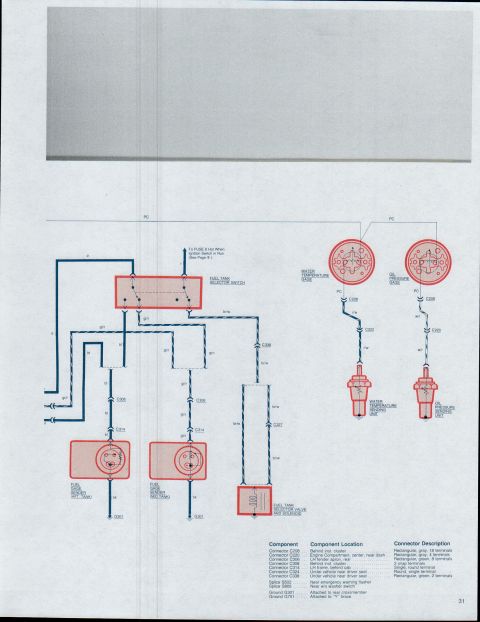

1979 Ford Bronco - This is a diagram of a vehicle's electrical system, detailing fuel and gauge components.

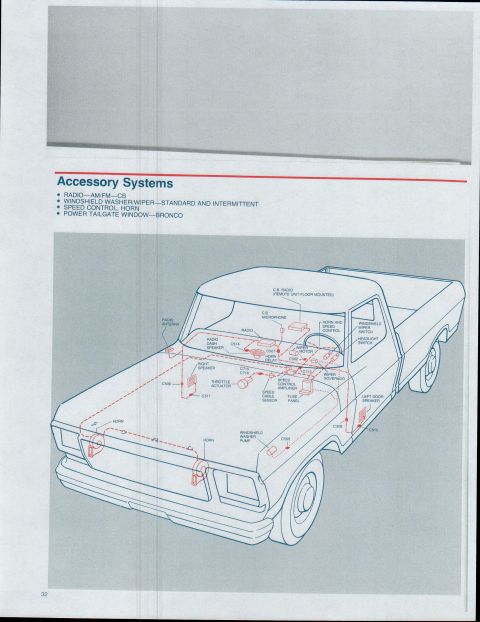

1979 Ford Bronco - This diagram illustrates the accessory systems and wiring for a pickup truck.

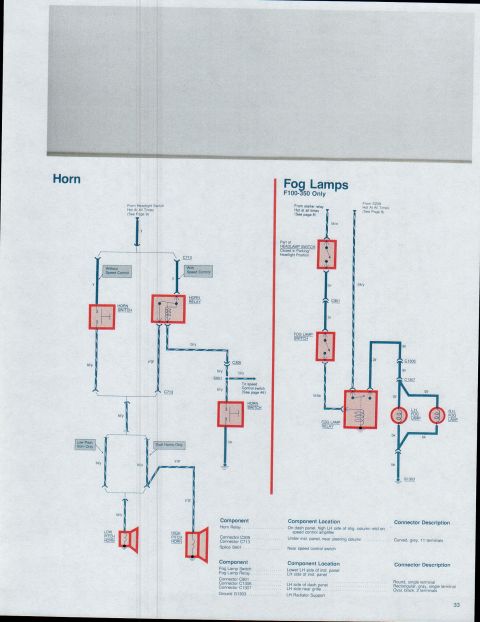

1979 Ford Bronco - This diagram details the wiring for the horn and fog lamp systems on Ford F100-350 models.

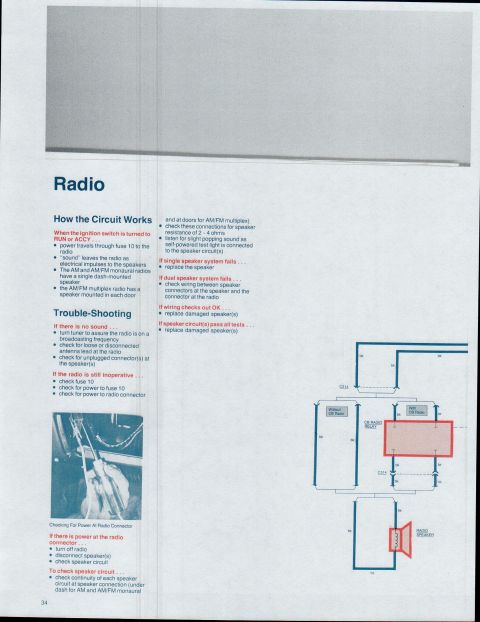

1979 Ford Bronco - Diagram details how a car radio circuit works and troubleshooting steps.

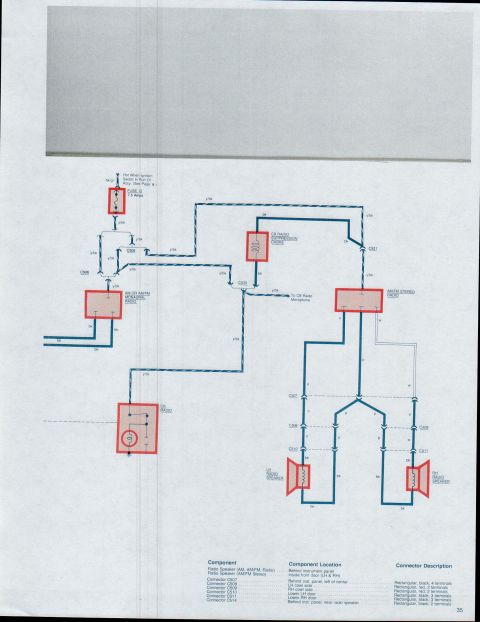

1979 Ford Bronco - This is a wiring diagram for a vehicle's audio system, detailing connections for the radio and speakers.

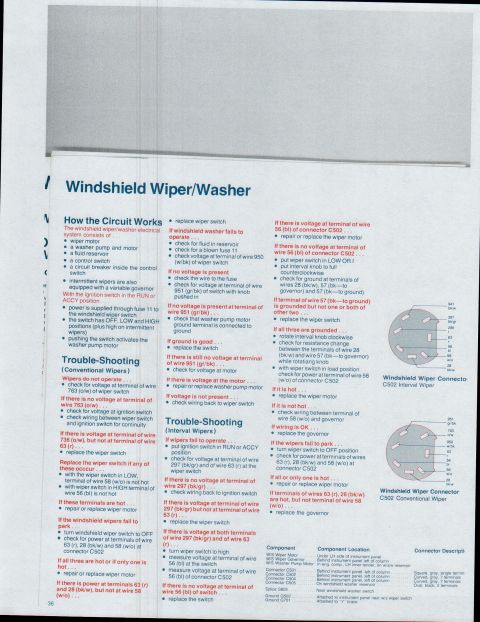

1979 Ford Bronco - Diagram detailing the circuit and troubleshooting for a windshield wiper/washer system.

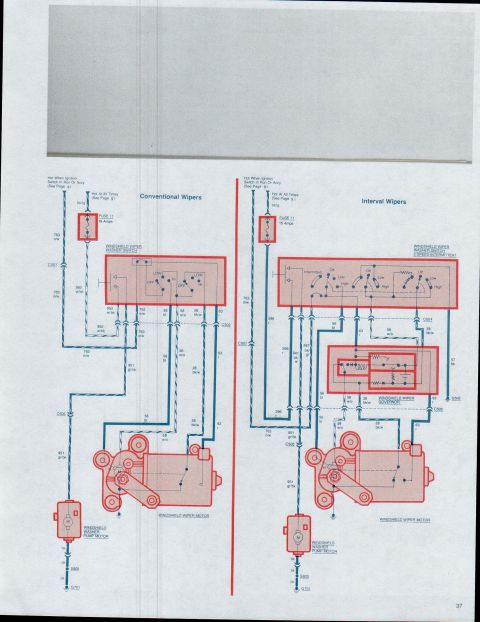

1979 Ford Bronco - This diagram illustrates the electrical circuits for both conventional and interval windshield wiper systems.

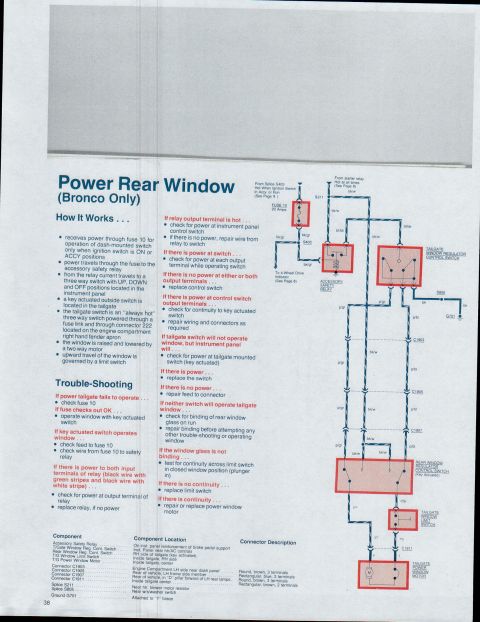

1979 Ford Bronco - Diagram details the power rear window system for a Bronco, including how it works and troubleshooting tips.

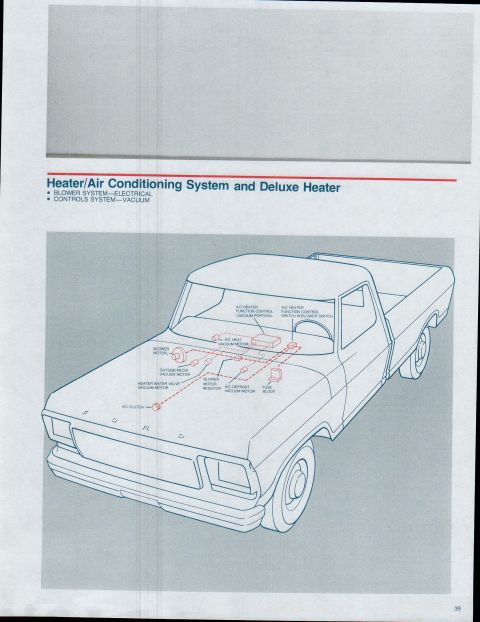

1979 Ford Bronco - This diagram illustrates the heater and air conditioning system of a pickup truck, detailing its electrical and vacuum controls.

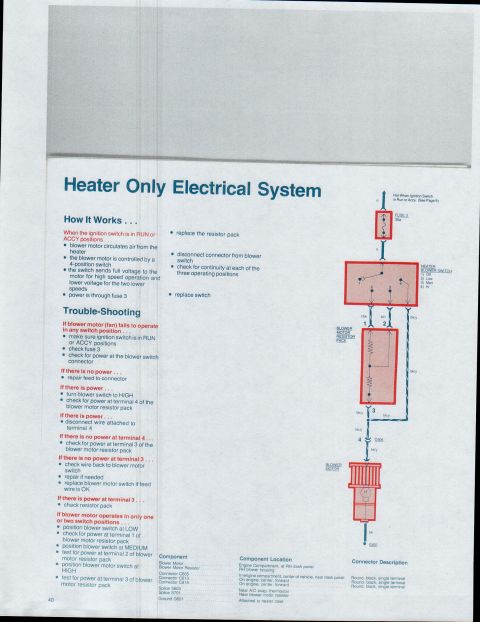

1979 Ford Bronco - This document details the heater-only electrical system, including its operation and troubleshooting.
