1992 Ford Bronco
Home/ Registry/ Ford/ Bronco/ 1992–1996/ 1992 Bronco supermotors.net/registry/21414

1992 Ford Bronco

19 photos documented since 2010 ♡ Follow this build

Photos

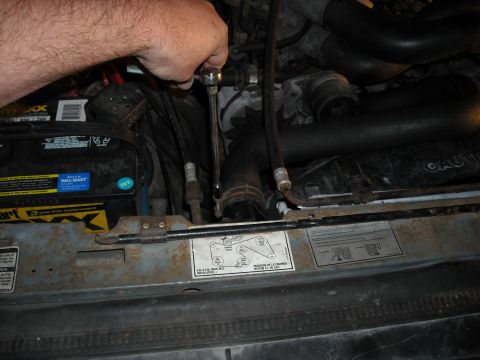

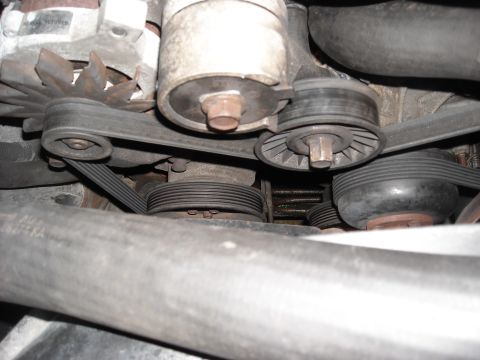

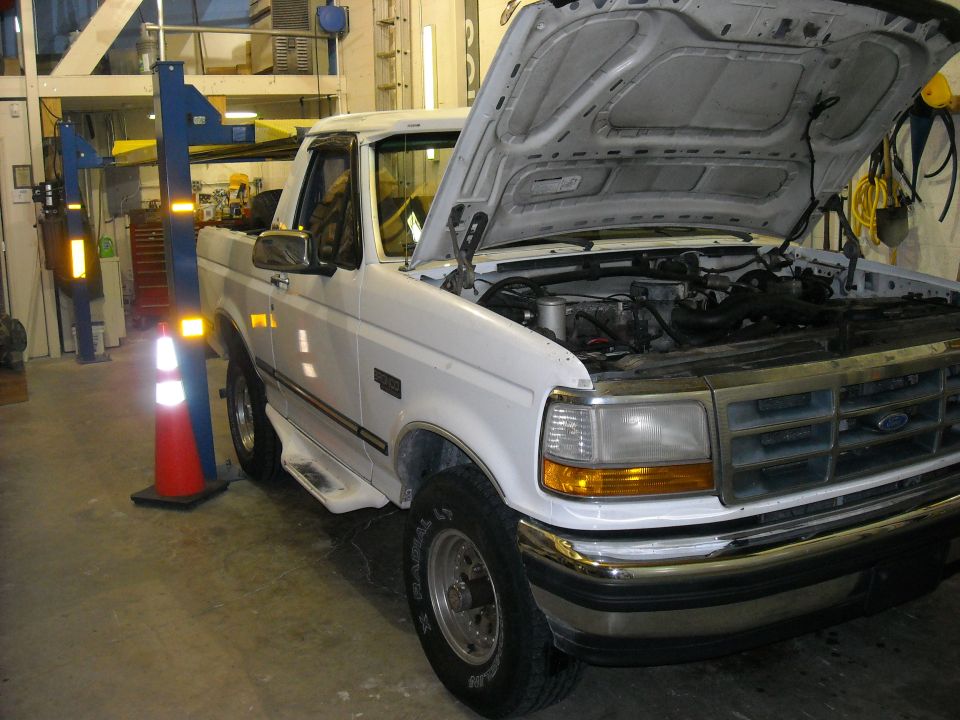

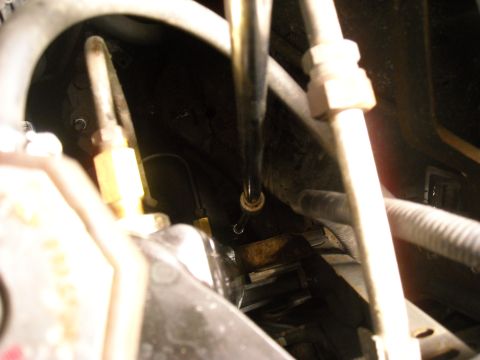

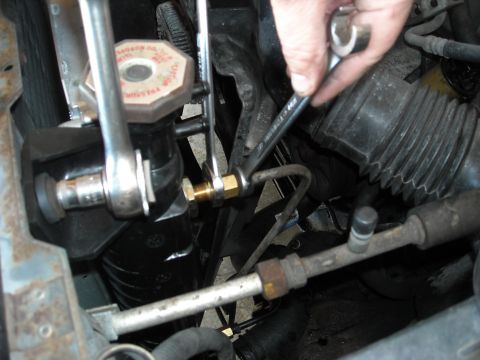

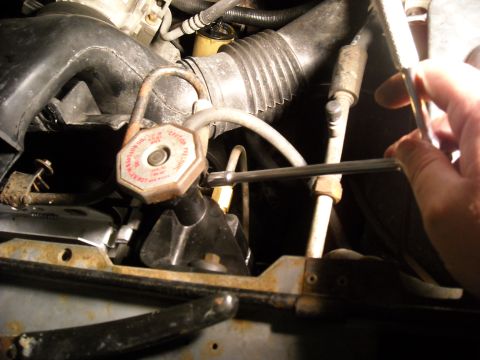

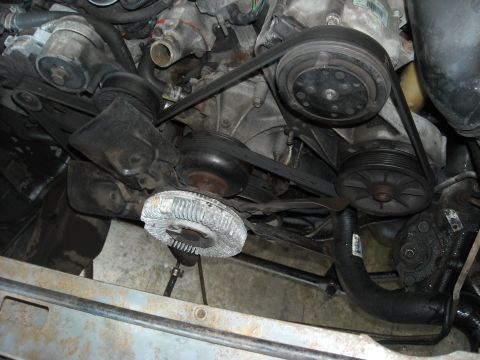

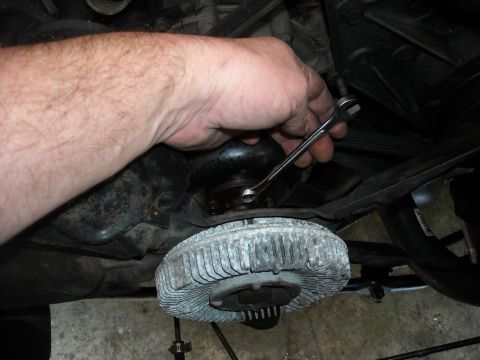

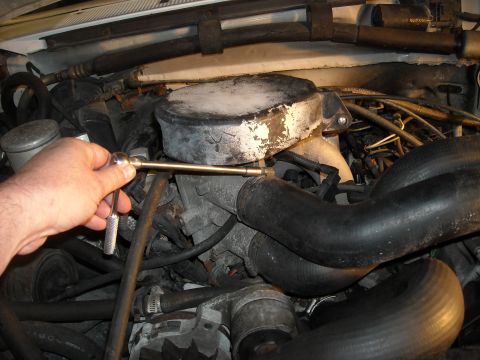

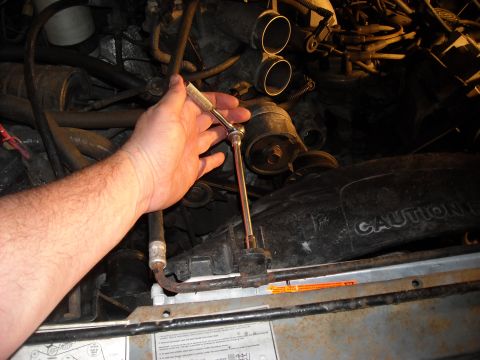

1992 Ford Bronco - Here is the patient, ready for surgery. 1992 Ford Bronco - That's the water pump way down there.. Looks like we need to move some things around. 1992 Ford Bronco - I decided to remove the radiator so I would not accidentally damage it. I used an 8MM socket to take off the hose clamps 1992 Ford Bronco - I also took off the rubber air inlets so I could have more room to work. 8MM works here also 1992 Ford Bronco - A 10MM is used for the fan shroud and the radiator supports. The extension is helpful at this stage. 1992 Ford Bronco - This small line goes to the intake. I only removed it from this side and swung it out of the way and let it lay on the pass side fender are… 1992 Ford Bronco - I used a few extensions to get to that lower radiator hose clamp. As a footnote, I used a reducing adapter for the smaller socket. Most of… 1992 Ford Bronco - a 1/2 inch line wrench and a 5/8 open end is used to take off the transmission lines. USE A LINE WRENCH. trying to cheap out here will prob… 1992 Ford Bronco - With the radiator and shroud out of the way, this is what we are looking at. There is a LOT more room to work now. Notice the lower is stil… 1992 Ford Bronco - an 11MM box end wrench was used for the fan bolts. I found it easier to do this while the belt was still on. I like the box end because the… 1992 Ford Bronco - A 5/8 socket, a solid socket wrench and a 4 foot leverage makes quick work of the belt. 1992 Ford Bronco - After removing the two small lines at the top of the pump, it was time to remove the AC/power steering bracket. This takes 13 and 14MM sock… 1992 Ford Bronco - OK.. I got lazy and pulled out the air ratchet. 13MM bolts take off the rest of those holding on the water pump. If you are on a smooth con… 1992 Ford Bronco - This sediment did concern me a bit. It came off easy enough but, hopefully all of that rust is from the old radiator. In any case, I will f… 1992 Ford Bronco - The old pump verses the new pump.. Yeah, it was time for a new one. If you look at the old pump in about the 2:00 position, that is where i… 1992 Ford Bronco - Before putting the gasket sealer on, test fit the gasket first to make sure you have the correct side exposed. 1992 Ford Bronco - Once you put the gasket on and put the sealant on the other side, wipe off and excess. You DID clean the engine block already, right? 1992 Ford Bronco - Everything goes back together the same way it came off. You can't see it but I took the time to paint the fan blades black. Not a big deal. 1992 Ford Bronco - The only thing not shown is the leverage bar I used for the belt tension spring. This is all I needed and you can do this in your driveway…
