1986 Ford Bronco
Home/ Registry/ Ford/ Bronco/ 1980–1986/ 1986 Bronco supermotors.net/registry/21207

1986 Ford Bronco

48 photos documented since 2009 1 years documented ♡ Follow this build

Photos

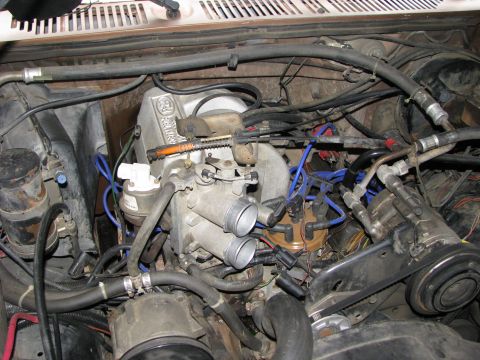

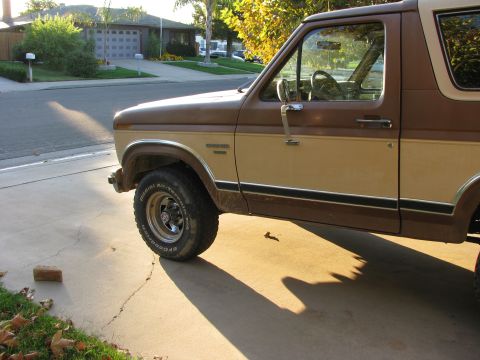

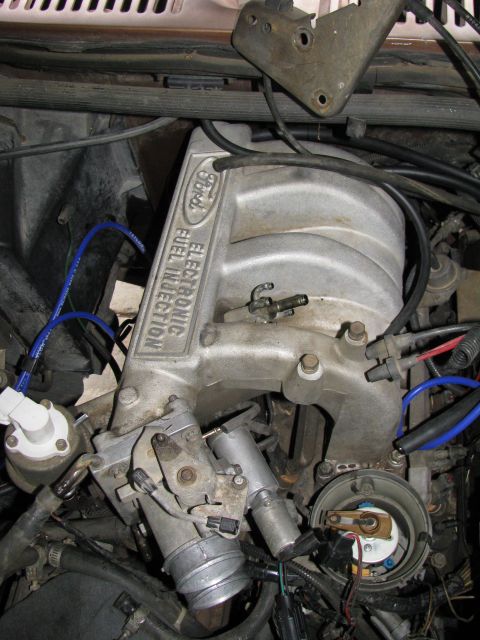

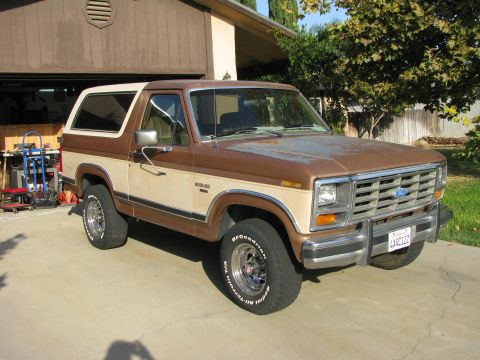

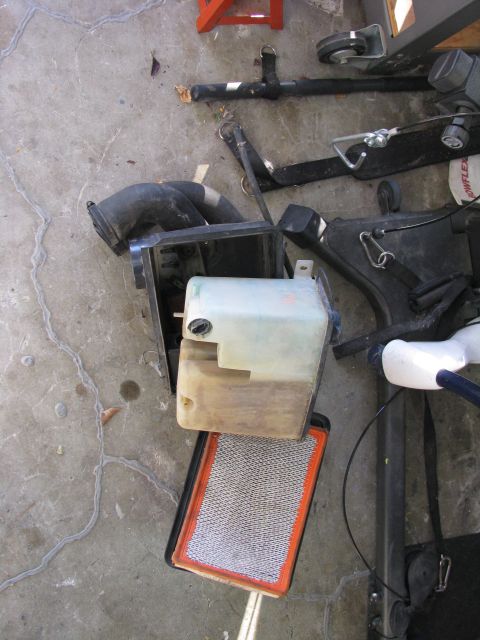

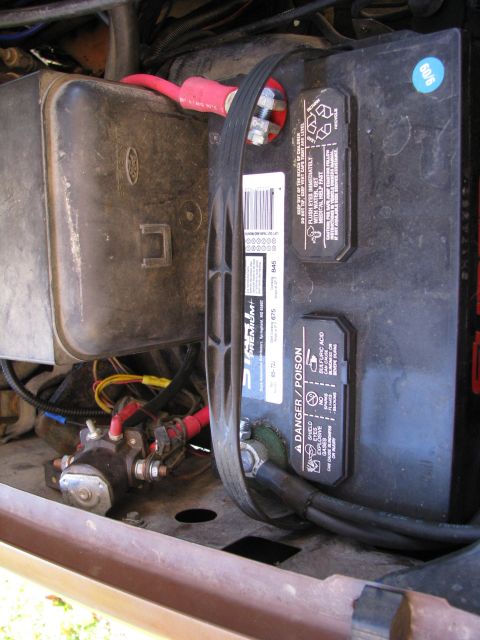

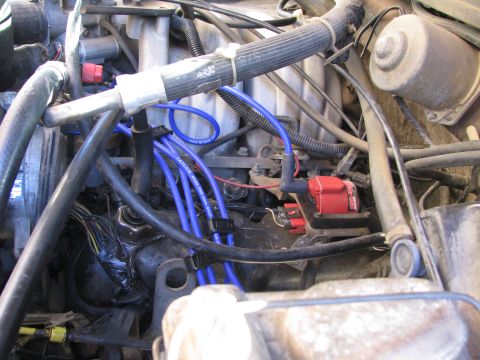

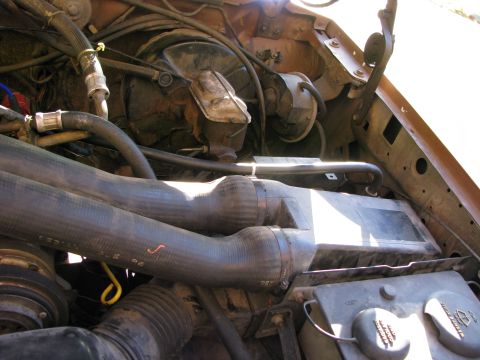

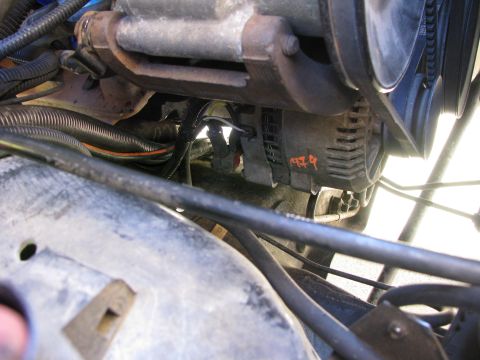

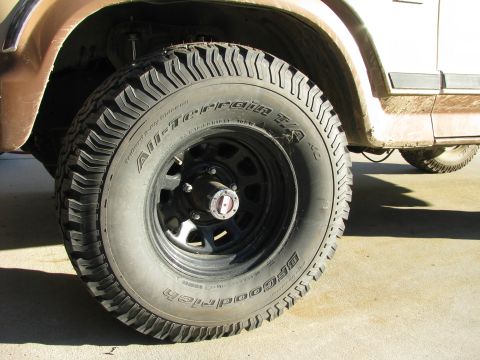

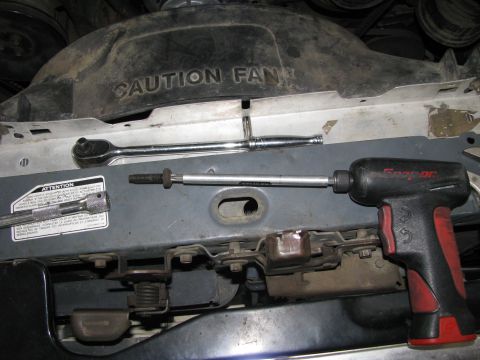

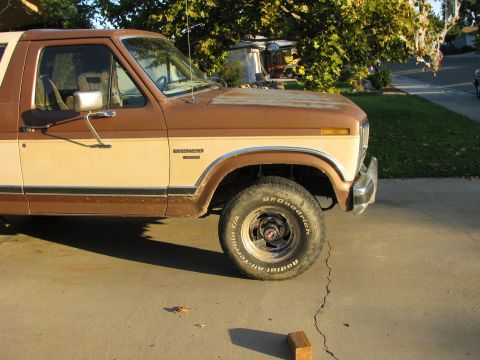

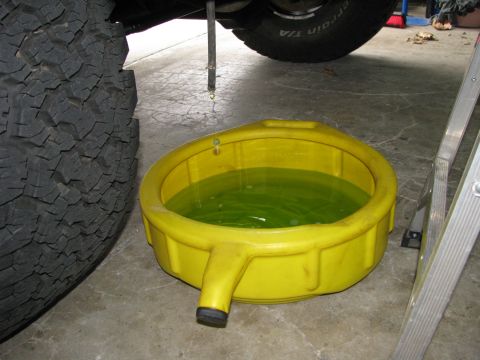

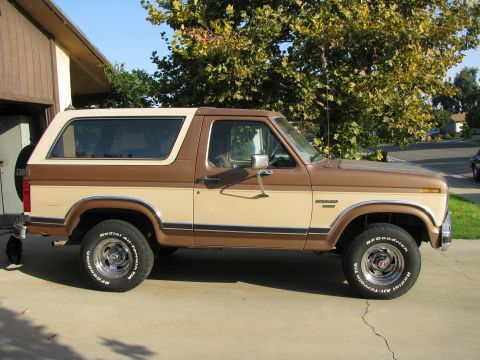

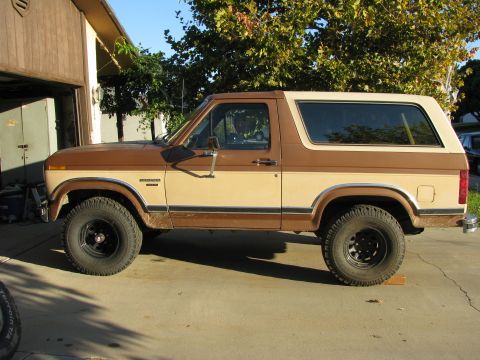

1986 Ford Bronco - worn & tired treads 1986 Ford Bronco - This 1986 Ford Bronco features a two-tone brown and tan paint scheme and is parked in front of a garage. 1986 Ford Bronco - This two-tone Ford Bronco is parked outside a garage with trees in the background. 1986 Ford Bronco - This 1986 Ford Bronco is shown in a two-tone brown and tan paint scheme. 1986 Ford Bronco - good for what they are...spare tires. 1986 Ford Bronco - much better with the 33x12.50x15 tires 1986 Ford Bronco - new tires & wheels 1986 Ford Bronco - better cables 1986 Ford Bronco - 3g alt 1986 Ford Bronco - new air filter housing (from an '87 f-150) and overflow/wiper fluid resivoirs. 1986 Ford Bronco - moved coil from under a/c compressor to where the air filter housing used to be. 1986 Ford Bronco - original air filter housing that was over the engine...pos. 1986 Ford Bronco - new wheels and tires 1986 Ford Bronco - drain the coolant, nice and green 1986 Ford Bronco - intake hoses removed 1986 Ford Bronco - vacuum lines, throttle and tv cables removed, wiring for iac, egr, tps and dissy unplugged, coolant hoses removed. 1986 Ford Bronco - torx 40 for the bitch of a bolt 1986 Ford Bronco - upper intake removed. 1986 Ford Bronco - kind of fuzzy, not too bad for 131k miles 1986 Ford Bronco - now to remove the lower manifold 1986 Ford Bronco - fuel, electrical, and vacuum lines removed. all bolts loose. time to yank it. 1986 Ford Bronco - nice and easy. now to clean grease and gasket material off. 1986 Ford Bronco - after cleaning gasket surfaces, removed valve covers and replaced those gaskets as well. 1986 Ford Bronco - now it's time to replace the timing chain 1986 Ford Bronco - loosened wp bolts, removed one at a time and poked thru cardboard in the position they go. 1986 Ford Bronco - now for the bottom four pan bolts. also removed oil pressure sender unit and extension. 1986 Ford Bronco - all cleaned up and ready for new sender. 1986 Ford Bronco - time for cleaning 1986 Ford Bronco - cover off, lots of slack in the chain. nice aluminum and plastic cam gear. there was a little bit missing on one of the teeth. 1986 Ford Bronco - nice and clean now 1986 Ford Bronco - now to chase all the threads. once that was done i sprayed carb cleaner to get rid of all the debris from the gasket removal. and a final s… 1986 Ford Bronco - new cloye double roller timing set. i left the fuel pump eccentric off since i have electric fuel pumps 1986 Ford Bronco - soaking cover in solvent to help get it clean. 1986 Ford Bronco - while front cover is soaking i started work on the balancer 1986 Ford Bronco - fuzzy picture but end is clean now but grooved from old seal 1986 Ford Bronco - installing sleeve after putting loctite on. nice flat piece of uhmw and dead blow put sleeve on nice and easy. 1986 Ford Bronco - shiny! 1986 Ford Bronco - pretty clean now 1986 Ford Bronco - had to knock the locating pins out a little, they were flush with the cover. 1986 Ford Bronco - new seal installed
Browse all 48 photos
