1986 Ford Bronco “DeciBolt (Loud and fast)”
Home/ Registry/ Ford/ Bronco/ 1980–1986/ “DeciBolt (Loud and fast)” supermotors.net/registry/1501

“DeciBolt (Loud and fast)”1986 Ford Bronco

144 photos documented since 2003 1 years documented ♡ Follow this build

Photos

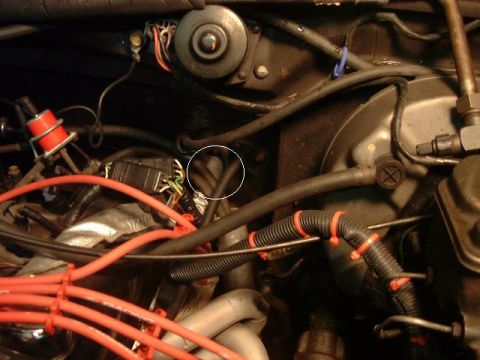

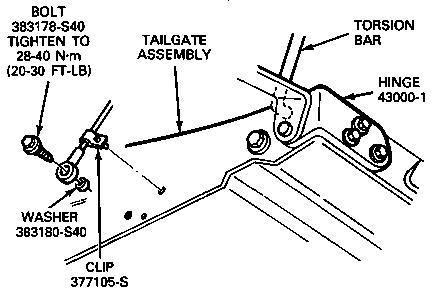

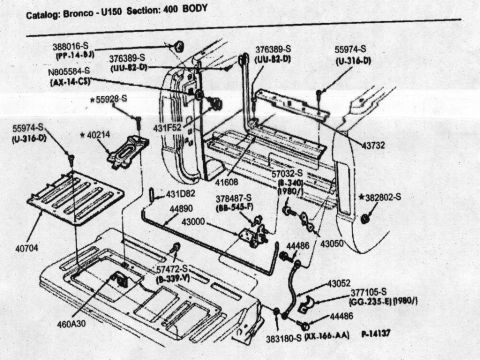

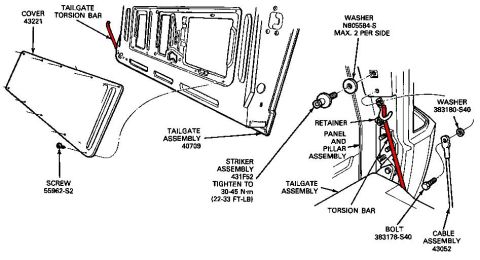

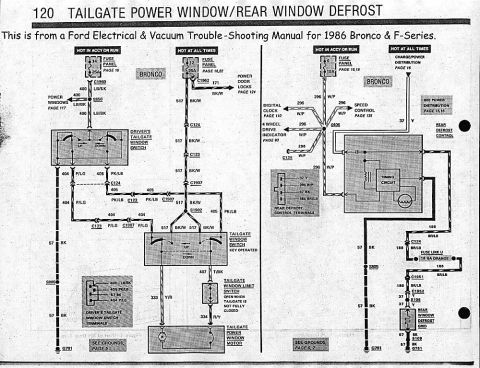

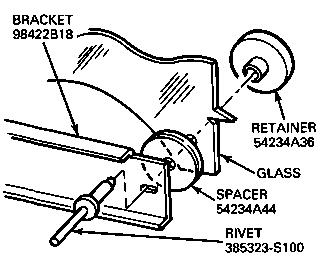

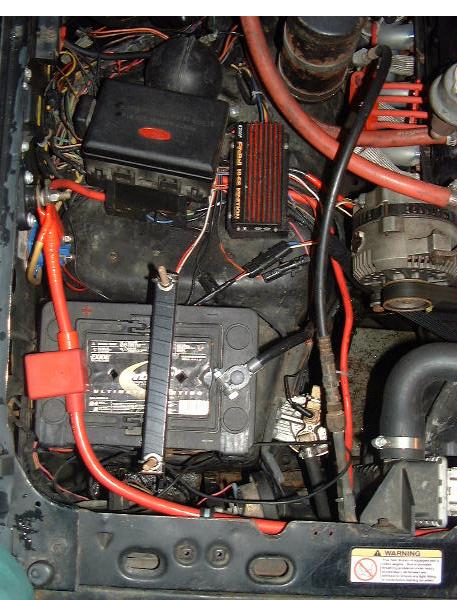

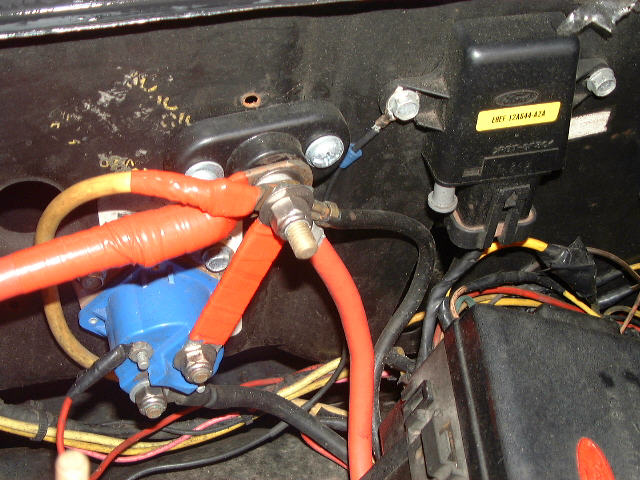

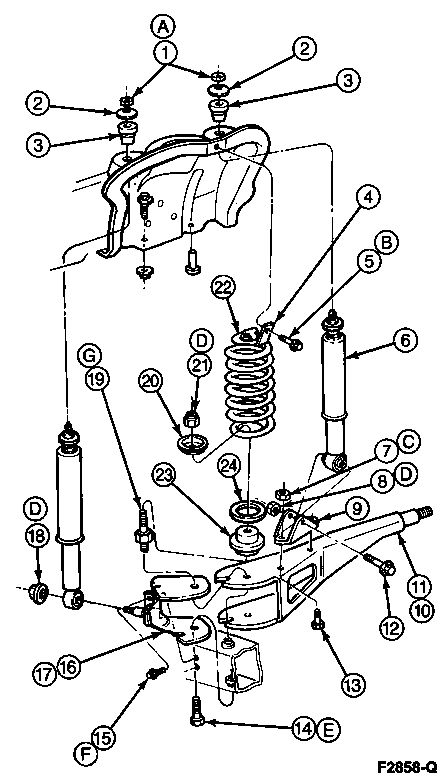

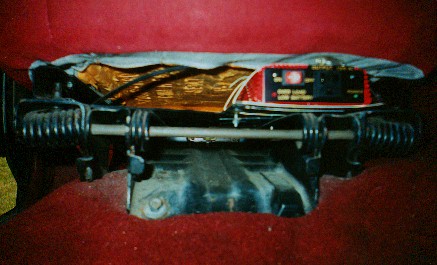

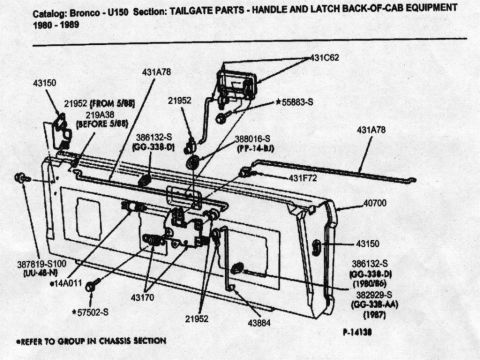

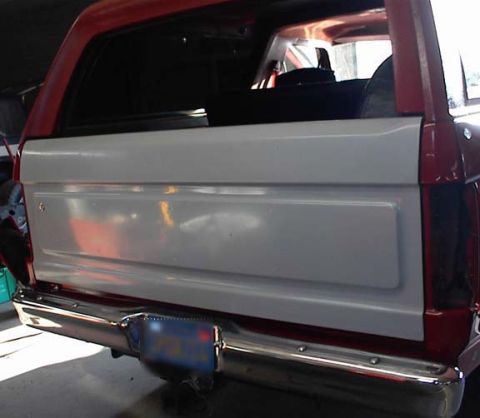

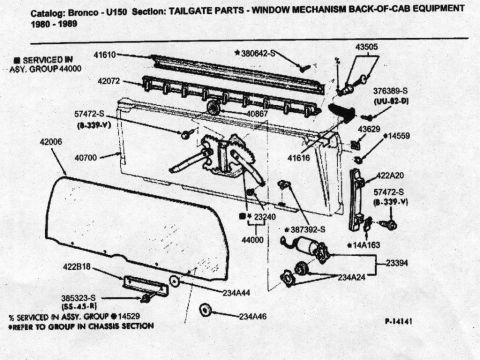

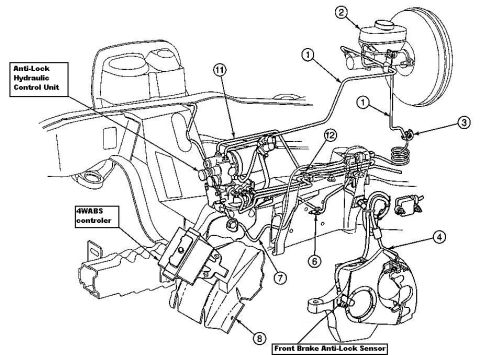

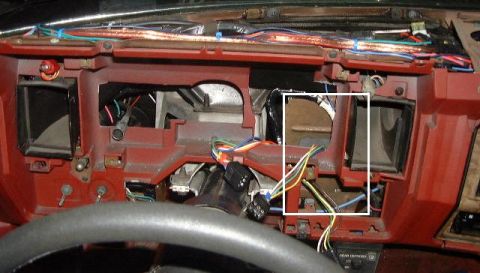

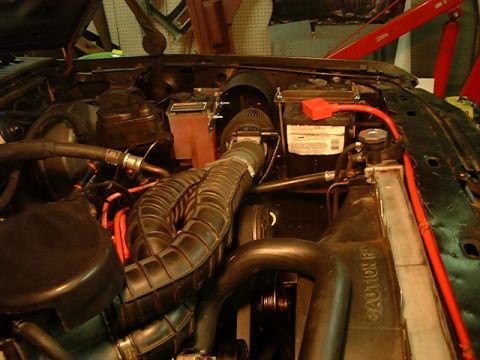

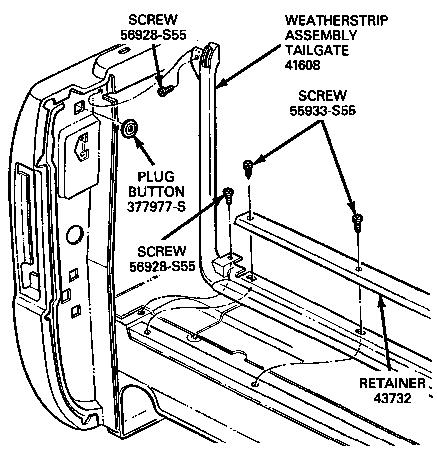

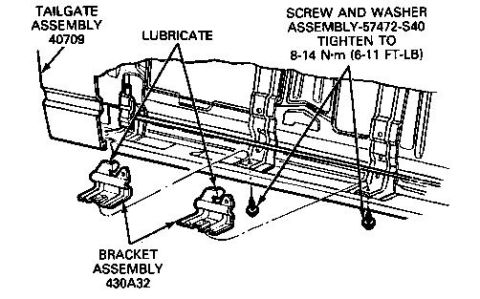

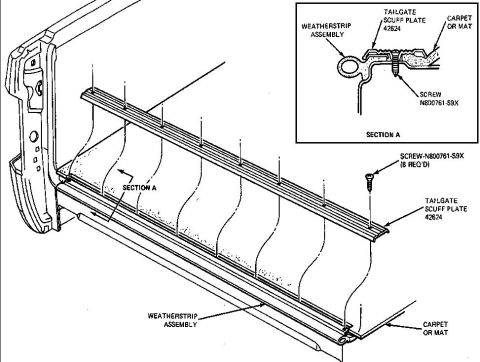

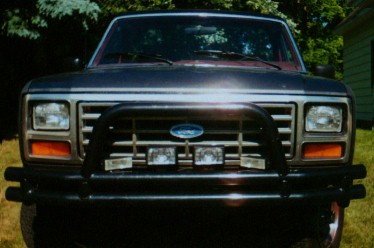

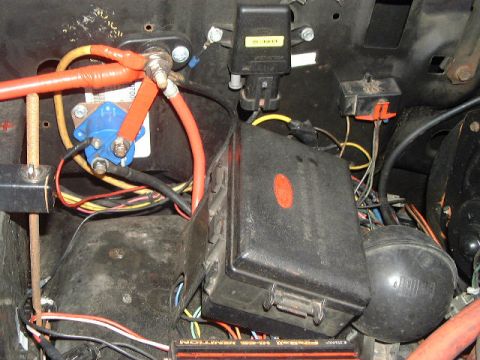

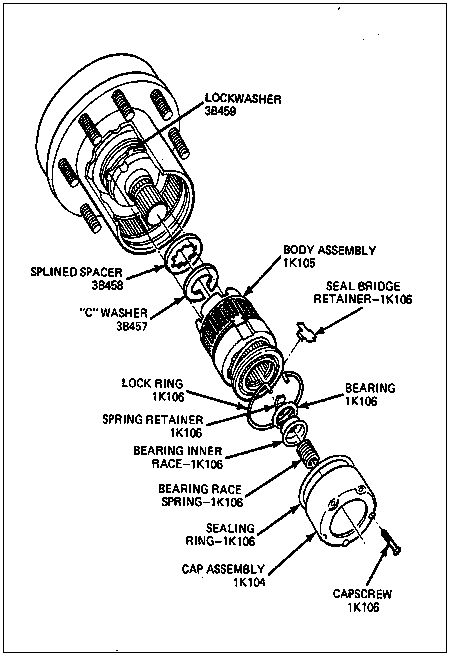

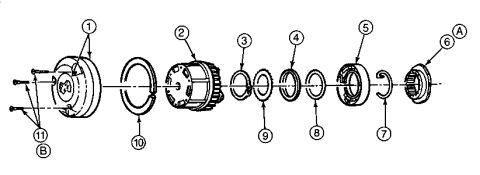

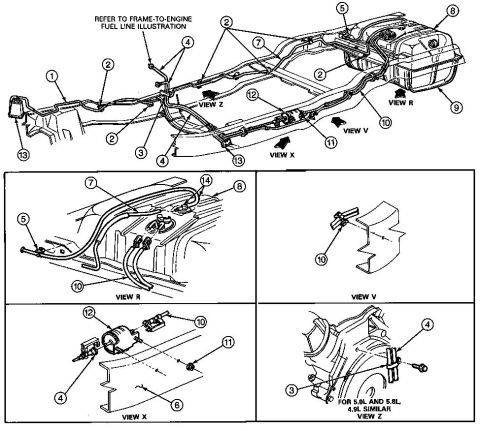

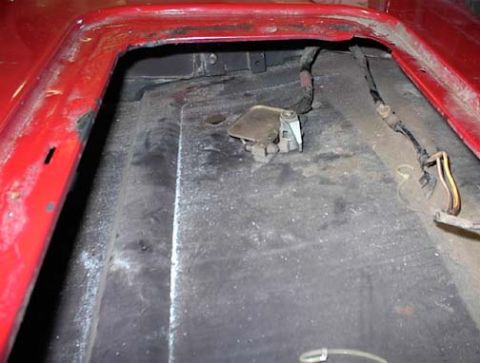

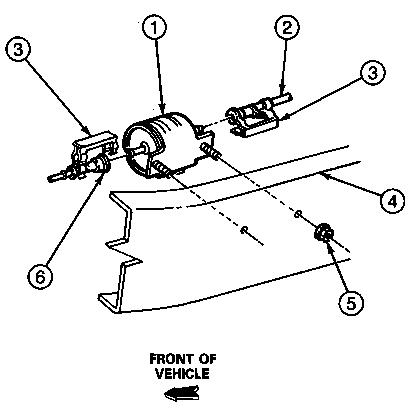

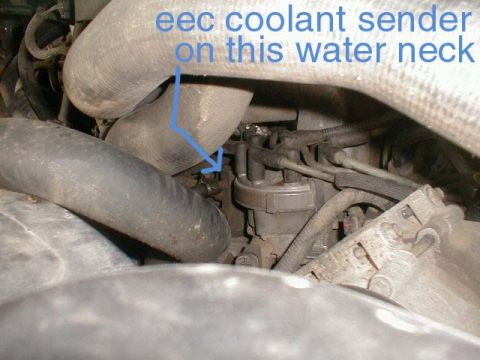

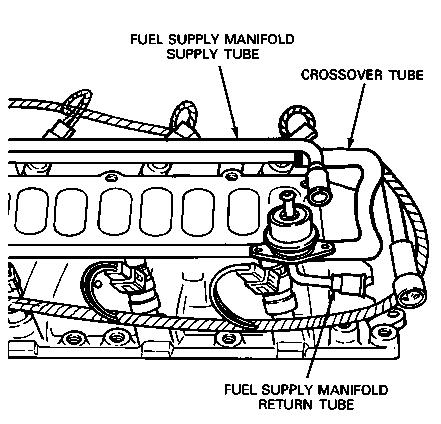

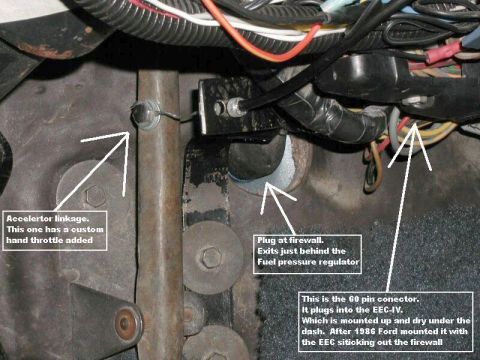

1986 Ford Bronco - One of my distribution blocks. This is the best way to mount multiple heavy gauge wires together. I have a pet peeve of seeing a mass of wi… 1986 Ford Bronco - Fuse panel was taken out of a 1996 F-150; I re-wired it to suit my needs. The EEC self test plugs and MAP sensor are on the passenger side… 1986 Ford Bronco - Battery 1 again. I use a 1G negative cable to the frame. Also seen is my fuse panel (from Yellow 4G) it feed all my trucks power needs. One… 1986 Ford Bronco - Battery 2 behind air filter. 1986 Ford Bronco - 100 WATT High beam 130 WATT Driving 55 WATT Fog = 570 WATT's! 1986 Ford Bronco - 120 VOLT's! Just when you think there are limits. I wired outlets under the pass seat and under the Sub box in the rear 1986 Ford Bronco - Exploded view with Ford part numbers 1986 Ford Bronco - Exploded view with Ford part numbers 1986 Ford Bronco - Exploded view with Ford part numbers 1986 Ford Bronco - Exploded view with Ford part numbers 1986 Ford Bronco - Exploded view with Ford part numbers 1986 Ford Bronco - Support the tailgate while slightly open, and remove the torsion bar retainer from the body. 1986 Ford Bronco - The torsion bar mounts are bolted in from the bottom of the tailgate 1986 Ford Bronco - Hinges mount to the Tailgate on the bottom as well 1986 Ford Bronco - The window is riveted to the slider. Grind or drill VERY CAREFULLY! I've heard rumors that 1/4" x 1 1/4" bolts and nilox nuts can be used a… 1986 Ford Bronco - The regulator has a spring on the back pushing the window up. DO NOT remove motor from regulator while still attached! this will cause the… 1986 Ford Bronco - There are conections behind the drivers side brake light. disconect and slide threw hole towards tailgate. 1986 Ford Bronco - Key swith mounts onto a regular Ford key cylinder. a few clips and it comes off pretty easy. most problems are broken wires, good soilder f… 1986 Ford Bronco - Wiring schematic for window, aplies to 1980 - 1986 Broncos. Ford changed the look and moved the dash switch but it works the same way. 1986 Ford Bronco - You can buy this top of the line fiberglass tailgate from Autofab in CA. Sit down, its $750! 1986 Ford Bronco - This is the 60-pin conector. It plugs into the EEC. Which is mounted up and dry under the dash.. After 1986 Ford mounted the EEC in the kic… 1986 Ford Bronco - Engine Coolant Temp sender. In the lower intake behind the upper radiator hose 1986 Ford Bronco - Here is my research station with my Laptop, books, and articals filed with libray... Okay its my messy basment den! 1986 Ford Bronco - My EFI harness goes in to the firewall between the throttle cable and the fuel pressure regulator. The EEC then mounts under the dash. The… 1986 Ford Bronco - Here is where the EEC mounts under the dash. It is so safe here; no side impact, water under the hood, or underhood heat will ever bother i… 1986 Ford Bronco - This Ford Bronco is parked on a paved surface near a building with a ramp. 1986 Ford Bronco - A black SUV is parked on a concrete surface with a road and buildings in the background. 1986 Ford Bronco - This black SUV is positioned with its front passenger wheel on a curb, displaying its grille and a 3/4 front view. 1986 Ford Bronco - Side view of a 1986 Ford Bronco on a sloped surface near a commercial building. 1986 Ford Bronco - A dark blue Ford Bronco is positioned on a metal ramp outside a building. 1986 Ford Bronco - This black SUV, likely from the 1980s, is parked in front of a building with 'Quality Fire Equipment Company' signage. 1986 Ford Bronco - This 1986 Ford Bronco is shown from a 3/4 front angle. 1986 Ford Bronco - Black 1980s Ford Bronco parked outdoors next to a large covered object. 1986 Ford Bronco - Quad shock set up 1986 Ford Bronco - 4WABS 1986 Ford Bronco - Exploded View of the 1993 Auto Hubs. 1986 Ford Bronco - Exploded View of the 1996 Auto Hubs. 1986 Ford Bronco - Fuelrail with pressure regulator 1986 Ford Bronco - Frame mounted fuel filter 1986 Ford Bronco - Overview of the entire system
