1987 Suzuki Samurai pictures, photos, videos, and sounds

The story

Front Suspension:
Rear 2.5" lift Bonz Eye springs (sprung over)
Custom 1" lift shackle
10" travel short body Blistein 7100 reservoir shocks
Energy Suspension bushings
Frame extended 4"
Axle moved forward 3"

Rear Suspension:
2.5" lift Bonz Eye springs (sprung over)
1.75" Bonz Eye lift shackle
10" travel short body Blistein 7100 reservoir shocks
Energy Suspension bushings

Steering:
PSC 1200XK pump, reservoir & pulley
PSC Suzuki Sidekick ported and tapped steering gear box
1.75" ram
3 loop power steering cooler
Drag link-1.25" o.d. .50 wall DOM tube
Tie rod-1.50" o.d. .250 wall DOM tube
Chevy 3/4 ton TRE's for the drag link
FJ 80 TRE's for the tie rod
Sky steering arms
Trail Tough steering shaft U joint

Rubber & Wheels:
33 X 12.50 X 15 TSL
15 X 8 Allied 32 bolt bead lock wheels with 2.5" back space
100 pounds of water in each tire

Armor:
Full exo cage
Sky diff guards
Belly pan
Steering ram guard
Rock sliders
Rear bumper
Shrockworks gas tank skid plate

Misc:
4" Russel (Toyota) extended braided brake lines front & rear
Optima Yellow top
8K winch
KC's & rock lights
SuperFlow air compressor
Hand throttle
Best top bikini top & R.A.T. top
Corbeau seats
Grant steering wheel
10lbs. CO2 tank
8 Ball shifter (added 15 + bhp) — dogonmut

Day one vs. today

Drag to compare 2006 against 2014.

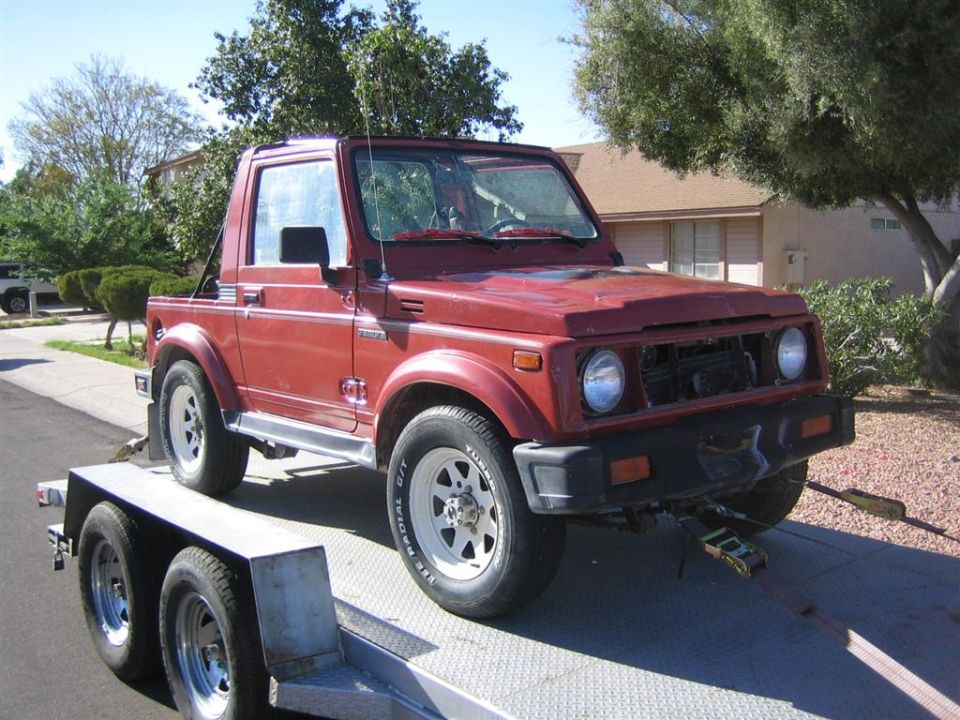

2006 2014

Photo history

367 photos across 8 years — drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2006

91 photos added — showing 8

1987 Suzuki Samurai - This red 1987 Suzuki Samurai is being transported on a trailer.

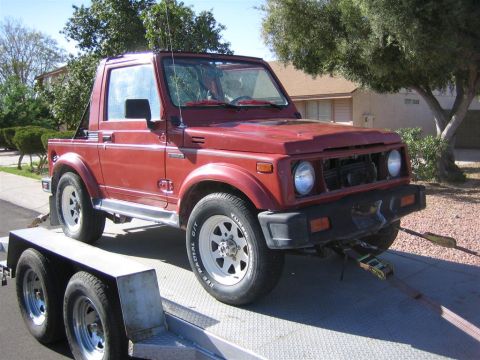

1987 Suzuki Samurai - 1987 Suzuki Samurai being transported on a trailer.

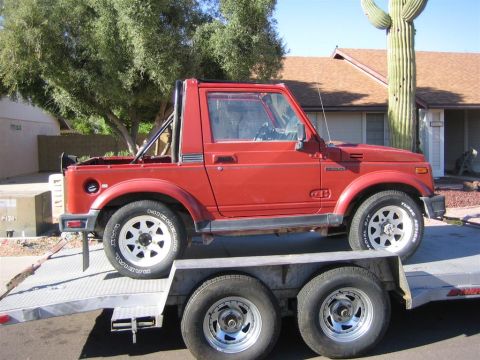

1987 Suzuki Samurai - A red Suzuki Samurai is loaded onto a flatbed trailer, viewed from the side.

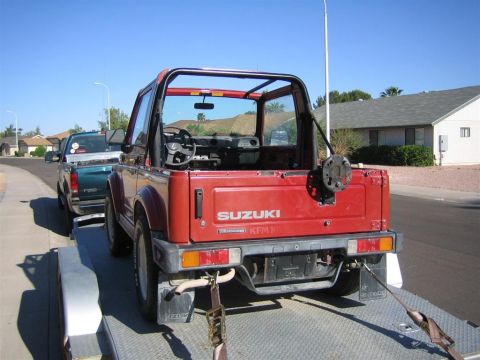

1987 Suzuki Samurai - A red 1987 Suzuki Samurai is seen on a trailer, with another vehicle towed behind it on a sunny day.

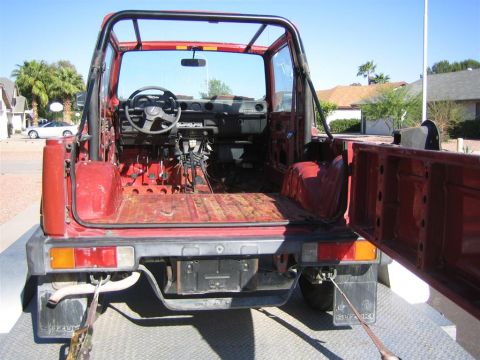

1987 Suzuki Samurai - This red Suzuki Samurai is missing its interior components and appears to be on a trailer.

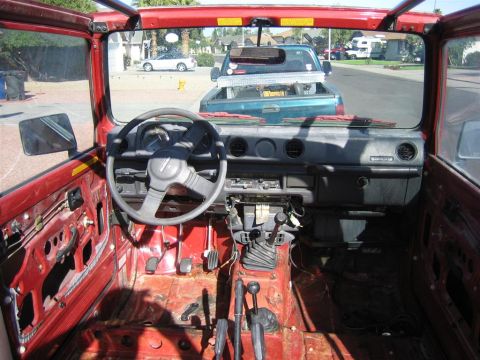

1987 Suzuki Samurai - The interior of a gutted 1987 Suzuki Samurai shows exposed red metal and a manual transmission.

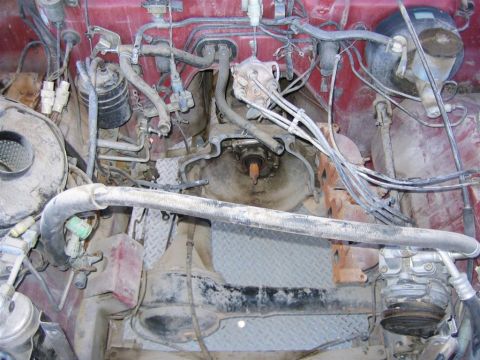

1987 Suzuki Samurai - The engine bay of a vehicle shows exposed mechanical parts, hoses, and wiring, with red paint on the interior.

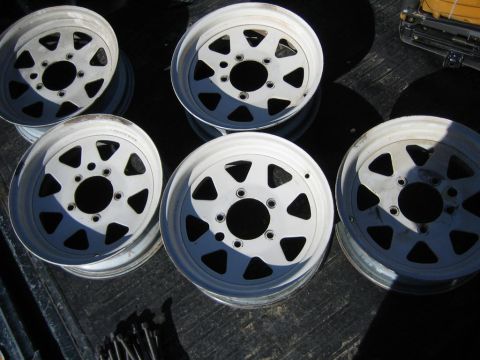

1987 Suzuki Samurai - Set of five white off-road wheels, likely for an SUV or truck, are stacked and ready for installation.

2007

197 photos added — showing 8

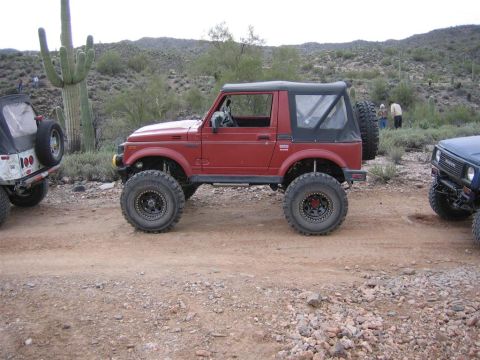

1987 Suzuki Samurai - Modified Suzuki Samurai on a desert trail with other off-road vehicles present.

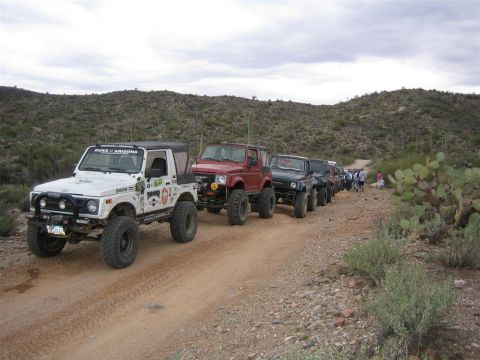

1987 Suzuki Samurai - A convoy of off-road vehicles travels down a dusty desert trail under a cloudy sky.

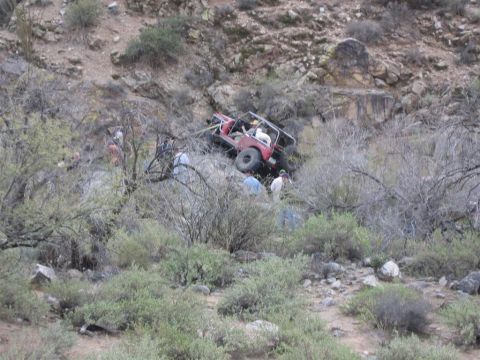

1987 Suzuki Samurai - A red 1987 Suzuki Samurai is stuck on a rocky incline, surrounded by several individuals observing the situation.

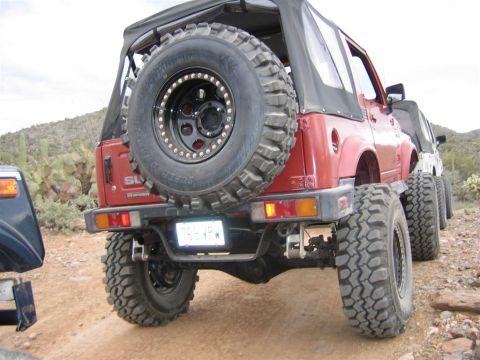

1987 Suzuki Samurai - A red 1987 Suzuki Samurai is seen from the rear, parked with other vehicles in a desert landscape.

1987 Suzuki Samurai - Overcast sky above a vast desert mountain range with sparse vegetation and cacti.

1987 Suzuki Samurai - A wide view of a desert landscape under a cloudy sky, with scrub brush and cacti in the foreground.

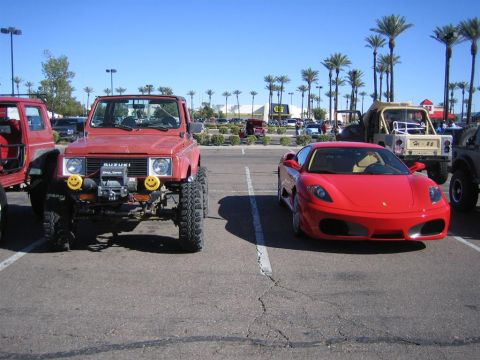

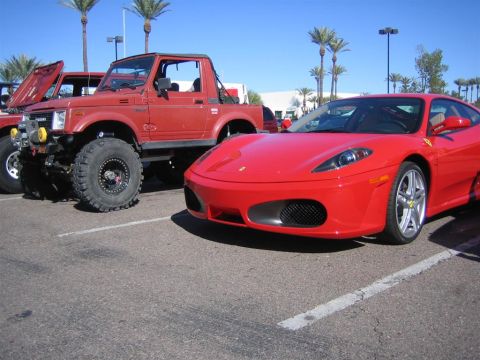

1987 Suzuki Samurai - A red Ferrari and a modified red Suzuki Samurai are parked side-by-side in a lot.

1987 Suzuki Samurai - A modified 1987 Suzuki Samurai with oversized tires and a winch sits parked next to a red Ferrari in a parking lot.

2008

41 photos added — showing 8

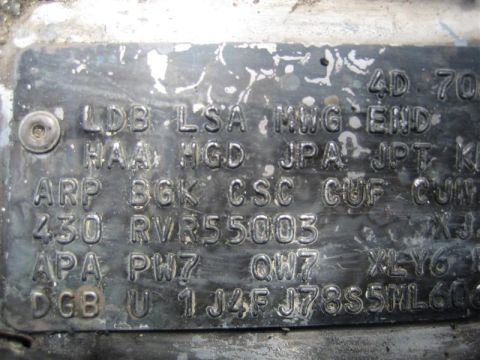

1987 Suzuki Samurai - This VIN plate shows embossed characters and numbers, likely from a vehicle.

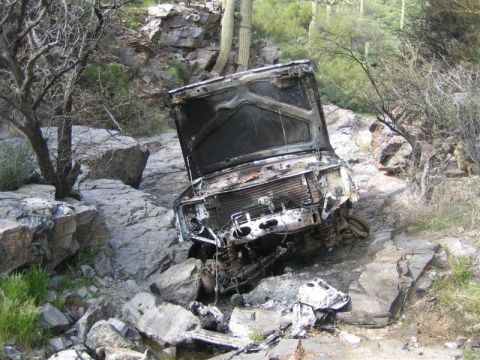

1987 Suzuki Samurai - A severely damaged vehicle sits wrecked in a rocky, desert-like environment.

1987 Suzuki Samurai - A heavily damaged SUV sits in a rocky, outdoor environment, its hood ajar and exterior charred.

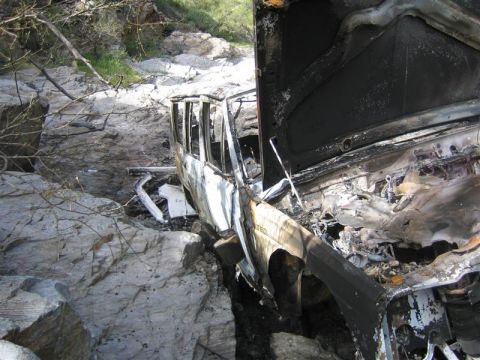

1987 Suzuki Samurai - This 1987 Suzuki Samurai appears to have been in a fire and is now situated in a rocky area.

1987 Suzuki Samurai - A heavily damaged and burned SUV is lodged precariously among rocks and trees.

1987 Suzuki Samurai - Wreckage of a heavily damaged SUV is visible on a rocky incline, showing extensive fire damage.

1987 Suzuki Samurai - Lug nuts are visible amidst the debris and ash of a burnt area.

2009

20 photos added — showing 8

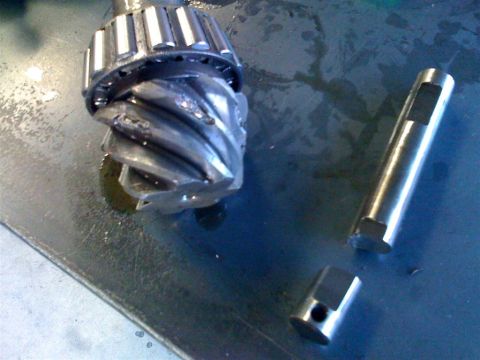

1987 Suzuki Samurai - Close-up of a differential pinion gear and bearing assembly, with a separate shaft component.

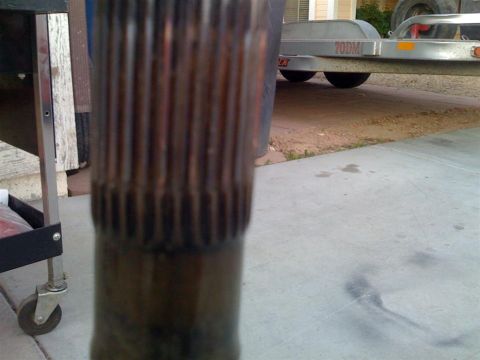

1987 Suzuki Samurai - A close-up view of a splined shaft, with a trailer and a house visible in the background.

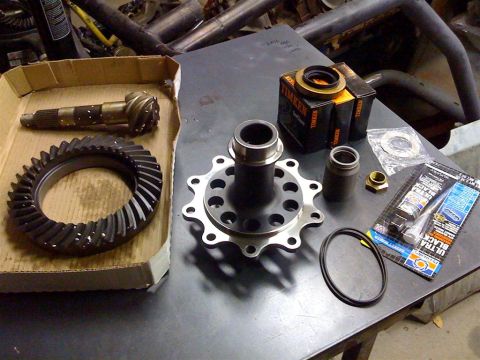

1987 Suzuki Samurai - Differential components including a ring and pinion gear set, carrier, and Timken bearings are laid out on a metal surface.

2010

2 photos added

1987 Suzuki Samurai - Men gathered around a red vehicle in a dry, hilly area.

2011

5 photos added

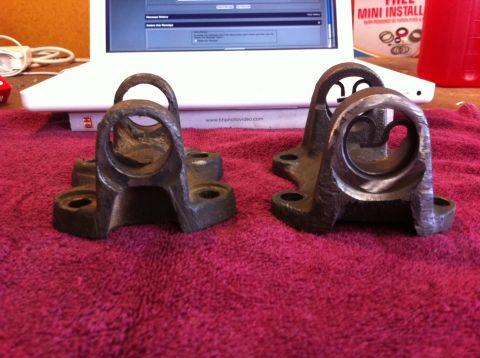

1987 Suzuki Samurai - Two u-joint bearing caps are shown on a red cloth, with a laptop and bottle in the background.

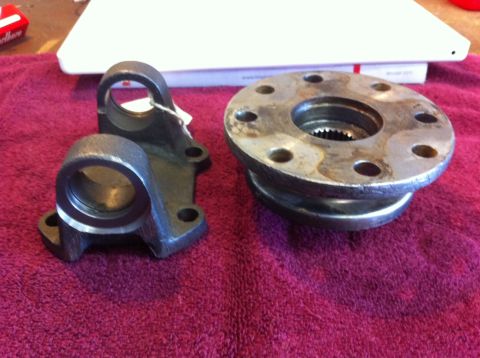

1987 Suzuki Samurai - Close-up of two driveshaft U-joint parts, likely for repair or replacement.

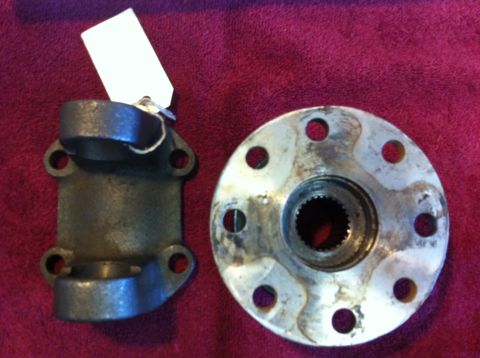

1987 Suzuki Samurai - Two automotive drivetrain components, a U-joint yoke and a flange, are displayed on a red surface.

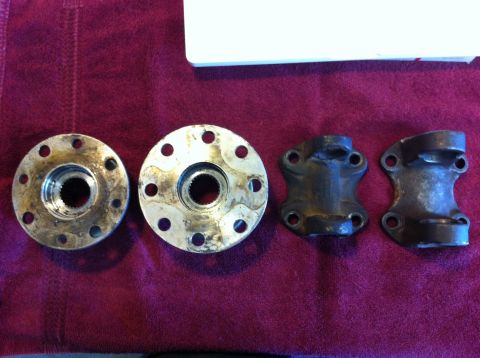

1987 Suzuki Samurai - Four automotive U-joint and flange components are laid out on a red cloth surface.

1987 Suzuki Samurai - A grand fountain is illuminated at night, with water flowing from statues and multiple tiers.

2013

7 photos added

1987 Suzuki Samurai - Diagram shows a diagnostic connector with terminals labeled for A/F duty check, diagnosis switch, ground, and test switch.

1987 Suzuki Samurai - Wiring diagram for an engine control module connector, detailing pin assignments and wire functions.

1987 Suzuki Samurai - This document details the wiring for an Engine Control Module connector, listing pin assignments and circuit functions.

1987 Suzuki Samurai - This document details wiring connections and circuits, referencing a Suzuki Samurai.

1987 Suzuki Samurai - This document displays a wiring diagram with various sections including distributor, ignition, and engine sensors.

1987 Suzuki Samurai - A gray metal fuel tank is shown with various lines labeled for its components.

1987 Suzuki Samurai - This differential gear set shows significant damage to the teeth, indicating a failure.

2014

3 photos added

1987 Suzuki Samurai - A Fram G3499 gasoline filter is shown with its part number and flow direction clearly visible.

1987 Suzuki Samurai - This Mityvac brake bleeder kit includes a vacuum gauge and multiple adapters for various automotive applications.

1987 Suzuki Samurai - This is a fuel pump kit, not a 1987 Suzuki Samurai.
