1985 Ford Bronco “Converted”
Home/ Registry/ Ford/ Bronco/ 1980–1986/ “Converted” supermotors.net/registry/1004

“Converted”1985 Ford Bronco

25 photos documented since 2003 ♡ Follow this build

The story

* Maximum Cooling Radiator
* R134a Converted A/C (Details in Pics section)
* 33x12.50x15
* 3" body lift
* Poineer DEH-445 High Power Super Tuner / CD
* Audiovox 400W Amp
* Hi-Lift 48" Cast Jack

------- Wish List -------
- Jacobs Off-Road ignition system
- Detroit or ARB locker out back
- Winch in Front
- 2" suspension Lift, New coils and Camber Adjusters
in front and shackle inversion in back.
- Raise gas tank to top of cross member +/- 3"
- Raise Bumpers to stock location (vs. Body)
- Raise Class V Hitch to Frame top web.
- Paint Job and minor rust repair
- If I get a commuter vehicle 4.11 or 4.56 gears + 35" tires — David Lithgow

Photos

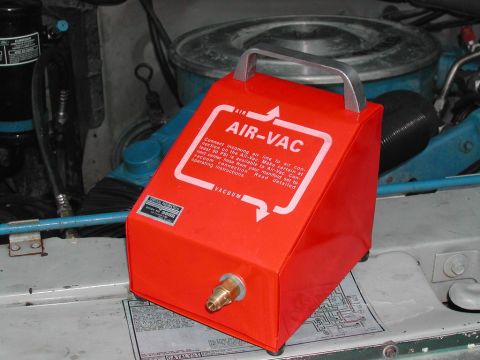

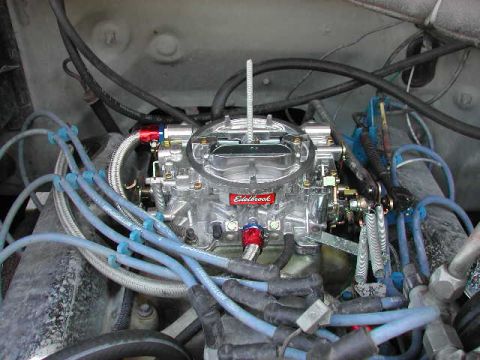

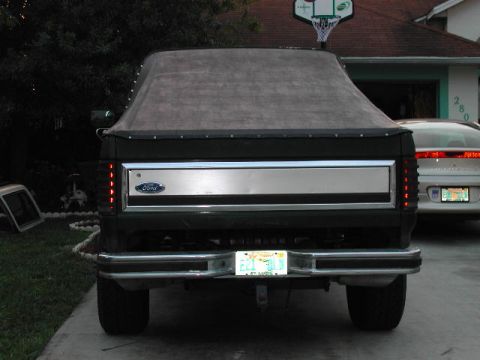

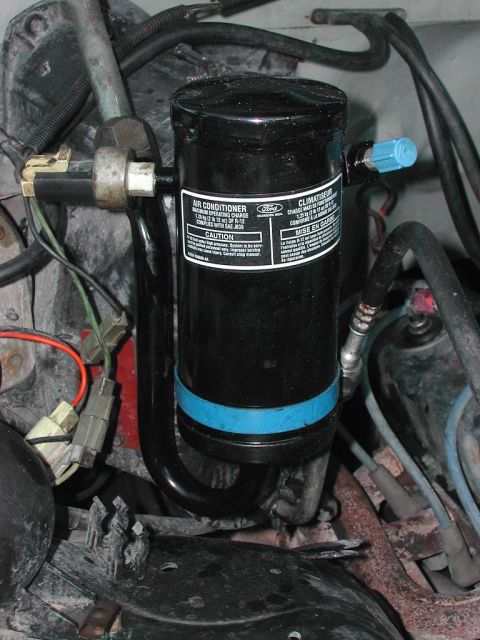

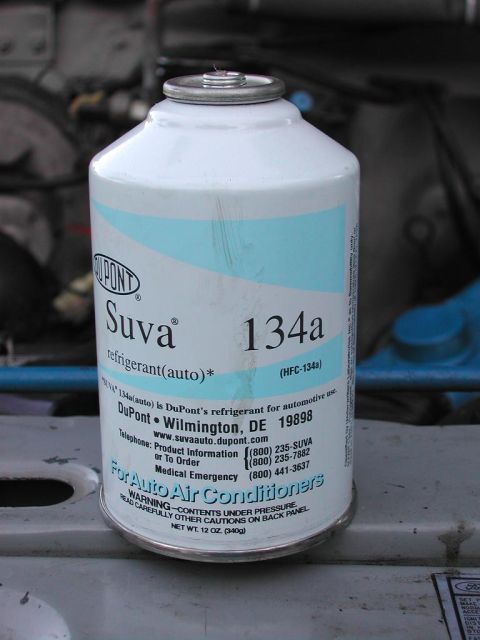

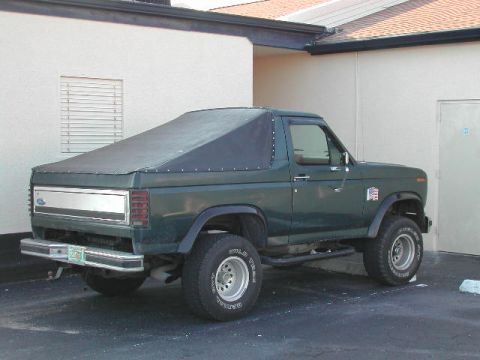

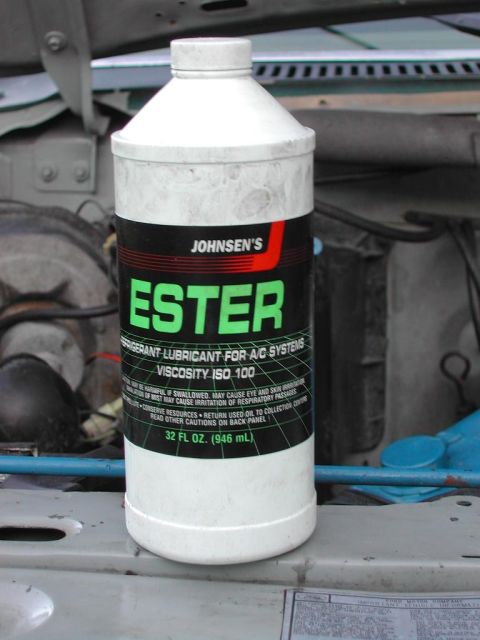

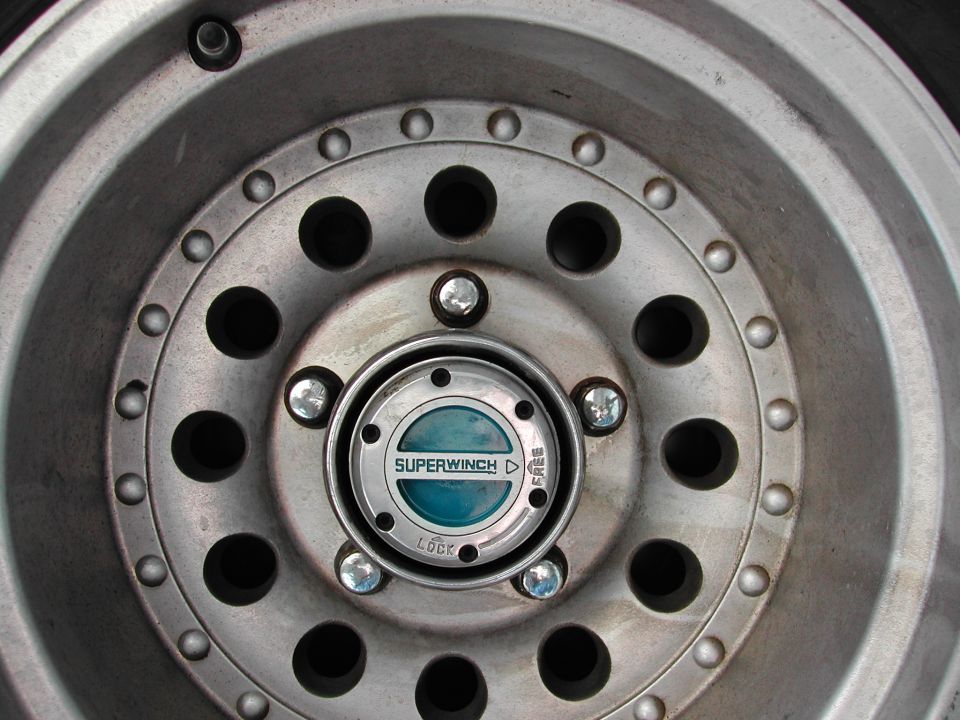

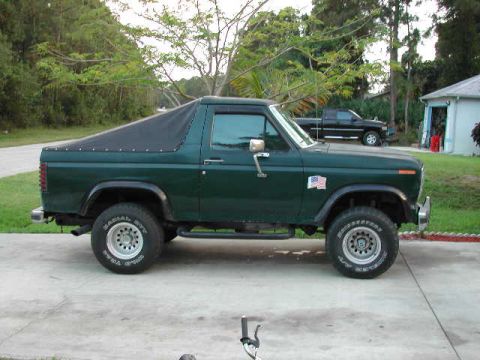

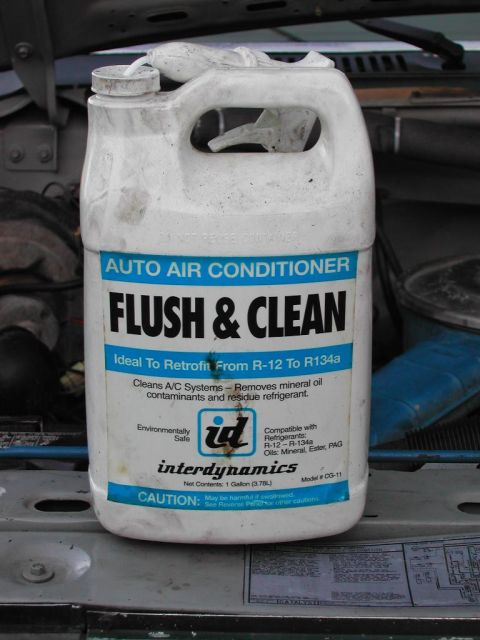

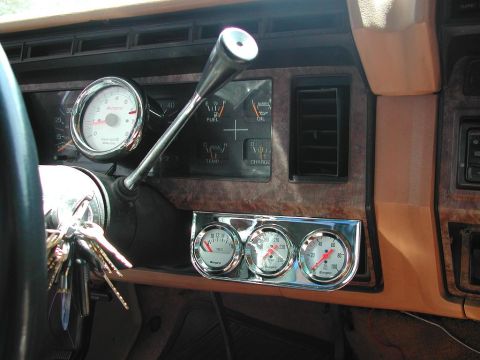

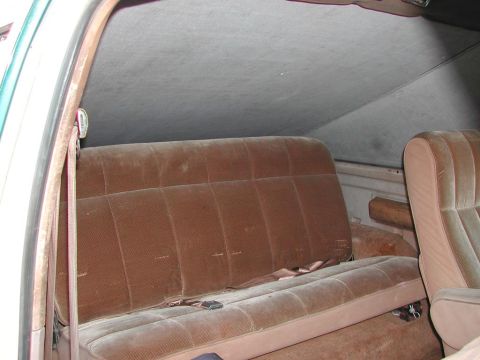

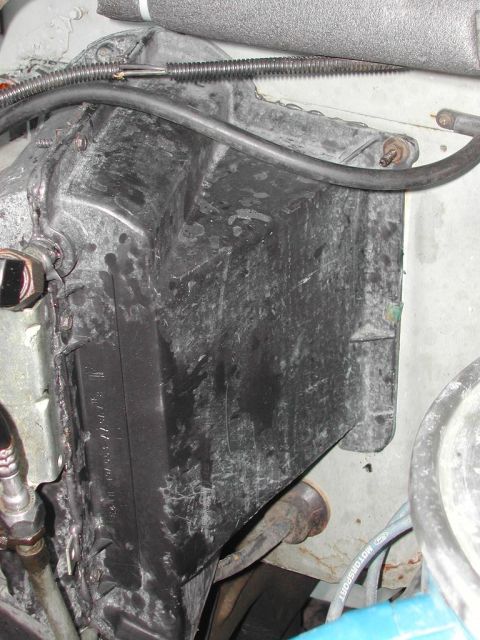

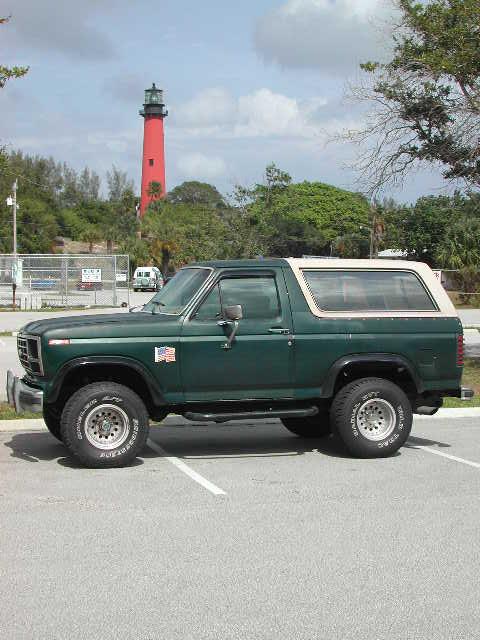

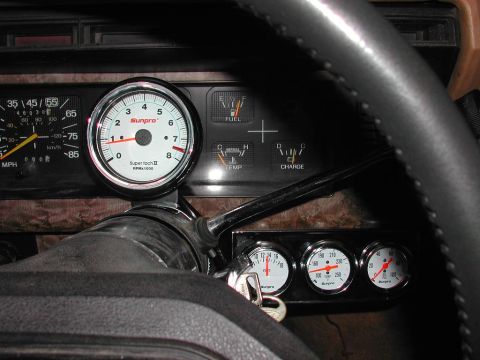

1985 Ford Bronco - SuperWinch Manual Locking Hubs 1985 Ford Bronco - Fast Back Soft Top 1985 Ford Bronco - Side View 1985 Ford Bronco - Rear View (Gotta use those side mirrors) 1985 Ford Bronco - Interior head room with soft top 1985 Ford Bronco - Jupiter Light House 1985 Ford Bronco - Flush & Clean In my case the compressor had been off since I bought the Bronco so I didn't have any old R12 to get rid of. From what I'm to… 1985 Ford Bronco - Now you can install the condensor and the evaporator coils back into the truck. You can also install the compressor (rebuilt $199.95) . Bef… 1985 Ford Bronco - Evaporator Housing 1985 Ford Bronco - I left the old accumulator in place for the next step. Evacuation. I used the Harbor Freight vacuum pump ($19.99) to pump down the system.… 1985 Ford Bronco - Now I put the new accumulator ($49.99) on and also the new orifice tube ($2.95) in the bottom tube of the evaporator. Next I checked all th… 1985 Ford Bronco - I ran the vacuum with both guage set valves open for 30min. Now close both valves and remove the vac pump. Connect a R134a source to the ye… 1985 Ford Bronco - Sunpro Tach & Guages 1985 Ford Bronco - Guages 1985 Ford Bronco - Sittin' Pretty 1985 Ford Bronco - I had to extend fuel line to right side and extend PCV to front of carb 1985 Ford Bronco - The throttle cable bracket had to move about an inch towards the drivers side to line up with the Ford kickdown linkage adapter (P/N 1483) 1985 Ford Bronco - This pic shows the Ford adapter (Edelbrock #1483) 1985 Ford Bronco - Side view of the throttle and kickdown connections 1985 Ford Bronco - Bumper sitting at stock height on frame but 3" low on body 1985 Ford Bronco - Body lines should line up with bumper 1985 Ford Bronco - Approach angle will get a little better 1985 Ford Bronco - Close up side view. Thank you Ford engineers for the convenient cup holder 1985 Ford Bronco - 12 ton central machinery (Harbor Freight) shop press. 1985 Ford Bronco - 20 Gal Harbor Freight parts washer (& a couple repair manuals)
